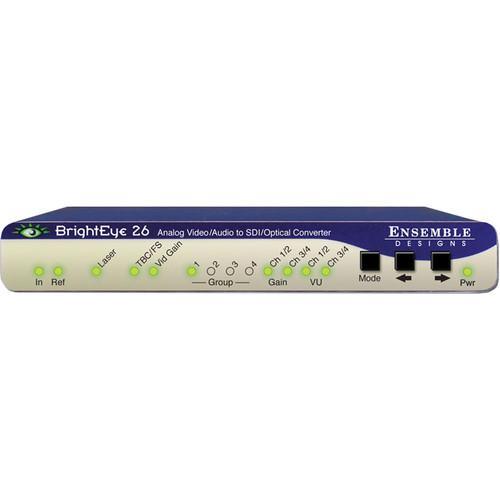

Product description The Ensemble Design BrightEye 26 is an analog video and audio to SDI and optical audio converter. This device will accept composite video and balanced audio and output SDI video with embedded audio and digital audio on an optical connector. It features TBC and frame-sync capabilities. Note: Power Supply Purchased Separately - TBC and Frame-Sync
- A TBC/Frame Sync is a standard feature and allows this BrightEye to work with any sort of video input. Great for broadcast and desktop applications, BrightEye 26 can be used with sources such as VTRs and incoming satellite feeds.
- Audio Capability
- Analog audio is embedded in the SDI video signal and converted to digital audio and output via an optical connection.
- Adjustable
- The audio is converted to digital and then it passes through the built-in four channel mixer with shuffle and level control.
- Remote
- This device can be controlled by a PC or Mac computer with software and USB connectivity.
In the Box Ensemble Designs BrightEye 26 Analog Video and Audio to SDI and Optical Converter - SDI, Analog Audio, TBC and Embedder, BNC, Optical and Multipin Connections Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ensemble Designs BrightEye 26 Analog Video and Audio to SDI and Optical Converter - SDI, Analog Audio, TBC and Embedder, BNC, Optical and Multipin Connections in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEnsemble Designs BrightEye 26 Specs | Input | Composite Video, PAL or NTSC, 1 Vpp @ 75 ohms, on a BNC connector
Balanced Analog Audio x4, @ 30 ohms, on a mulitpin connector
PC or Mac Connectivity, on a USB connector
Reference Video, on a BNC connector | | Output | SDI Video x2, SMPTE 259, with embedded audio, on BNC connectors
PC or Mac Connectivity, on a USB connector
Digital Audio, SMPTE, on an SC optical connector | | Processes | Composite Video Conversion to SDI Video
Embedding Analog Audio on an SDI Digital Video Signal Stream
TBC and Frame Sync
Analog Audio to Digital Audio on an Optical Connection | | Control | Front Panel or Remote Computer Via USB:
Embed
NTSC or PAL
Audio Mixer Adjustment
Channel Selection
Video Proc-Amp | | Power Source | 12 VDC from an external power source (not included) | | Dimensions (WxHxD) | 5.625 x 0.8 x 5.5"
14.3 x 2 x 14cm | | Weight | Not Specified by Manufacturer | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 8.7 x 7.9 x 2.4" |
