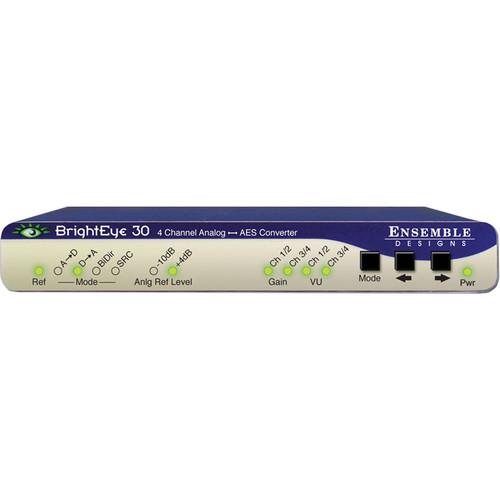

Product description The BrightEye 30 Audio ADC and DAC Converter from Ensemble Designs is a device that can be configured as a two or four-channel converter for ADC and DAC. As a bi-directional unit it converts two channels of analog audio to AES digital with a parallel stream converted into (2) channels of analog audio. As a four-channel unit, AES can be converted to analog audio and vice versa. It is an ideal solution for desktop, post-production and broadcast applications.
The converter's 24-bit processing ensures high quality audio. Its reference input allows digital outputs to be synchronized to a PAL or NTSC video signal or AES reference. A variety of separate audio connectors and adapters are also available for this unit, allowing integration with a wide array of audio systems. An optional audio delay can also be obtained for this unit upon request.
Front-panel controls allow you to adjust many parameters. Moreover, audio mixing, level adjustments, and channel shuffling can be controlled through the BrightEye software package that is included with the unit and compatible with both Windows and Mac platforms. Note: Please note that a power supply is not included with the unit and must be purchased separately. - ADC & DAC Conversion
- Use this device as a two or four-channel converter for ADC and DAC.
- Controls
- The unit can be controlled through the push buttons on the converter's faceplate or through the proprietary software package included with the unit.
- OS Compatibility
- The converter will work on both Windows and Mac operating systems.
- 24-Bit Processing
- The unit's 24-bit processing ensures high quality audio.
In the Box Ensemble Designs BrightEye 30 Audio ADC and DAC Converter Converter Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ensemble Designs BrightEye 30 Audio ADC and DAC Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEnsemble Designs 30 Specs | Construction | Metal, plastic | | Finish | Blue, silver | | Inputs | ANALOG AUDIO OUTPUTS
Quantity: x4 (selectable as inputs or outputs)
Type: balanced, without transformer
Impedance: 30Ω
Maximum output level: 24dBu
Resolution: 24 bits, 128X over-sampled
Reference level: -10dBu or +4dBu
Frequency response: ±0.1dB, 20Hz to 20KHz
Crosstalk: <106dB
Dynamic range: >106 dBAES/EBU DIGITAL OUTPUTS
Quantity: x2 (total of four channels, selectable as inputs or outputs)
Type: AES3id
Connector: coaxial, 75Ω
Bit depth: 24 bit
Sample rate:
48KHz
Synchronous to video output
Reference level: -18 or -20dBFS (selectable) | | Outputs | ANALOG AUDIO OUTPUTS
Quantity: x4 (selectable as inputs or outputs)
Type: balanced, without transformer
Impedance: 30Ω
Maximum output level: 24dBu
Resolution: 24 bits, 128X over-sampled
Reference level: -10dBu or +4dBu
Frequency response: ±0.1dB, 20Hz to 20KHz
Crosstalk: <106dB
Dynamic range: >106 dB AES/EBU DIGITAL OUTPUTS
Quantity: x2 (total of four channels, (selectable as inputs or outputs)
Type: AES3id
Connector: coaxial, 75Ω
Bit depth: 24 bit
Sample rate:
48KHz
Synchronous to video output
Reference level: -18 or -20dBFS (selectable) | | Power | 12V, 7W
*100 to 230VAC modular power supply not included | | Dimensions (HxWxD) | 0.8 x 5.625 x 5.5" ( 20 x 143 x 140mm) | | Weight | Not specified by manufacturer | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 8.8 x 7.9 x 2.5" |
