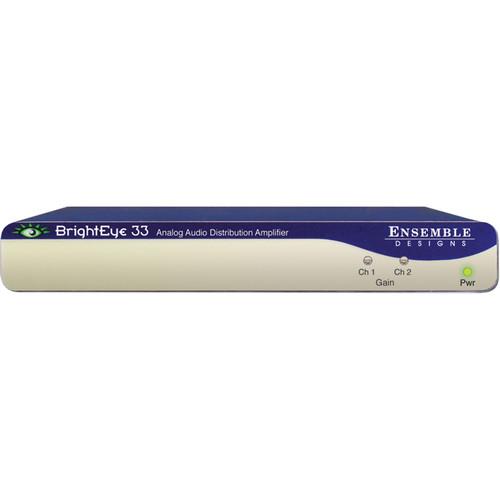

User Manual for Ensemble Designs BrightEye 33 Analog Audio Distribution Amplifier Click to enlarge the picture
Contents of the user manual for the Ensemble Designs BrightEye 33 Analog Audio
- Product category: Distribution Amplifiers (DA's) Ensemble Designs
- Brand: Ensemble Designs
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ensemble Designs Distribution Amplifiers (DA's)
|
User manual for the Ensemble Designs BrightEye 33 Analog Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ensemble Designs product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ensemble Designs user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ensemble Designs product will considerably shorten its lifespan!
|
Product description The BrightEye 33 Analog Audio Distribution Amplifier from Ensemble Designs is designed for use in broadcast- and recording-industry applications. It is designed to provide excellent response, noise, and distortion specifications. It functions with either 8 mono outputs or 4 stereo outputs. Gain adjustments are accessed from the front panel. This device features no USB port and or interface to BrightEye Mac or PC software. - Analog audio distribution amplifier for broadcast and post
- 8 mono outputs or 4 stereo outputs
- Gain adjustments from the front panel
In the Box Ensemble Designs BrightEye 33 Analog Audio Distribution Amplifier Five-Year Warranty Against Defects In Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the Ensemble Designs BrightEye 33 Analog Audio Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEnsemble Designs BE33 BE33 Specs | Inputs | Number: two
Type: balanced
Impedance: >15 kOhms
Maximum Input Level: 24dBu
CMRR: >60dB, 20Hz to 10KHz | | Outputs | Number: four stereo or eight mono
Type: balanced, transformerless
Impedance: 30 Ohms
Maximum Output Level: 24dBu | | Performance | Gain Range: +/-6 dB
Frequency Response: <+/-0.1 dB, 20Hz to 20KHz
Isolation: >100dB
S/N Ratio: >100dB, unweighted | | Power | 12V, 4W (100 to 230VAC modular power supply not included) | | Dimensions (HxWxD) | 0.8 x 5.625 x 5.5" ( 20 x 143 x 140mm) | | Weight | Not specified by manufacturer | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 9.0 x 8.0 x 2.5" |
