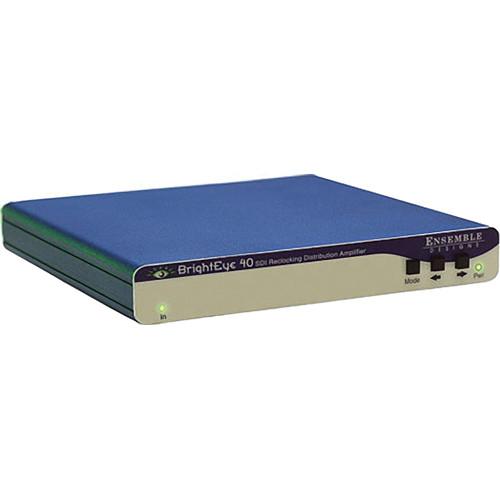

Product description The BrightEye 40 SDI Reclocking Distribution Amplifier from Ensemble Designs is a reclocking serial digital-video distribution amplifier. It automatically equalizes up to 984 ft of digital cable and reclocks the signal before delivering it to (4) simultaneous outputs. This unit is well suited for use with other BrightEye products to form integrated solutions.
Front panel indicators show the presence of an input signal and power. The unit features no USB port, nor any interface for BrightEye Windows or Mac software. Note: Please note that a power supply is not included with the unit and must be purchased separately. - Distribution Amplifier for SDI
- Use this reclocking serial digital-video distribution amplifier to equalize your signal and distribute it on (4) simultaneous outputs.
- Integration
- The unit is ideal for use with other BrightEye converters when multiple outputs are needed.
- Indicators

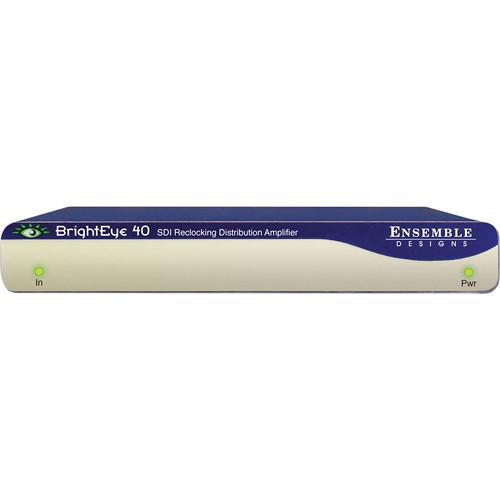

- Front panel indicators show the presence of an input signal and power.
In the Box Ensemble Designs BrightEye 40 SDI Reclocking Distribution Amplifier Distribution Amplifier Five-Year Warranty Against Defects in Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the Ensemble Designs BrightEye 40 SDI Reclocking Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEnsemble Designs BE40 40 Specs | Construction | Metal, plastic | | Finish | Blue, silver | | Inputs | SERIAL INPUT
Quantity: x1
Signal type: 270Mb/s SD serial digital (SMPTE 259M)
Impedance: 75 Ohms
Return loss: >15dB

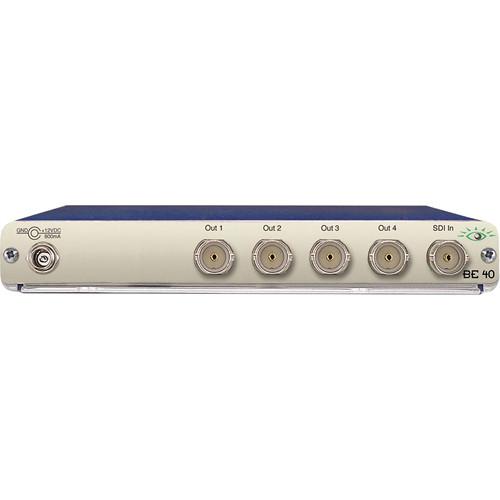

Maximum cable length: 984 ft (300m) | | Outputs | SERIAL OUTPUT
Quantity: x4
Signal type: serial digital (SMPTE 259M)
Impedance: 75 Ohms
Return loss: >15dB
Output DC: none (AC coupled) | | Power | 12V, 7W
*100 to 230VAC modular power supply not included | | Dimensions (HxWxD) | 0.8 x 5.625 x 5.5" ( 20 x 143 x 140mm) | | Weight | Not specified by manufacturer | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 8.7 x 7.9 x 2.4" |
