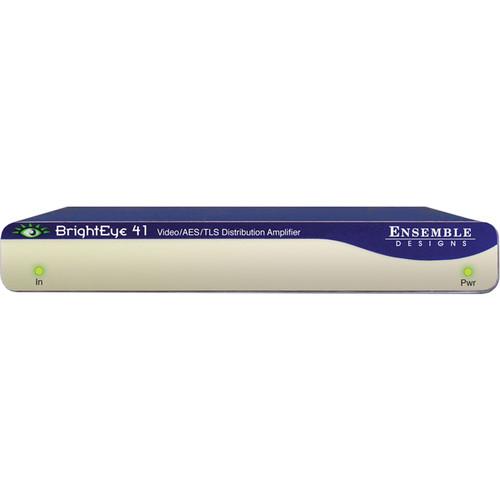

User Manual for Ensemble Designs BrightEye 41 Video, AES & Tri-Level Sync Distribution Amplifier Click to enlarge the picture
Contents of the user manual for the Ensemble Designs BrightEye 41 Video, AES
- Product category: Distribution Amplifiers (DA's) Ensemble Designs
- Brand: Ensemble Designs
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ensemble Designs Distribution Amplifiers (DA's)
|
User manual for the Ensemble Designs BrightEye 41 Video, AES contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ensemble Designs product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ensemble Designs user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ensemble Designs product will considerably shorten its lifespan!
|
Product description The BrightEye 41 Video, AES & Tri-Level Sync Distribution Amplifier from Ensemble Designs is a distribution amplifier that accepts analog video, AES digital audio, and HD tri-level sync signals and distribute them to (4) outputs. The unit provides unity gain fan out over a frequency range of DC to 10Mhz. It is ideal for use with other BrightEye converters when multiple outputs are needed.
Front panel indicators show the presence of an input signal and power. The unit features no USB port, nor any interface for BrightEye Windows or Mac software. Note: Please note that a power supply is not included with the unit and must be purchased separately. - Distribution Amplifier for Analog Video, AES Audio, and HD Tri-Level Sync
- This distribution amplifier accepts analog video, AES digital audio, and HD tri-level sync signals.
- Integration
- The unit is ideal for use with other BrightEye converters when multiple outputs are needed.
- Indicators
- Front panel indicators show the presence of an input signal and power.
In the Box Ensemble Designs BrightEye 41 Video, AES & Tri-Level Sync Distribution Amplifier Distribution Amplifier Five-Year Warranty Against Defects In Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the Ensemble Designs BrightEye 41 Video, AES & Tri-Level Sync Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEnsemble Designs BrightEye 41 BE41 Specs | Construction | Metal, plastic | | Finish | Blue, silver | | Inputs | Quantity: x1, terminating
Signal type:
NTSC/525, PAL/625
Composite video
AES digital audio or HD tri-level sync
Impedance: 75Ω
Return loss: >40dB to 5MHz | | Outputs | Quantity: x4
Signal type: follows input
Impedance: 75Ω
Return loss: >40dB to 5MHz
DC offset: follows input +/- 50mV
Delay: 10ns (14° NTSC, 17° PAL)
Frequency response:
±0.1dB, 0 to 5.5MHz
±0.3dB, 0 to 10MHz
Signal to noise: 68dB
K Factor: 2T Pulse <0.25%
Differential phase: 10-90% apl <0.1°
Differential gain: 10-90% apl <0.15%
Gain stability:
<0.2dB variation over operating temperature | | Power | 12V, 7W
*100 to 230VAC modular power supply not included | | Dimensions (HxWxD) | 0.8 x 5.625 x 5.5" ( 20 x 143 x 140mm) | | Weight | Not specified by manufacturer | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 9.0 x 8.0 x 2.5" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 26 owners. Add your rating and experience with the product.
