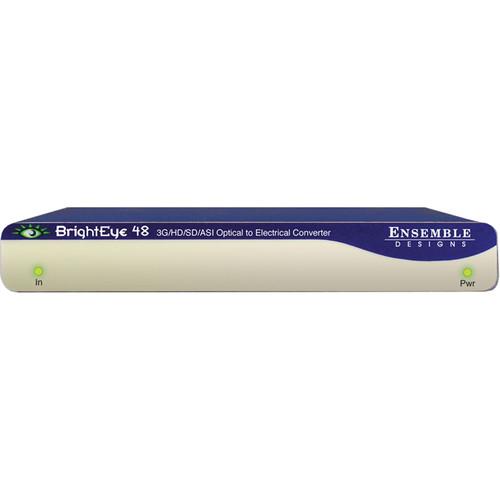

User Manual for Ensemble Designs BrightEye 48 3G HD SD ASI Optical to Electrical Converter Click to enlarge the picture
Contents of the user manual for the Ensemble Designs BrightEye 48 3G HD
- Product category: Signal Converters Ensemble Designs
- Brand: Ensemble Designs
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ensemble Designs Signal Converters
|
User manual for the Ensemble Designs BrightEye 48 3G HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ensemble Designs product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ensemble Designs user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ensemble Designs product will considerably shorten its lifespan!
|
Product description The BrightEye 48 3G/HD/SD/ASI Optical to Electrical Converter from Ensemble Designs is an optical receiver and distribution amplifier that can be used with standard-definition signals, 3Gbps & 1.5Gbps high-definition signals, or ASI signals.
The optical input is converted to electrical form and the resulting serial digital signal is reclocked and delivered to BNC outputs. Providing six electrical outputs, the BrightEye 48 also serves as a distribution amplifier.
Front panel indicators show the presence of an input signal and power. The unit does not feature a USB port nor any interface for BrightEye Windows or Mac software. Note: Please note that a power supply is not included with the unit and must be purchased separately. - Converter & Distribution Amplifier for HD, SD & ASI Signals
- This unit is an optical-to-electrical converter and distribution amplifier that can be used with high-definition, standard-definition, and ASI signals.
- Transmission Distance
- The electrical output can drive a single-mode fiber up to 12.42 miles (20km).
- Indicators
- Front panel indicators show the presence of an input signal and power.
In the Box Ensemble Designs BrightEye 48 3G/HD/SD/ASI Optical to Electrical Converter Converter/Distribution Amplifier Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ensemble Designs BrightEye 48 3G HD SD ASI Optical to Electrical Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEnsemble Designs BrightEye 48 Specs | Inputs | SERIAL DIGITAL INPUT
Quantity: x1
Signal type:
270Mbps SD serial digital (SMPTE 259M)
1.485Gbps HD serial digital (SMPTE 274M, 292M, or 296M)
2.97Gbps HD Serial Digital (SMPTE 424M, 425M)
Impedance: 75Ω
Return loss:
>15 dB for 270Mbps
>15 dB for 1.485Gbps
>10 dB for 2.97Gbps
Maximum cable length:
984' (300m) for 270Mbps
328' (100m) for 1.485Gbps
393' (120m) for 1.485Gbps | | Outputs | SERIAL DIGITAL OUTPUT
Quantity: x6
Signal type:
3G/HD/SD/ASI serial digital, follows input
Impedance: 75Ω
Return loss: >15dB
Output: DC none (AC coupled) OPTICAL OUTPUT
Quantity: x1
Type:
SD and ASI (SMPTE 297M, optical equivalent of 259M)
1.485Gbps HD (SMPTE 274M, 292M, or 296M)
2.97Gbps HD (SMPTE 424M, 425M)
Wavelength: 1310nm (1550 by special order)
Power: -7dBm
Maximum cable length: 12.42 miles (20km)
Fiber type:
Single-mode
Multi-mode compatible with 8 dB attenuation at transmit end
Connector: LC/UCP | | Power | 12V, 7W
*100 to 230VAC modular power supply not included | | Dimensions (HxWxD) | 0.8 x 5.63 x 5.5" (20 x 143 x 140mm) | | Weight | Not specified by manufacturer | | | | Package Weight | 2.55 lb | | Box Dimensions (LxWxH) | 8.8 x 7.9 x 4.9" |
