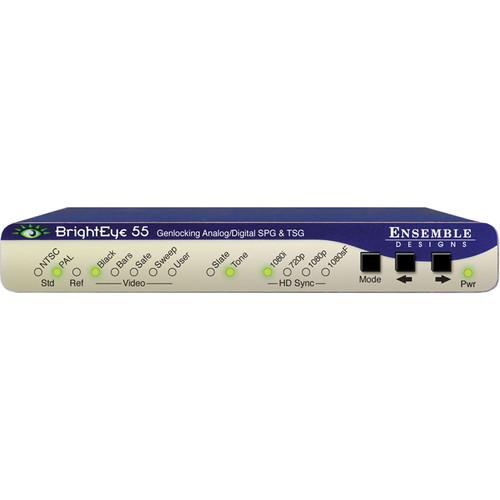

User Manual for Ensemble Designs BrightEye 55 Genlock Sync Generator & Test-Signal Generator Click to enlarge the picture
Contents of the user manual for the Ensemble Designs BrightEye 55 Genlock Sync
- Product category: Test Equipment Ensemble Designs
- Brand: Ensemble Designs
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ensemble Designs Test Equipment
|
User manual for the Ensemble Designs BrightEye 55 Genlock Sync contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ensemble Designs product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ensemble Designs user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ensemble Designs product will considerably shorten its lifespan!
|
Product description The BrightEye 55 Genlock Sync Generator & Test-Signal Generator from Ensemble Designs is a sync generator and test signal generator that can be used as a slave or master reference generator. The unit can lock to a house reference signal or its own internal precision standard. It features an HD tri-level sync output, which provides reference to high-definition equipment such as VTRs, disc recorders and workstations. Format options includes 720p, 1080i, 1080sF, and 1080p.
The unit's SDI and analog composite outputs feature a number of signals, including but not limited to: color black, bars, crosshatch, multiburst, and SDI checkfield (pathological) signals. An ID slate with user programmable text can overlay test patterns. The generator also includes a Cyclops features that adds a motion element to the video test signal, a feature well suited to live applications. Audio functionality includes AES3id digital-audio, analog-audio, and embedded-audio reference outputs.
Front-panel controls allow you to adjust many of this models parameters. The unit can also be controlled through the BrightEye software package that is included with the unit and compatible with both Windows and Mac platforms. Note: Please note that a power supply is not included with the unit and must be purchased separately. - Sync Generator & Test Signal Generator
- Use this sync generator and test-signal generator to produce a stable timing source that meets full broadcast standards.
- Controls
- The unit can be controlled through the push buttons on the generator's faceplate or through the proprietary software package included with the unit.
- OS Compatibility
- The generator will work on both Windows and Mac operating systems.
In the Box Ensemble Designs BrightEye 55 Genlock Sync Generator & Test-Signal Generator Sync Generator & Test Signal Generator Five-Year Warranty Against Defects in Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the Ensemble Designs BrightEye 55 Genlock Sync Generator & Test-Signal Generator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEnsemble Designs BrightEye 55 Specs | Construction | Metal, plastic | | Finish | Blue, silver | | Inputs | REFERENCE INPUT
Quantity: x1
Signal type: 1Vp-p PAL, NTSC, or 10MHz
Return loss: >40dB DC to 5.5MHz | | Outputs | COMPOSITE OUTPUT
Quantity: x1
Signal type: NTSC / PAL
Impedance: 75Ω
Return loss: >40dB DC to 5.5MHz
Frequency response: -0.1 dB 10KHz to 5.0MHz
Output: DC ±50mV
K Factor: <1.0%
Differential phase: <1.0 degree
SCH phase: ±5 degrees SERIAL DIGITAL OUTPUT
Quantity: x1
Signal type: serial digital (SMPTE 259M)
Return loss: >15dB, DC to 270MHz TRI-LEVEL SYNC OUTPUT
Quantity: x1, 75 Ω
Type:
1080i (SMPTE 274M -5, 6)
50, 59.94
720p (SMPTE 296M -2, 3)
50, 59.94
1080p (SMPTE 274M -9, 11)
23.98, 24, 25Hz
1080sF (RP211 -14, 16)
23.98, 24, 25Hz
Output: DC ±50mV
Return loss: >30dB to 30MHz AES AUDIO OUTPUT
Quantity: x1
Type: AES3id, 1KHz tone or silence
Resolution: 24-bit ANALOG AUDIO OUTPUT
Quantity: x1 stereo pair or x2 mono
Type: 1KHz tone or silence
Impedance: 30Ω, balanced
Reference level: -10 to + 4dBu, adjustable | | Timing | Internal TCXO:
PAL Fsc 4.43361875 MHz +/- 1 Hz
NTSC Fsc 3.579545 MHz +/- 1 Hz
601 Fs 27.000000 MHz +/- 5 Hz
Long Term Drift:<1 ppm/year
Analog Jitter: <1 ns
Digital Jitter: <0.2 UI (0.13 UI typical) | | Power | 12V, 7W
*100 to 230VAC modular power supply not included | | Dimensions (HxWxD) | 0.8 x 5.625 x 5.5" ( 20 x 143 x 140mm) | | Weight | Not specified by manufacturer | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 8.75 x 7.75 x 2.5" |
