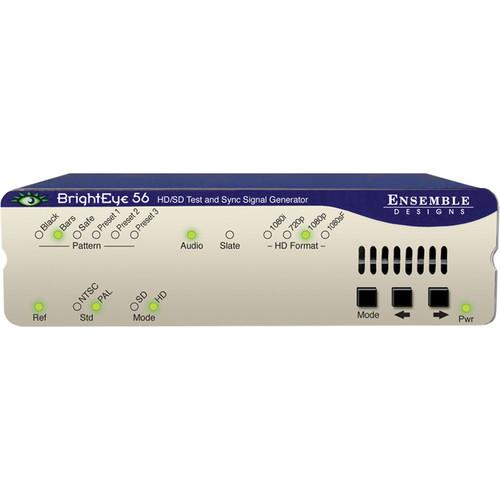

User Manual for Ensemble Designs BrightEye 56 HD SD Analog Test Signal and Sync Pulse Generator Click to enlarge the picture
Contents of the user manual for the Ensemble Designs BrightEye 56 HD SD
- Product category: Test Equipment Ensemble Designs
- Brand: Ensemble Designs
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ensemble Designs Test Equipment
|
User manual for the Ensemble Designs BrightEye 56 HD SD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ensemble Designs product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ensemble Designs user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ensemble Designs product will considerably shorten its lifespan!
|
Product description The Ensemble Designs BrightEye 56 is an HD/SD/analog test signal and sync pulse generator designed to provide accurate and versatile synchronization for audio and video engineers in remote trucks, post-production facilities, and mobile video production setups. It offers the ability to be a master or slave generator and is genlockable.A single BNC reference input accepts composite video (PAL or NTSC), tri-level sync, or 10 MHz signal. Seven BNC jacks provide dedicated composite, tri-level sync, SDI, and AES outputs, plus there are three programmable BNC outputs. Also, a two-channel analog output is available on a terminal block connection.The BrightEye 56 boasts over 30 HD and SD test signals and patterns, a timecode generator, and a sync pulse generator. Many of its settings are accessible via front-panel controls, and full access to all configurable options can be unlocked via BrightEye software on a USB-connected computer. - Genlockable master or slave reference generator
- Over 30 HD and SD test signals and patterns including Color Black, Bars, Crosshatch, Multi-burst, and SDI Checkfield (Pathogenic)
- Internal timecode generator feeds DVITC to the SDI outputs and VITC to the composite outputs
- 6 Hz sync pulse generator
- Two BNC composite outputs
- Two BNC tri-level sync outputs
- Three BNC programmable outputs (selectable between AES, LTC, Word Clock, or 6 Hz Pulse)
- Two-channel terminal block analog output
- Front-panel controls for many settings
- Complete control available via BrightEye software on a computer (USB connection required)
In the Box Ensemble Designs BrightEye 56 HD/SD/Analog Test Signal and Sync Pulse Generator Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ensemble Designs BrightEye 56 HD SD Analog Test Signal and Sync Pulse Generator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEnsemble Designs BE56 Specs | Reference Input | 1 x BNC (1 V P-P composite video PAL or NTSC, tri-level sync, or 10 MHz) | | Outputs | 2 x BNC (composite)
2 x BNC (tri-level sync)
2 x BNC (SDI)
1 x BNC (AES)
3 x BNC (programmable)
1 x Terminal block (2-channel) | | USB | 1 x USB Type-B | | Signal Type | Composite: NTSC/PAL
Serial Digital: 270 Mb/s SD (SMPTE 259M), 1.485 Gb/s HD (SMPTE 274M, 292M, or 296M)
AES: AES3id, 1 kHz tone or silence
Analog: 1 kHz tone or silence
Programmable: AES, LTC, Word Clock, or 6 Hz pulse (selectable) | | Impedance | BNC: 75 Ohms
Analog: 30 Ohms, balanced | | Return Loss | Composite: >40 dB (DC to 5.5 MHz)
Tri-Level Sync: >30 dB (to 30 MHz)
Serial Digital: >15 dB for 270 Mb/s, >15 dB for 1.485 Gb/s | | Composite Output | Frequency Response: -0.1 dB (10 kHz to 5 MHz)
Output DC:
