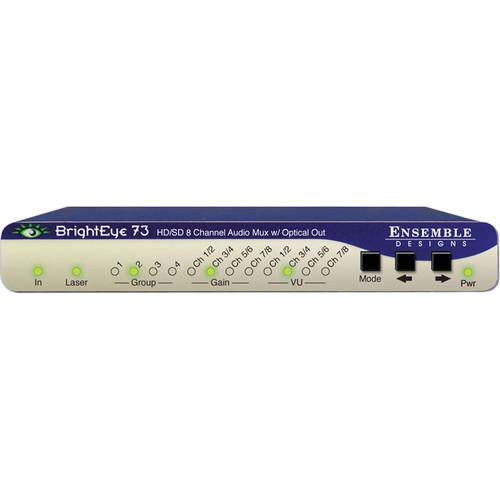

User Manual for Ensemble Designs BrightEye 73 Digital Audio Embedder with Optical Out - HD-SDI, Digital Audio, Optical Video and Audio, BNC Connections Click to enlarge the picture
Contents of the user manual for the Ensemble Designs BrightEye 73 Digital Audio
- Product category: Embedders & De-Embedders Ensemble Designs
- Brand: Ensemble Designs
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ensemble Designs Embedders & De-Embedders
|
User manual for the Ensemble Designs BrightEye 73 Digital Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ensemble Designs product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ensemble Designs user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ensemble Designs product will considerably shorten its lifespan!
|
Product description The Ensemble Design BrightEye 73 is an audio embedder for HD-SDI digital video signals. This device will input or extract a digital audio signal to an HD-SDI video signal and then output the digital video and audio combination signal on an optical connection. Note: Power Supply Purchased Separately - Optical Output
- The output of the module is an optical signal that contains the original video signal and four AES pairs.
- Digital Resolution
- All audio processing is performed at full 24 bit resolution by a digital signal processor (DSP). Delay is adjustable up to one second.
- Audio Capability
- Eight AES audio channels can be input.
- Adjustable
- Audio mixing, level adjustments and channel shuffling can be accomplished in both modes.
- HD-SDI
- This unit accepts HD-SDI in many formats:
- 1080i SMPTE 274M, 50, 59.94 or 60 Hz
- 720p SMPTE 296M, 59.94 and 60 Hz
- 1080p SMPTE 274M 23.98, 24, and 25 Hz
- 1080sF RP211, 23.98, 24 and 25 Hz
In the Box Ensemble Designs BrightEye 73 Digital Audio Embedder with Optical Out - HD-SDI, Digital Audio, Optical Video and Audio, BNC Connections - 5 Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Ensemble Designs BrightEye 73 Digital Audio Embedder with Optical Out - HD-SDI, Digital Audio, Optical Video and Audio, BNC Connections in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEnsemble Designs BrightEye 73 Specs | Input | HD-SDI Video, SMPTE 274M or 296M, with or without embedded audio, on a BNC connector
AES/EBU Audio x4, eight channels, AC-3, @ 75 ohms, on BNC connectors
PC or Mac Connectivity, on a USB connector | | Output | Combination HD-SDI and Eight Channels of AC-3 or Dolby-E Audio on an Optical Connection | | Processes | Embedding Digital Audio on an HD-SDI Digital Video Signal Stream and Outputting the Combination Signal on an Optical Connection | | Control | Front Panel or Remote Computer Via USB:
Embed
Dolby E
Signal Level Adjustment
Channel Selection | | Power Source | 12 VDC from an external power source (not included) | | Dimensions (WxHxD) | 5.625 x 0.8 x 5.5"
14.3 x 2 x 14cm | | Weight | Not Specified by Manufacturer |
