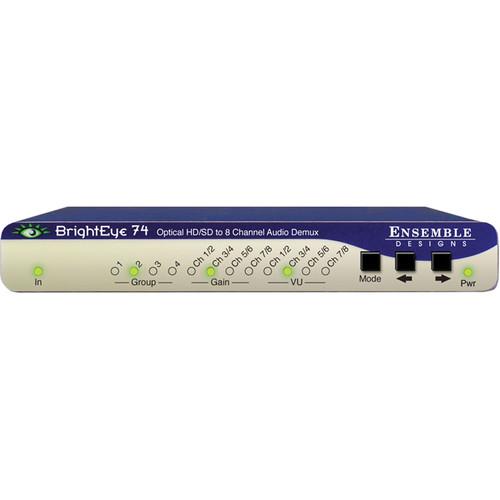

User Manual for Ensemble Designs BrightEye 74 Optical Disembedder with HD SD Electrical Output Click to enlarge the picture
Contents of the user manual for the Ensemble Designs BrightEye 74 Optical Disembedder
- Product category: Embedders & De-Embedders Ensemble Designs
- Brand: Ensemble Designs
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ensemble Designs Embedders & De-Embedders
|
User manual for the Ensemble Designs BrightEye 74 Optical Disembedder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ensemble Designs product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ensemble Designs user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ensemble Designs product will considerably shorten its lifespan!
|
Product description The BrightEye 74 Optical Disembedder with HD/SD Electrical Output from Ensemble Designs is an audio disembedder that features (8) channels, and is designed to extract audio from 1.5Gbs high-definition or 270Mbs standard-definition video signals. Digital video output is made via a BNC connection and is either HD-SDI or SD-SDI, depending on the input standard. The audio signals extracted from the incoming video are delivered as standard AES digital audio streams.
This unit features an 8-channel audio mixer with channel swap and shuffle functionality, allowing you to completely revamp and mix your audio. It also includes up to 12dB of gain to compensate for low level sources and an adjustable delay of up to one second. Audio processing is performed at 24-bit resolution by a digital signal processor. Additionally, a data mode allows you to disembed Dolby E or AC3 signals. Note: Please note that a power supply is not included with the unit and must be purchased separately. - Optical Audio Disembedder
- Use this audio disembedder to extract audio from HD or SD video signals.
- Controls
- This unit offers an 8-channel audio mixer with channel swap, shuffle, gain, and delay adjustments, allowing you to edit and mix audio according to your needs.
- 24-Bit Resolution via DSP
- Audio processing is performed at 24-bit resolution by a digital signal processor.
In the Box Ensemble Designs BrightEye 74 Optical Disembedder with HD/SD Electrical Output Optical Disembedder Five-Year Warranty Against Defects In Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the Ensemble Designs BrightEye 74 Optical Disembedder with HD SD Electrical Output in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEnsemble Designs BrightEye 74 Specs | Construction | Metal, plastic | | Finish | Blue, silver | | Inputs | OPTICAL INPUT
Quantity: x1
Type:
SD and ASI (SMPTE 297M,optical equivalent of 259M)
HD (SMPTE 274M or 296M)
Wavelength: 830 to 1550nm
Receiver sensitivity:
SD and ASI: -18 dBm
HD: -18 dBm
Maximum cable length: 12.42 miles (20 km)
Fiber type:
Single-mode
Multi-mode compatible with 8 dB attenuation at transmit end
Connector: SC EMBEDDED INPUTS
Quantity:
x4 AES Streams (from optical input)
x8 channels from any two of four groups
Channels: x8
Bit depth: 20 and 24 bit
HD standards supported:
1080i (SMPTE 274M -4,5,6) 50, 59.94 or 60Hz
720p (SMPTE 296M -1,2,3) 50, 59.94 or 60Hz
1080p (SMPTE 274M -9,10,11) 23.98,24, 25Hz
1080sF (RP211 -14,15,16) 23.98, 24, 25Hz | | Outputs | SERIAL DIGITAL OUTPUT
Quantity: x1
Type: follows input
Impedance: 75Ω
Return loss: >15dB
Output: DC none (AC coupled) AES/EBU DIGITAL OUTPUTS
Quantity: x4 (total of 8 channels)
Type: AES3id
Connector: coaxial, 75Ω
Bit depth: 20 and 24 bit
Sample rate:
48KHz
Synchronous to video output
Reference level: -18 or -20dBFS (selectable) | | Power | 12V, 7W
*100 to 230VAC modular power supply not included | | Dimensions (HxWxD) | 0.8 x 5.625 x 5.5" ( 20 x 143 x 140mm) | | Weight | Not specified by manufacturer |
