User Manual for Ensemble Designs BrightEye 75 HD SD Analog-to-Digital Video Converter & Analog Audio Embedder Click to enlarge the picture
Contents of the user manual for the Ensemble Designs BrightEye 75 HD SD
- Product category: Signal Converters Ensemble Designs
- Brand: Ensemble Designs
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ensemble Designs Signal Converters
 |
User manual for the Ensemble Designs BrightEye 75 HD SD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ensemble Designs product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ensemble Designs user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ensemble Designs product will considerably shorten its lifespan!
|

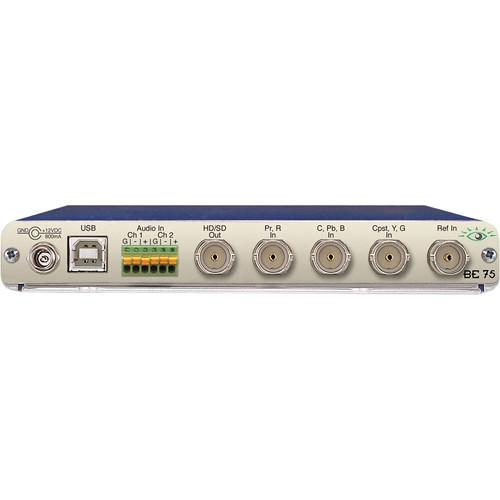

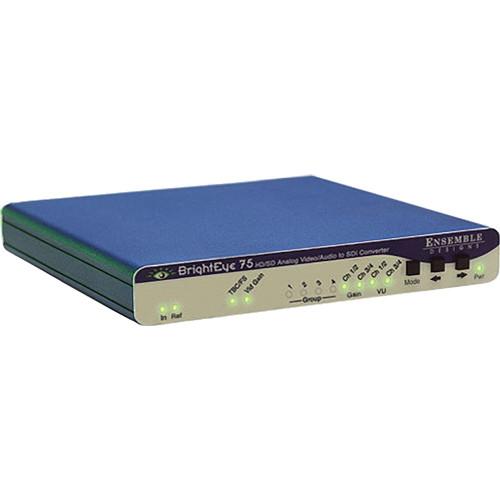

Product description The BrightEye 75 HD/SD Analog-to-Digital Video Converter & Analog Audio Embedder from Ensemble Designs is an analog-to-digital video converter and audio embedder. The unit accepts standard-definition component or composite video and high-definition analog component video. Audio can be input on (2) channels. This unit is well suited for use with HD cameras or similar devices that feature analog input and output. Use the converter to turn an HD camera into a digital source or as an affordable solution for a multi-camera studio.
The unit's digital output carries the uncompressed input signal synchronously to a genlock reference. Inputs are digitized to 12-bit resolution and time base is corrected by a noise-tolerant tracking system. An external reference input allows for genlock to a house reference. The built-in time-base corrector & frame synchronizer can also be used to feed asynchronous or noisy signals to a connected BrightEye 75 unit.

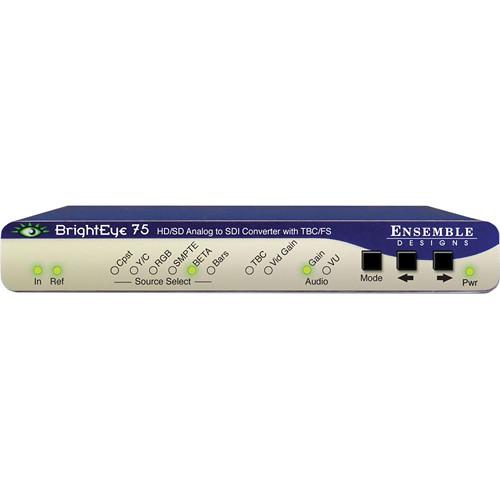

The front-panel interface allows you to control input selection, gain control, and time-base correction. The unit can also be controlled through the BrightEye software package that is included with the unit and compatible with both Windows and Mac platforms. Note: Please note that a power supply is not included with the unit and must be purchased separately. - Analog-to-Digital Video Converter & Analog Audio Embedder
- Use this device to convert analog video to digital and also embed audio signals in the video stream.
- Digital Output with Analog Equipment
- Instantly change the dynamics of your existing setup by using this converter to work with digital video from analog cameras.
- Controls
- The unit can be controlled through the push buttons on the converter's faceplate or through the proprietary software package included with the unit.
- OS Compatibility
- The converter will work on both Windows and Mac operating systems.
In the Box Ensemble Designs BrightEye 75 HD/SD Analog-to-Digital Video Converter & Analog Audio Embedder Converter/Embedder Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ensemble Designs BrightEye 75 HD SD Analog-to-Digital Video Converter & Analog Audio Embedder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEnsemble Designs 75 Specs | Construction | Metal, plastic | | Finish | Blue, silver | | Inputs | ANALOG VIDEO INPUT
Quantity: x1
Type:
HD or SD :Y, Pr, Pb (SMPTE or Beta levels)
HD or SD: analog component
RGB (sync on green)
Analog composite PAL or NTSC
Analog S-video PAL or NTSC
Resolution: digitized at 12 bits
Impedance: 75Ω
Return loss: >40dB
Input DC: +/-1 volt DC
Input hum: <100mV ANALOG AUDIO INPUTS
Quantity: x2
Type: balanced
Impedance: >15KΩ
Maximum input level: 24dBu
CMRR: >60dB, 20Hz to 10KHz
Quantization: 24 bits, 128x Oversampled
Sample rate: 48KHz
Reference level: -10dBu or +4dBu
Frequency response: ±0.1dB, 20Hz to 20KHz
Crosstalk: <106dB
Dynamic Range: >106dB | | Outputs | SERIAL DIGITAL OUTPUT
Quantity: x1
Type:
Follows input standard
HD serial digital, 1.485 Gbs (SMPTE 274M or 296M)
SD serial digital, 270Mb/s SMPTE 259M-C
Impedance: 75Ω
Return loss: >15dB
Maximum cable length:
328 ft (100m) for HD
984 ft (300m) for SD
(Belden 1694A or equivalent)
HD standards supported:
1080i (SMPTE 274M -4,5,6) 50, 59.94 or 60Hz
720p (SMPTE 296M -1,2,3) 50, 59.94 or 60Hz
1080p (SMPTE 274M -9,10,11) 23.98,24, 25Hz
1080sF (RP211 -14,15,16) 23.98, 24, 25Hz EMBEDDED OUTPUT (in serial output)
Group assignment: one of four groups
Channels: x2
Bit depth: 24 bit | | Reference | Quantity: x1
Type: 1Vp-p composite video, PAL or NTSC
Impedance: 75Ω
Return loss: >40dB | | Power | 12V, 7W
*100 to 230VAC modular power supply not included | | Dimensions (HxWxD) | 0.8 x 5.625 x 5.5" ( 20 x 143 x 140mm) | | Weight | Not specified by manufacturer | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 8.7 x 7.9 x 2.4" |
