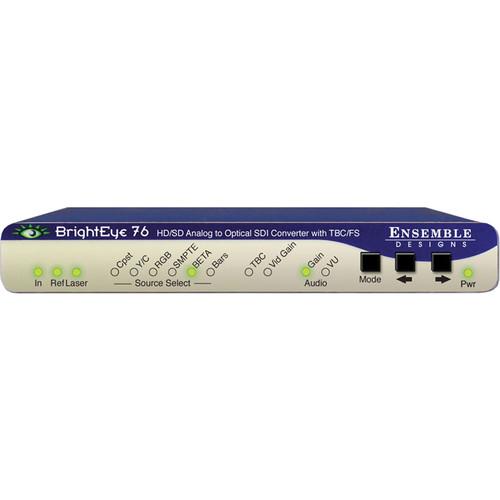

Product description The BrightEye 76 HD Analog-to-Digital Video Converter with Optical Output from Ensemble Designs is an analog-to-digital video converter and audio embedder. The unit accepts standard definition component or composite video and high definition analog component video. Audio can be input on (2) channels. Output of the signals with this unit is optical. This unit is well suited for use with HD cameras or similar devices that feature analog input and output. Use the converter to turn an HD camera into a digital source or as an affordable solution for a multi-camera studio.
The unit's digital output carries the uncompressed input signal synchronously to a genlock reference. Inputs are digitized to 12 bit resolution and time base is corrected by a noise tolerant tracking system. An external reference input allows genlock to a house reference. The built-in time base corrector & frame synchronizer can also be used to feed asynchronous or noisy signals to a connected BrightEye 75 unit.
The front panel interface allows you to control input selection, gain control, and time base correction. The unit can also be controlled through the BrightEye software package that is included with the unit and compatible with both Windows and Mac platforms. Note: Please note that a power supply is not included with the unit and must be purchased separately. - Analog-to-Digital Video Converter & Analog Audio Embedder
- Use this device to convert analog video to digital and also embed audio signals in the video stream.
- Optical Digital Output with Analog Equipment
- Instantly change the dynamics of your existing setup by using this converter to work with optical output digital video from analog cameras.
- Controls
- The unit can be controlled through the push buttons on the converter's faceplate or through the proprietary software package included with the unit.
- OS Compatibility
- The converter will work on both Windows and Mac operating systems.
In the Box Ensemble Designs BrightEye 76 HD Analog-to-Digital Video Converter with Optical Output Converter/Embedder Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ensemble Designs BrightEye 76 HD Analog-to-Digital Video Converter with Optical Output in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEnsemble Designs BrightEye 76 Specs | Construction | Metal, plastic | | Finish | Blue, silver | | Inputs | ANALOG VIDEO INPUT
Quantity: x1
Type:
HD or SD :Y, Pr, Pb (SMPTE or Beta levels)
HD or SD: analog component
RGB (sync on green)
Analog composite PAL or NTSC
Analog S-video PAL or NTSC
Resolution: digitized at 12 bits
Impedance: 75Ω
Return loss: >40dB
Input DC: +/-1 volt DC
Input hum: <100mVANALOG AUDIO INPUTS
Quantity: x2
Type: balanced
Impedance: >15KΩ
Maximum input level: 24dBu
CMRR: >60dB, 20Hz to 10KHz
Quantization: 24 bits, 128x oversampled
Sample rate: 48KHz
Reference level: -10dBu or +4dBu
Frequency response: ±0.1dB, 20Hz to 20KHz
Crosstalk: <106dB
Dynamic Range: >106dB | | Outputs | OPTICAL OUTPUT
Quantity: x1
Type:
SD and ASI (SMPTE 297M, optical equivalent of 259M)
HD (SMPTE 274M or 296M)
Wavelength: 1310nm
Power: -7dBm
Maximum cable length: 12.42 miles (20 km)
Fiber type:
Single-mode
Multi-mode compatible with 8 dB attenuation at transmit end
Connector: SCEMBEDDED OUTPUT (in optical output)
Group assignment: one of four groups
Channels: x2
Bit depth: 24 bit
HD standards support:
1080i (SMPTE 274M -4,5,6) 50, 59.94 or 60 Hz
720p (SMPTE 296M -1,2,3) 50, 59.94 or 60 Hz
1080p (SMPTE 274M -9,10,11) 23.98,24, 25 Hz
1080sF (RP211 -14,15,16) 23.98, 24, 25Hz | | Reference | Quantity: x1
Type: 1Vp-p composite video, PAL or NTSC
Impedance: 75Ω
Return loss: >40dB | | Power | 12V, 7W
*100 to 230VAC modular power supply not included | | Dimensions (HxWxD) | 0.8 x 5.625 x 5.5" ( 20 x 143 x 140mm) | | Weight | Not specified by manufacturer |
