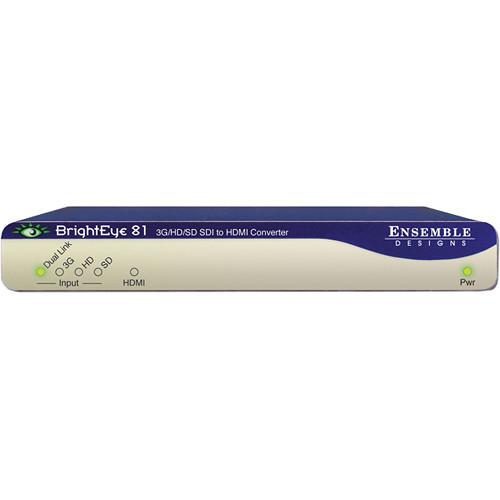

User Manual for Ensemble Designs BrightEye 81 3G HD SD-SDI to HDMI Converter Click to enlarge the picture
Contents of the user manual for the Ensemble Designs BrightEye 81 3G HD
- Product category: Signal Converters Ensemble Designs
- Brand: Ensemble Designs
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ensemble Designs Signal Converters
|
User manual for the Ensemble Designs BrightEye 81 3G HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ensemble Designs product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ensemble Designs user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ensemble Designs product will considerably shorten its lifespan!
|
Product description The BrightEye 81 3G/HD/SD-SDI to HDMI Converter from Ensemble Designs is designed to perform signal conversions and is well suited for feeding a video monitor. It provides a reliable method for achieving confidence monitoring of any digital video signal in post and broadcast applications. The unit's HDMI output is not HDCP-encrypted. Video input is relocked. Signal monitoring and control is provided through the included Brighteye software for PC or Mac. - This device can be used as to perform signal conversion between SD/HD/3G-SDI and HDMI video
- The device is designed for use with HDMI input connectors
- It supports SD and HD signals
- 3G HD Level A and Level B are supported
- This unit passes embedded audio
In the Box Ensemble Designs BrightEye 81 3G/HD/SD-SDI to HDMI Converter Brighteye Software Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ensemble Designs BrightEye 81 3G HD SD-SDI to HDMI Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEnsemble Designs 81 Specs | Inputs | Serial Digital Input
Number: Two, BNC
Signal Type:
270Mbps SD Serial Digital (SMPTE 259M)
1.485Gbps HD Serial Digital (SMPTE 274M, 292M or 296M)
2.97Gbps HD Serial Digital (SMPTE 424M, 425M)
Dual Link HD SDI (SMPTE 372M)
Impedance: 75 Ohms
Return Loss:
>15dB to 1.485GHz
>10dB to 2.97GHz
Max Cable Length:
900' (300) for 270Mbps
300' (100m) for 1.485Gbps
210' (70m) for 2.97Gbps
(Belden 1694A) | | Outputs | Serial Digital Output
Number: One, BNC
Signal Type: Follows input
Impedance: 75 Ohms
Return Loss:
>15 dB to 1.485 GHz
>10 dB to 2.97 GHz
Output: DC None (AC coupled) HDMI Output
Number: One
Type: HDMI 1.3
Format: Follows input | | Resolutions | SDI Standards Supported:
1080i (SMPTE 274M -4,5,6) 50, 59.94 or 60Hz
720p (SMPTE 296M -1,2,3) 50, 59.94 or 60Hz
1080p (SMPTE 274M -9,10,11) 23.98, 24, 25Hz
1080sF (RP211 -14,15,16) 23.98, 24, 25Hz
3Gbps Level A or Level B (SMPTE 424M, 425M)
Dual Link HD SDI (SMPTE 372M)
525i, 625i (SMPTE 259M) | | Power | 12V, 7W (100 to 230VAC modular power supply not included) | | Dimensions (HxWxD) | 0.8 x 5.63 x 5.5" (20 x 143 x 140mm) |
