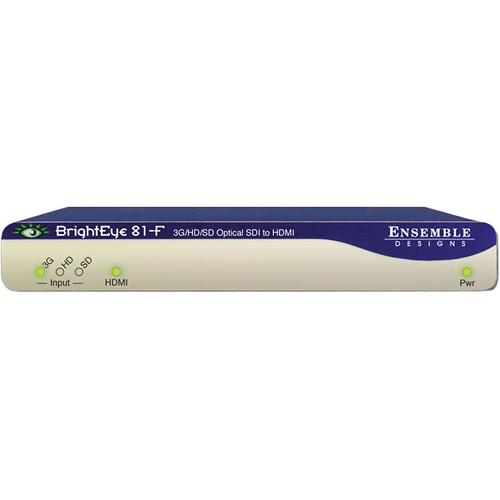

User Manual for Ensemble Designs BrightEye 81-F Optical to HDMI and 3G HD SD-SDI Electrical Converter Click to enlarge the picture
Contents of the user manual for the Ensemble Designs BrightEye 81-F Optical to
- Product category: Signal Converters Ensemble Designs
- Brand: Ensemble Designs
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ensemble Designs Signal Converters
|
User manual for the Ensemble Designs BrightEye 81-F Optical to contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ensemble Designs product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ensemble Designs user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ensemble Designs product will considerably shorten its lifespan!
|
Product description The BrightEye 81-F Optical to HDMI and 3G/HD/SD-SDI Electrical Converter from Ensemble Designs is designed to perform signal conversions of optical HD or SD video feeds to HDMI and electrical output. It provides a reliable method for monitoring optical feeds in broadcast and mobile applications. The unit's HDMI output is not HDCP-encrypted. Signal monitoring and control is provided through the included Brighteye software for PC or Mac. - This device can be used as to perform optical to HDMI and optical to electrical conversion
- It supports SD and HD signals
- 3G HD Level A and Level B are supported
- This unit passes embedded audio
In the Box Ensemble Designs BrightEye 81-F Optical to HDMI and 3G/HD/SD-SDI Electrical Converter Brighteye Software Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ensemble Designs BrightEye 81-F Optical to HDMI and 3G HD SD-SDI Electrical Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEnsemble Designs 81-F Specs | Inputs | Optical Input
Number: One, LC/UPC
Type:
270Mbps (SMPTE 297M, optical equivalent of 259M)
1.485Gbps Gb/s HD Serial Digital (SMPTE 274M, 272M or 296M)
2.97Gbps HD Serial Digital (SMPTE 424M, 425M)
Wavelength: 830 to 1550nm
Receiver Sensitivity: -18dBm
Maximum Cable Length: 12.42 miles (20km)
Fiber Type: Single Mode
Multi-mode compatible with 8dB attenuation at transmit end | | Outputs | Serial Digital Output
Number: One, BNC
Signal Type: Follows input
Impedance: 75 Ohms
Return Loss:
>15 dB to 1.485 GHz
>10 dB to 2.97 GHz
Output: DC None (AC coupled) HDMI Output
Number: One
Type: HDMI 1.3
Format: Follows input | | Resolutions | SDI Standards Supported:
1080i (SMPTE 274M -4,5,6) 50, 59.94 or 60Hz
720p (SMPTE 296M -1,2,3) 50, 59.94 or 60Hz
1080p (SMPTE 274M -9,10,11) 23.98, 24, 25Hz
1080sF (RP211 -14,15,16) 23.98, 24, 25Hz
3Gbps Level A or Level B (SMPTE 424M, 425M)
525i, 625i (SMPTE 259M) | | Power | 12V, 7W (100 to 230VAC modular power supply not included) | | Dimensions (HxWxD) | 0.8 x 5.63 x 5.5" (20 x 143 x 140mm) |
