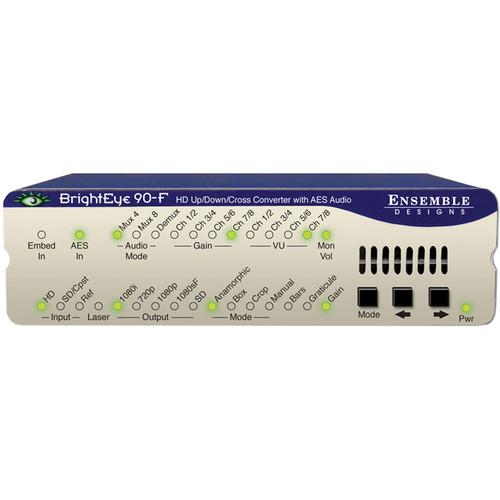

User Manual for Ensemble Designs BrightEye 90-F HD Up-, Down-, Cross- & ARC-Converter with AES Audio and Optical Output Click to enlarge the picture
Contents of the user manual for the Ensemble Designs BrightEye 90-F HD Up-,
- Product category: Signal Converters Ensemble Designs
- Brand: Ensemble Designs
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ensemble Designs Signal Converters
|
User manual for the Ensemble Designs BrightEye 90-F HD Up-, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ensemble Designs product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ensemble Designs user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ensemble Designs product will considerably shorten its lifespan!
|
Product description The BrightEye 90-F HD Up-, Down-, Cross- & ARC-Converter with AES Audio and Optical Output from Ensemble Designs is a converter that can be used to up-convert, down-convert, or cross-convert analog and digital video signals. The unit can also perform aspect-ratio conversion. A built in frame synchronizer allows you to input asynchronous signals, and an external reference input allows for genlock to a house reference. The unit will faithfully pass all vertical interval data and closed captioning information. This model features an optical output, which allows for transmission distances up to 12.42 miles.
This unit also handles embedded audio and discreet AES digital audio streams. It will support up to (16) channels of embedded audio, safely bypassing it around video processing. Two of the four embedded audio groups are available for mixing. The AES input-output ports can be configured for (8) channels of incoming or outgoing audio. The mixer can also be used with AES channels.
The front panel interface offers control of input selection, gain control, and test patterns, among other parameters. The unit can also be controlled through the BrightEye software package that is included with the unit and compatible with both Windows and Mac platforms. LEDs on the front panel provide a visual indicator of channel status. Note: Please note that a power supply is not included with the unit and must be purchased separately. - Analog & Digital Video Conversion
- Use this device to up-, down-, or cross-convert analog and digital video, as well as convert aspect ratios.
- Audio Support
- This unit handles embedded audio and discreet AES digital audio streams.
- Optical Output
- This unit offers extremely long transmission distances due to its optical output.
- Controls
- The unit can be controlled through the push buttons on the converter's faceplate or through the proprietary software package included with the unit.
- OS Compatibility
- The converter will work on both Windows and Mac operating systems.
In the Box Ensemble Designs BrightEye 90-F HD Up-, Down-, Cross- & ARC-Converter with AES Audio and Optical Output Converter Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ensemble Designs BrightEye 90-F HD Up-, Down-, Cross- & ARC-Converter with AES Audio and Optical Output in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEnsemble Designs 90-F Specs | Construction | Metal, plastic | | Finish | Blue, silver | | Inputs | ANALOG VIDEO INPUT
Quantity: x1
Type: analog composite PAL or NTSC
Resolution: digitized at 12 bits
Impedance: 75ÿ©
Return loss: >40dB
Input DC: +/-1VDC
Input hum: <100mVSERIAL DIGITAL INPUT
Quantity: x1
Signal type:
270Mbs SD serial digital (SMPTE 259M)
1.485Gbs HD serial digital (SMPTE 274M or 296M)
Impedance: 75ÿ©
Return loss: >15dB
Maximum cable length:
984 ft (300m) for 270 Mbs
328 ft (100m) for 1.485 GbsREFERENCE INPUT
Quantity: x1
Type:
1Vp-p composite video
PAL or NTSC
Tri-level sync
Impedance: 75ÿ©
Return loss: >40dBAES/EBU DIGITAL INPUTS
Quantity: x4 (total of eight channels, selectable as inputs or outputs)
Type: AES3id
Connector: coaxial, 75ÿ©
Bit depth: 20 and 24 bit
Sample rate: 30KHz to 96KHz (sample rate converted internally to 48KHz)
Reference level: -18 or -20dBFS (selectable) | | Outputs | ANALOG VIDEO OUTPUT
Quantity: x1
Type: Composite PAL or NTSC
Return loss: >40 dB
Output DC: <100mV
SERIAL DIGITAL OUTPUT
Quantity: x2
Type:
HD serial digital 1.485 Gbs (SMPTE 274M or 296M)
SD serial digital 270Mbs (SMPTE 259M-C)
Processing: 12 and 16 bit
Impedance: 75Ω
Return loss: >15dB
Maximum cable length:
328 ft (100m) for HD
984 ft (300m) for SD
(Belden 1694A or equiv.)
HD standards supported:
1080i (SMPTE 274M -4,5,6) 50, 59.94 or 60Hz
720p (SMPTE 296M -1,2,3) 50, 59.94 or 60Hz
1080p (SMPTE 274M -9,10,11) 23.98,24, 25Hz
1080sF (RP211 -14,15,16) 23.98, 24, 25Hz
AES/EBU DIGITAL VIDEO OUTPUT
Quantity: x4 (total of eight channels, selectable as inputs or outputs)
Type: AES3id
Connectors: coaxial, 75Ω
Bit depth: 24 bit
Sample rate:
48KHz
Synchronous to video output
Reference level: -18 or -20dBFS (selectable) OPTICAL OUTPUT
Quantity: x1
Type:
SD (SMPTE 297M, optical equivalent of 259M)
HD (SMPTE 274M or 296M)
Wavelength: 1310nm
Power: -7dBm
Maximum cable length: 12.42 miles (20km)
Fiber type:
Single-mode
Multi-mode compatible with 8 dB attenuation at transmit end
Connector: SC MONITOR OUTPUT
Quantity: x1
Connector: HDMI
AUDIO MONITORING OUTPUT
Quantity: x1 (select from eight channels) | | Power | 12V, 7W
*100 to 230VAC modular power supply not included | | Dimensions (HxWxD) | 1.7 x 5.625 x 5.5" (40 x 143 x 140mm) including connectors | | Weight | Not specified by manufacturer |
