Ensemble Designs BrightEye 91-A HD Up-Converter

Search your instruction manual in PDF to download

User Manual for Ensemble Designs BrightEye 91-A HD Up-Converter with Analog Audio

Click to enlarge the picture
Ensemble Designs BrightEye 91-A HD Up-Converter with Analog Audio Contents of the user manual for the Ensemble Designs BrightEye 91-A HD Up-Converter
  • Product category: Signal Converters Ensemble Designs
  • Brand: Ensemble Designs
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Ensemble Designs Signal Converters

User manual for the Ensemble Designs BrightEye 91-A HD Up-Converter contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Ensemble Designs product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Ensemble Designs user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Ensemble Designs product will considerably shorten its lifespan!



Product description

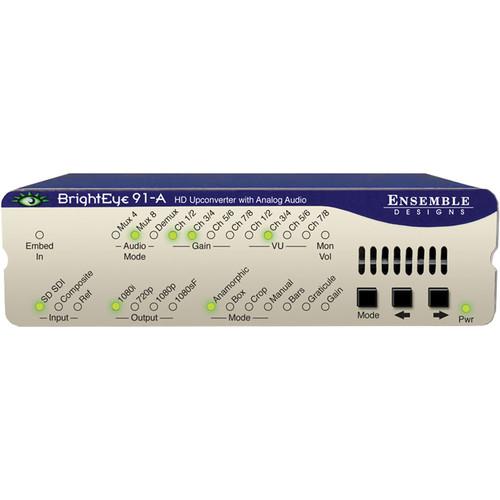

The BrightEye 91-A HD Up-Converter with Analog Audio from Ensemble Designs is an up-converter that features analog composite and SD-SDI inputs. Feed your analog camera signals to this unit and up-convert its video to high-definition. Moreover, the HD output can be fed into other systems such as switchers or projectors, among other possible uses. This economical solution allows you to upgrade to HD without replacing your existing infrastructure or equipment.

An external reference input allows for genlock to a house reference, and the unit faithfully passes all vertical interval data and closed captioning information. The HDMI connector on the rear of the chassis provides a monitoring interface with LCD displays.

This unit also handles up to (16) channels of embedded audio and up to (8) channels of analog audio streams. Embedded audio is safely routed around video processing. Two of the four embedded audio groups are available for mixing. You can monitor any audio channel by plugging a headset into the 3.5mm jack on the unit's front panel.

The front-panel interface offers control of input selection, gain control, and test patterns, among other parameters. The unit can also be controlled through the BrightEye software package that is included with the unit and compatible with both Windows and Mac platforms. LEDs on the front panel provide a visual indicator of channel status. Note: Please note that a power supply is not included with the unit and must be purchased separately.
    HD Up-Conversion
  • Use this device to up-convert SD-SDI video into an HD signal.
    Audio Support
  • This unit handles embedded audio and analog audio streams.
    Controls
  • The unit can be controlled through the push buttons on the converter's faceplate or through the proprietary software package included with the unit.
    OS Compatibility
  • The converter will work on both Windows and Mac operating systems.
In the Box Ensemble Designs BrightEye 91-A HD Up-Converter with Analog Audio
  • Converter
  • Limited 5-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Ensemble Designs BrightEye 91-A HD Up-Converter with Analog Audio in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Ensemble Designs 91-A Specs

    Construction Metal, plastic
    Finish Blue, silver
    Inputs ANALOG VIDEO INPUT
    Quantity: x1
    Type: analog composite PAL or NTSC
    Resolution: digitized at 12 bits
    Impedance: 75ÿ©
    Return loss: >40dB
    Input DC: +/-1VDC
    Input hum: <100mVSERIAL DIGITAL INPUT
    Quantity: x1
    Signal type: 270Mbs SD serial digital (SMPTE 259M)
    Impedance: 75ÿ©
    Return loss: >15dB
    Maximum cable length: 984 ft (300m) for 270 MbsREFERENCE INPUT
    Quantity: x1
    Type:
    1Vp-p composite video
    PAL or NTSC
    Tri-level sync
    Impedance: 75ÿ©
    Return loss: >40dBANALOG AUDIO INPUT
    Quantity: x8 (selectable as inputs or outputs)
    Type: balanced
    Impedance: >15Kÿ©
    Maximum input level: 24dBu
    CMRR: >60dB, 20Hz to 10KHz
    Quantization: 24 bits, 128x oversampled
    Sample rate: 48KHz
    Reference level: -10dBu or +4dBu
    Frequency Response: ±0.1dB, 20Hz to 20KHz
    Crosstalk: <106dB
    Dynamic range: >106dB
    Outputs SERIAL DIGITAL OUTPUT
    Quantity: x2
    Type:
    HD serial digital 1.485 Gbs (SMPTE 274M or 296M)
    Processing: 12 and 16 bit
    Impedance: 75ÿ©
    Return loss: >15dB
    Maximum cable length:
    328 ft (100m) for HD
    (Belden 1694A or equivalent)
    HD standards supported:
    1080i (SMPTE 274M -4,5,6) 50, 59.94 or 60Hz
    720p (SMPTE 296M -1,2,3) 50, 59.94 or 60Hz
    1080p (SMPTE 274M -9,10,11) 23.98,24, 25Hz
    1080sF (RP211 -14,15,16) 23.98, 24, 25HzANALOG AUDIO OUTPUTS
    Quantity: x8 (selectable as inputs or outputs)
    Type: balanced, without transformer
    Impedance: 30ÿ©
    Maximum output level: 24dBu
    Resolution: 24 bits, 128x oversampled
    Reference level: -10dBu or +4dBu
    Frequency response: ± 0.1dB, 20Hz to 20KHz
    Crosstalk: <106dB
    Dynamic range: >106dBEMBEDDED OUTPUT (in serial output)
    Group assignment: two of four groups
    Channels: x16, passed
    Bit depth: 24 bitMONITOR OUTPUT
    Quantity: x1
    Connector: HDMIAUDIO MONITORING OUTPUT
    Quantity: x1 (select from eight channels)
    Connector: 3.5mm stereo mini jack
    Power 12V, 7W

    *100 to 230VAC modular power supply not included
    Dimensions (HxWxD) 1.7 x 5.625 x 5.5" (40 x 143 x 140mm) including connectors
    Weight Not specified by manufacturer
    Package Weight 2.15 lb
    Box Dimensions (LxWxH) 8.8 x 7.8 x 2.4"
