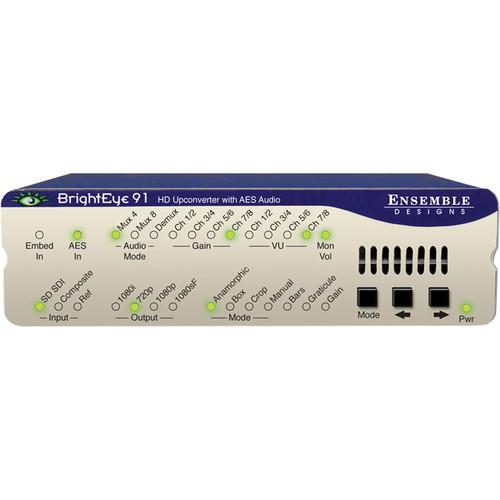

User Manual for Ensemble Designs BrightEye 91 HD Up-Converter with AES Audio Click to enlarge the picture
Contents of the user manual for the Ensemble Designs BrightEye 91 HD Up-Converter
- Product category: Signal Converters Ensemble Designs
- Brand: Ensemble Designs
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ensemble Designs Signal Converters
|
User manual for the Ensemble Designs BrightEye 91 HD Up-Converter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ensemble Designs product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ensemble Designs user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ensemble Designs product will considerably shorten its lifespan!
|
Product description The BrightEye 91 HD Up-Converter with AES Audio from Ensemble Designs is an up-converter that features analog composite and SD-SDI inputs. Feed your analog camera signals to this unit and up-convert the video to high-definition. Moreover, the HD output can be fed into other systems such as switchers or projectors, among other possible uses. This economical solution allows you to upgrade to HD without replacing your existing infrastructure or equipment.
An external reference input allows for genlock to a house reference, and the unit faithfully passes all vertical interval data and closed captioning information. The HDMI connector on the rear of the chassis provides a monitoring interface with LCD displays.
This unit also handles embedded audio and discreet AES digital audio streams. It will support up to (16) channels of embedded audio, safely bypassing it around video processing. Two of the four embedded audio groups are available for mixing. You can monitor any audio channel by plugging a headset into the 3.5mm jack on the unit's front panel.
The front-panel interface offers control of input selection, gain control, and test patterns, among other parameters. The unit can also be controlled through the BrightEye software package that is included with that unit and compatible with both Windows and Mac platforms. LEDs on the front panel provide a visual indicator of channel status. Note: Please note that a power supply is not included with the unit and must be purchased separately. - HD Up-Converter
- Use this device to up-convert SD-SDI video into an HD signal.
- Audio Support
- This unit handles embedded audio and discreet AES digital audio streams.
- Controls
- The unit can be controlled through the push buttons on the converter's faceplate or through the proprietary software package included with the unit.
- OS Compatibility
- The converter will work on both Windows and Mac operating systems.
In the Box Ensemble Designs BrightEye 91 HD Up-Converter with AES Audio Converter Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ensemble Designs BrightEye 91 HD Up-Converter with AES Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEnsemble Designs 91 Specs | Construction | Metal, plastic | | Finish | Blue, silver | | Inputs | ANALOG VIDEO INPUT
Quantity: x1
Type: analog composite PAL or NTSC
Resolution: digitized at 12 bits
Impedance: 75ÿ©
Return loss: >40dB
Input DC: +/-1VDC
Input hum: <100mV SERIAL DIGITAL INPUT
Quantity: x1
Signal type:
270Mbs SD serial digital (SMPTE 259M)
1.485Gbs HD serial digital (SMPTE 274M or 296M)
Impedance: 75ÿ©
Return loss: >15dB
Maximum cable length:
984 ft (300m) for 270 Mbs
328 ft (100m) for 1.485 GbsREFERENCE INPUT
Quantity: x1
Type:
1Vp-p Composite Video
PAL or NTSC
Tri-level sync
Impedance: 75ÿ©
Return loss: >40dBAES/EBU DIGITAL INPUTS
Quantity: x4 (total of eight channels, selectable as inputs or outputs)
Type: AES3id
Connector: coaxial, 75ÿ©
Bit depth: 20 and 24 bit
Sample rate: 30KHz to 96KHz (sample rate converted internally to 48KHz)
Reference level: -18 or -20dBFS (selectable) | | Outputs | SERIAL DIGITAL OUTPUT
Quantity: x2
Type:
HD serial digital 1.485 Gbs (SMPTE 274M or 296M)
SD serial digital 270Mbs (SMPTE 259M-C)
Processing: 12 and 16 bit
Impedance: 75Ω
Return loss: >15dB
Maximum cable length:
328 ft (100m) for HD
984 ft (300m) for SD
(Belden 1694A or equiv.)
HD standards supported:
1080i (SMPTE 274M -4,5,6) 50, 59.94 or 60Hz
720p (SMPTE 296M -1,2,3) 50, 59.94 or 60Hz
1080p (SMPTE 274M -9,10,11) 23.98,24, 25Hz
1080sF (RP211 -14,15,16) 23.98, 24, 25Hz AES/EBU DIGITAL VIDEO OUTPUT
Quantity: x4 (total of eight channels, selectable as inputs or outputs)
Type: AES3id
Connectors: coaxial, 75Ω
Bit depth: 24 bit
Sample rate:
48KHz
Synchronous to video output
Reference level: -18 or -20dBFS (selectable) EMBEDDED OUTPUT (in serial output)
Group assignment: two of four groups
Channels: x16 passed
Bit depth: 24 bit MONITOR OUTPUT
Quantity: x1
Connector: HDMI AUDIO MONITORING OUTPUT
Quantity: x1 (select from eight channels) Connector: 3.5mm stereo mini jack | | Power | 12V, 7W
*100 to 230VAC modular power supply not included | | Dimensions (HxWxD) | 1.7 x 5.625 x 5.5" (40 x 143 x 140mm) including connectors | | Weight | Not specified by manufacturer |
