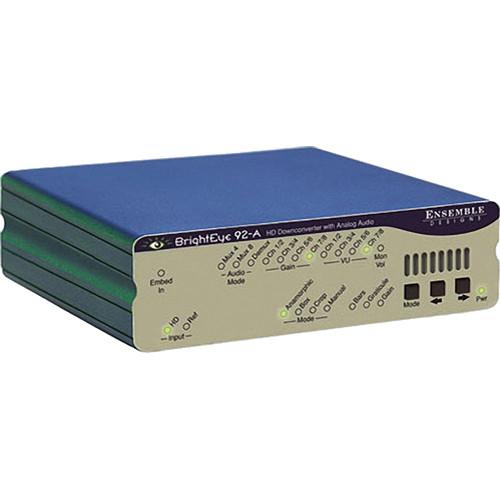

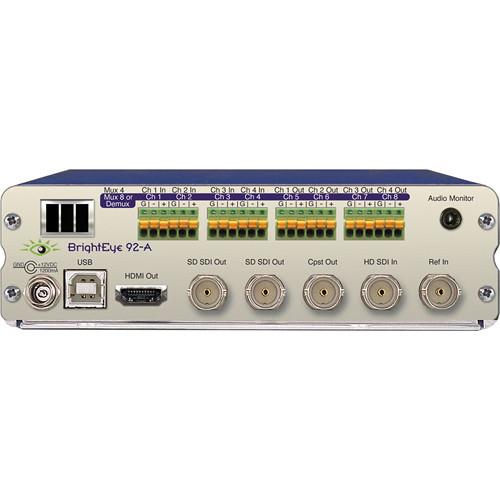

Product description The BrightEye 92-A HD Down-Converter with Analog Audio from Ensemble Designs is a converter that will down-convert any type of HD signal, and output it as an SD-SDI or analog composite signal for broadcast or monitoring. The unit features a built-in frame synchronizer that allows you to produce asynchronous signals. An external reference input allows for genlock to a house reference, and the unit faithfully passes all vertical interval data and closed captioning information. The HDMI connector on the rear of the chassis provides a monitoring interface with LCD displays.
This unit also handles up to (16) channels of embedded audio and up to (8) channels of analog audio streams. Embedded audio is safely routed around video processing. Two of the four embedded audio groups are available for mixing. You can monitor any audio channel by plugging a headset into the 3.5mm jack on the unit's front panel.

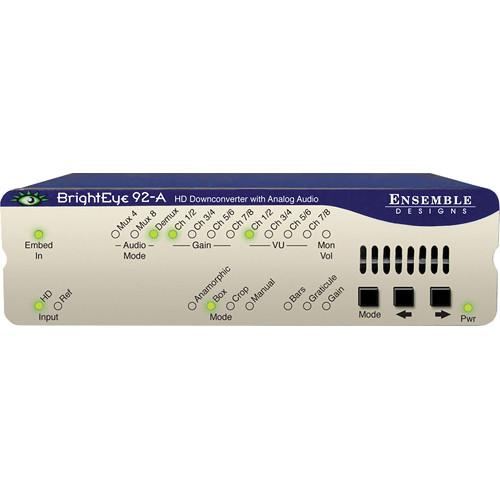

The front-panel interface offers control of input selection, gain control, and test patterns, among other parameters. The unit can also be controlled through the BrightEye software package that is included with the unit and compatible with both Windows and Mac platforms. LEDs on the front panel provide a visual indicator of channel status. Note: Please note that a power supply is not included with the unit and must be purchased separately. - HD Down-Conversion
- Use this device to downconvert any type of HD signal as an SD-SDI or analog composite signal.
- Audio Support
- This unit handles embedded audio and analog audio streams.
- Controls
- The unit can be controlled through the push buttons on the converter's faceplate or through the proprietary software package included with the unit.
- OS Compatibility
- The converter will work on both Windows and Mac operating systems.
In the Box Ensemble Designs BrightEye 92-A HD Down-Converter with Analog Audio Converter Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ensemble Designs BrightEye 92-A HD Down-Converter with Analog Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEnsemble Designs 92-A Specs | Construction | Metal, plastic | | Finish | Blue, silver | | Inputs | SERIAL DIGITAL INPUT
Quantity: x1
Signal type: 1.485Gbs HD serial digital (SMPTE 274M or 296M)
Impedance: 75Ω
Return loss: >15dB
Maximum cable length: 328 ft (100m) for 270 Mbs REFERENCE INPUT
Quantity: x1
Type:
1Vp-p composite video
PAL or NTSC
Tri-level sync
Impedance: 75Ω
Return loss: >40dB ANALOG AUDIO INPUT
Quantity: x8 (selectable as inputs or outputs)
Type: balanced
Impedance: >15KΩ
Maximum input level: 24dBu
CMRR: >60dB, 20Hz to 10KHz
Quantization: 24 bits, 128x oversampled
Sample rate: 48KHz
Reference level: -10dBu or +4dBu
Frequency Response: ±0.1dB, 20Hz to 20KHz
Crosstalk: <106dB
Dynamic range: >106dB | | Outputs | SERIAL DIGITAL OUTPUT
Quantity: x2
Type:
SD serial digital (270Mbs SMPTE 259M-C)
Processing: 12 and 16 bit
Impedance: 75Ω
Return loss: >15dB
Maximum cable length:
984 ft (300m)
HD standards supported:
1080i (SMPTE 274M -4,5,6) 50, 59.94 or 60Hz
720p (SMPTE 296M -1,2,3) 50, 59.94 or 60Hz
1080p (SMPTE 274M -9,10,11) 23.98,24, 25Hz
1080sF (RP211 -14,15,16) 23.98, 24, 25Hz ANALOG AUDIO OUTPUTS
Quantity: x8 (selectable as inputs or outputs)
Type: balanced, without transformer
Impedance: 30Ω
Maximum output level: 24dBu
Resolution: 24 bits, 128x oversampled
Reference level: -10dBu or +4dBu
Frequency response: ± 0.1dB, 20Hz to 20KHz
Crosstalk: <106dB
Dynamic range: >106dB EMBEDDED OUTPUT (in serial output)
Group assignment: two of four groups
Channels: x16, passed
Bit depth: 24 bit MONITOR OUTPUT
Quantity: x1
Connector: HDMI AUDIO MONITORING OUTPUT
Quantity: x1 (select from eight channels)
Connector: 3.5mm stereo mini jack | | Power | 12V, 7W
*100 to 230VAC modular power supply not included | | Dimensions (HxWxD) | 1.7 x 5.625 x 5.5" (40 x 143 x 140mm) including connectors | | Weight | Not specified by manufacturer |
