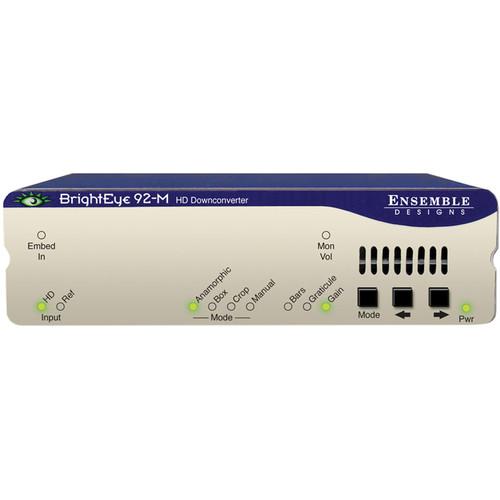

User Manual for Ensemble Designs BrightEye 92-M HD Down-Converter Click to enlarge the picture
Contents of the user manual for the Ensemble Designs BrightEye 92-M HD Down-Converter
- Product category: Signal Converters Ensemble Designs
- Brand: Ensemble Designs
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ensemble Designs Signal Converters
|
User manual for the Ensemble Designs BrightEye 92-M HD Down-Converter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ensemble Designs product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ensemble Designs user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ensemble Designs product will considerably shorten its lifespan!
|
Product description The BrightEye 92-M HD Down-Converter from Ensemble Designs is a converter that will down-convert any type of HD signal and output it as an SD-SDI or analog composite signal for broadcast or monitoring. The unit features a built-in frame synchronizer which, allows you to produce asynchronous signals.
An external reference input allows for genlock to a house reference, and the unit faithfully passes all vertical interval data and closed captioning information. The HDMI connector on the rear of the chassis provides a monitoring interface with LCD displays.
This unit also handles up to (16) channels of embedded audio. Embedded audio is safely routed around video processing. You can monitor any audio channel by plugging a headset into the 3.5mm jack on the unit's front panel.
The front panel interface offers control of input selection, gain control, and test patterns, among other parameters. The unit can also be controlled through the BrightEye software package that is included with the unit and compatible with both Windows and Mac platforms. LEDs on the front panel provide a visual indicator of channel status. Note: Please note that a power supply is not included with the unit and must be purchased separately. - HD Down-Conversion
- Use this device to down-convert any type of HD signal as an SD-SDI or analog composite signal.
- Audio Support
- This unit supports (16) channels of embedded audio.
- Controls
- The unit can be controlled through the push buttons on the converter's faceplate or through the proprietary software package included with the unit.
- OS Compatibility
- The converter will work on both Windows and Mac operating systems.
In the Box Ensemble Designs BrightEye 92-M HD Down-Converter Converter Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ensemble Designs BrightEye 92-M HD Down-Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEnsemble Designs 92-M Specs | Construction | Metal, plastic | | Finish | Blue, silver | | Inputs | SERIAL DIGITAL INPUT
Quantity: x1
Signal type: 1.485Gbs HD serial digital (SMPTE 274M or 296M)
Impedance: 75Ω
Return loss: >15dB
Maximum cable length: 328 ft (100m) for 270 Mbs REFERENCE INPUT
Quantity: x1
Type:
1Vp-p composite video
PAL or NTSC
Tri-level sync
Impedance: 75Ω
Return loss: >40dB | | Outputs | ANALOG VIDEO OUTPUT
Quantity: x1
Type: composite PAL or NTSC
Return loss: >40 dB
Output DC: < 100mVSERIAL DIGITAL OUTPUT
Quantity: x2
Type:
SD serial digital (270Mbs SMPTE 259M-C)
Processing: 12 and 16 bit
Impedance: 75Ω
Return loss: >15dB
Maximum cable length:
984 ft (300m)
HD standards supported:
1080i (SMPTE 274M -4,5,6) 50, 59.94 or 60Hz
720p (SMPTE 296M -1,2,3) 50, 59.94 or 60Hz
1080p (SMPTE 274M -9,10,11) 23.98,24, 25Hz
1080sF (RP211 -14,15,16) 23.98, 24, 25Hz MONITOR OUTPUT
Quantity: x1
Connector: HDMI AUDIO MONITORING OUTPUT
Quantity: x1 (select from eight channels)
Connector: 3.5mm stereo mini jack | | Power | 12V, 7W
*100 to 230VAC modular power supply not included | | Dimensions (HxWxD) | 1.7 x 5.625 x 5.5" (40 x 143 x 140mm) including connectors | | Weight | Not specified by manufacturer |
