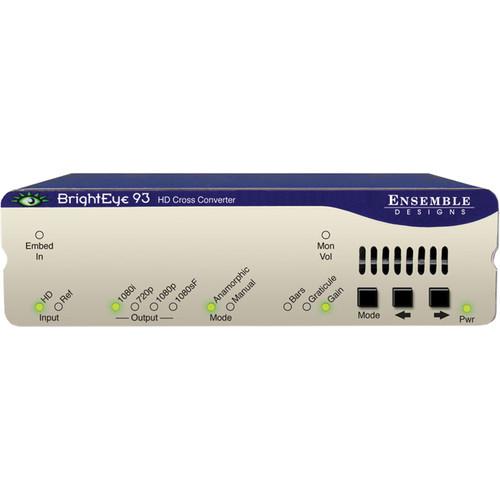

Product description The BrightEye 93 HD Cross Converter from Ensemble Designs is a device that will convert between various HD standards. To perform cross conversion, simply connect the input signal and select the desired output option. An external reference input allows for genlock to a house reference, and the unit faithfully passes all vertical interval data and closed captioning information. The HDMI connector on the rear of the chassis provides a monitoring interface with LCD displays.
This unit also handles up to (16) channels of embedded audio, which, is safely routed around video processing. You can monitor any audio channel by plugging a headset into the 3.5mm jack on the unit's front panel.
The front panel interface offers control of input selection, gain control, and test patterns, among other parameters. The unit can also be controlled through the BrightEye software package that is included with the unit and compatible with both Windows and Mac platforms. LEDs on the front panel provide a visual indicator of channel status. Note: Please note that a power supply is not included with the unit and must be purchased separately. - HD Cross-Conversion
- Use this device to cross convert any type of HD signal, whether 720p or 1080i.
- Audio Support
- This unit handles embedded audio and analog audio streams.
- Controls
- The unit can be controlled through the push buttons on the converter's faceplate or through the proprietary software package included with the unit.
- OS Compatibility
- The converter will work on both Windows and Mac operating systems.
In the Box Ensemble Designs BrightEye 93 HD Cross Converter Converter Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ensemble Designs BrightEye 93 HD Cross Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEnsemble Designs 93 Specs | Construction | Metal, plastic | | Finish | Blue, silver | | Inputs | SERIAL DIGITAL INPUT
Quantity: x1
Signal type: 1.485Gbs HD serial digital (SMPTE 274M or 296M)
Impedance: 75Ω
Return loss: >15dB
Maximum cable length: 328 ft (100m) for 1.485 Gbs REFERENCE INPUT
Quantity: x1
Type:
1Vp-p composite video
PAL or NTSC
Tri-level sync
Impedance: 75Ω
Return loss: >40dB | | Outputs | SERIAL DIGITAL OUTPUT
Quantity: x2
Type:
HD serial digital 1.485 Gbs (SMPTE 274M or 296M-C)
Processing: 12 and 16 bit
Impedance: 75Ω
Return loss: >15dB
Maximum cable length:
328 ft (100m) for HD
(Belden 1694A or equivalent)
HD standards supported:
1080i (SMPTE 274M -4,5,6) 50, 59.94 or 60Hz
720p (SMPTE 296M -1,2,3) 50, 59.94 or 60Hz
1080p (SMPTE 274M -9,10,11) 23.98,24, 25Hz
1080sF (RP211 -14,15,16) 23.98, 24, 25Hz MONITOR OUTPUT
Quantity: x1
Connector: HDMI AUDIO MONITORING OUTPUT
Quantity: x1 (select from eight channels)
Connector: 3.5mm stereo mini jack | | Power | 12V, 7W
*100 to 230VAC modular power supply not included | | Dimensions (HxWxD) | 1.7 x 5.625 x 5.5" (40 x 143 x 140mm) including connectors | | Weight | Not specified by manufacturer |
