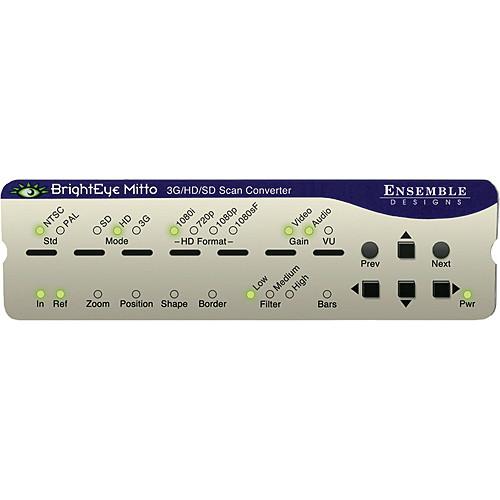

Product description The BrightEye Mitto 3G/HD/SD Scan Converter from Ensemble Designs allows you to scale video, particularly video taken from the web that needs to be output for broadcast applications. It accepts DVI or VGA signals and can output SD-, HD-, or 3G-SDI. HDMI input is also possible with use of an adapter. The unit also supports analog audio and AES digital audio input. It offers PC and Mac interfaces. You can choose what part of the video to output with your mouse. The unit can additionally be controlled via its front-panel buttons or RS-232. Other features include user-selectable video output format, genlock, proprietary scaling, and presets. The unit's small footprint makes it well suited for use in virtually any work environment. - Web Video to Air Made Simple
- This device supports SD, HD, and 3G video signals. For broadcasters who find they are relying on video content from the web, BrightEye Mitto offers the ability to convert web video for use in broadcast applications.
- Filtering & Scaling Technology
- BrightEye Mitto offers a proprietary scaling technology and multi-tap filtering. The region selected for output determines if Mitto acts as an upconverter or downconverter. The filters automatically adjust in accordance with the conversion being performed. Bringing progressive images from the desktop into the interlaced world of video is often a compromise between sharp details versus interfield flicker. Mitto's advanced filtering is designed to satisfy both of these seemingly contradictory requirements.
- Digital & Analog Video and Audio
- The front-panel interface allows you to choose the desired video output format. Choices are 1.5 and 3Gbps HD-SDI and SD-SDI. Composite video is simultaneously output on a separate BNC connector. The genlock reference input allows the video outputs to be timed to house. The audio input accepts either AES digital audio or analog audio. Audio is embedded into the SDI outputs, which is required for many high-end applications.
- User Interface
- The included Mac/PC application let's you simply use your mouse to click and drag over the specific portion of computer video that you want to output. The interface allows you to see which parts of the screen you don't want to output, as well as the parts you do want to use. The perspective of seeing the whole screen gives you the ability to choose exactly which portion of the video you want to output. Whether you output the entire screen of just a selected portion, you'll be able to see exactly what you are doing. Presets also enable you to store your favorite settings.
- Free Software Upgrades Forever
- BrightEye Mitto's software can be upgraded through the unit's USB port. Software upgrades are available for no charge for the life of the product and are conveniently downloadable from the Ensemble Designs web site.
In the Box Ensemble Designs BrightEye Mitto 3G/HD/SD Scan Converter Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ensemble Designs BrightEye Mitto 3G HD SD Scan Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEnsemble Designs Mitto Specs | Inputs | Computer Input
Number: One
Type: DVI or VGA (Supports HDMI with adaptor)
Connector: DVI-I
Resolution: Up to 1920 x 1200 Reference Input
Number: One, BNC
Type: 1 V P-P Composite Video, PAL, NTSC, Tri-Level Sync
Impedance: 75 Ohms
Return Loss: >40 dB Analog Audio Inputs
Number: One stereo pair
Connector: 1/8" mini jack
Impedance: >15 kOhms
Max Input Level: 24dBu
Quantization: 24 bits, 128 x oversampled
Sample Rate: 48KHz
Reference Level: -10dBu or +4dBu
Frequency Response: +/-0.1dB, 20Hz to 20KHz
Crosstalk: <106dB
Dynamic Range: >106dB AES/EBU Digital Inputs
Number: Two (four channels)
Type: AES3id, S/PDIF
Connector: 1/8" mini jack
Bit Depth: 20 and 24 Bit
Sample Rate: 30 KHz to 192 KHz
(Sample Rate Converted Internally to 48KHz) | | Outputs | Serial Digital Output
Number: Two, BNC
Signal Type: 1.485Gbps HD, 2.97Gbps HD, or 270 Mbps SD-SDI
Audio: Embedded
Impedance: 75 Ohms
Return Loss:
>15dB to 1.485GHz
>10dB to 2.97GHz
Output: DC None (AC coupled)
SDI Standards Supported:
1080i (SMPTE 274M -4,5,6) 50, 59.94 or 60Hz
720p (SMPTE 296M -1,2,3) 50, 59.94 or 60Hz
1080p (SMPTE 274M -9,10,11) 23.98, 24, 25Hz
1080sF (RP211 -14,15,16) 23.98, 24, 25Hz
3Gbps Level A or Level B (SMPTE 424M, 425M)
525i, 625i (SMPTE 259M) Analog Video Output
Number: One, BNC
Type: Composite PAL or NTSC
(when SD is selected on the SDI output)
Return Loss: > 40dB
Output DC: < 100mV Computer Monitor Output
Number: One, looping
Type: DVI or VGA
(Supports HDMI with adaptor)
Connector: DVI-I
Format: Follows input | | Control | RS-232, 9-pin D | | Power | 12V, 12W, 100 to 230VAC (modular power supply not included) | | Dimensions (HxWxD) | 1.6 x 5.63 x 5.5" (20 x 143 x 140mm) | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 9.0 x 8.0 x 2.56" |
