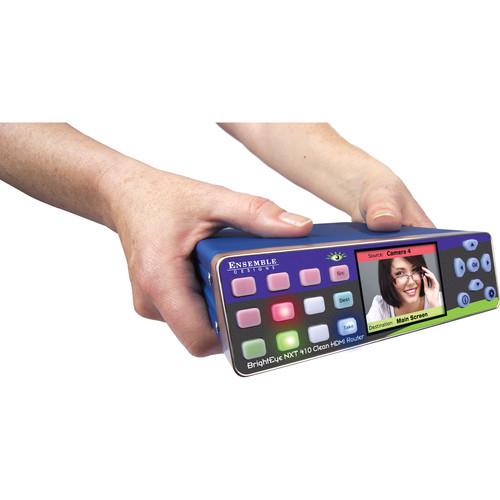

Product description The BrightEye NXT 410 Clean HDMI Router from Ensemble Designs makes it easy to integrate and switch signals from all types of equipment, regardless of the video format. The HDMI output always provides clean switches, and you can assign the second clean switch to one of the SDI or SFP outputs. Cameras with HDMI outputs can be used directly alongside SDI sources, and seamlessly routed to either HDMI or SDI outputs. This router can also be controlled from third-party devices using serial protocols via TCP/IP, RS-232, and SNMP. - Instant HDMI Clean Switching
-
- This router cleanly and instantly switches your HDMI sources. The HDMI output switches instantaneously. You can feed this router with cameras and other HDMI sources and take the output to projectors, flat screens, and production equipment. The built-in frame synchronizer provides two clean switched outputs. The HDMI output always provides clean switches, and you can assign the second clean switch to one of the SDI or SFP outputs. Ideal for flypacks, videoconference rooms, and anywhere you need a small router, this router has incredible power in a small 1 RU high by 1/3 RU wide footprint. The exclusive front panel LCD displays real-time full motion video of your HDMI and SDI router sources.
- Integrate HDMI and SDI I/O
-
- With both HDMI and SDI inputs and outputs, this router makes it easy to integrate and switch signals from all types of equipment, regardless of the video format. Cameras with HDMI outputs can be used directly alongside SDI sources, and seamlessly routed to either HDMI or SDI outputs. The SFP (Small Format Pluggable) cage can be populated with dual SFPs that have fiber optic or other connectors, allowing you to determine the best connector for your installation. Adding SFPs gives you true flexibility in combining electrical BNC, HDMI, and fiber optic inputs and outputs.
- Control from Third-Party Devices
-
- This router can be controlled from third-party devices using serial protocols via TCP/IP, RS-232, and SNMP.
1 Please Note: If RS-232 control is desired, you need to specify at the time of purchase and your unit will come with the connector cable pre-installed. close - General Features
-
- Router for 3G/HD/SD-SDI and HDMI Video
- Dissolve and cut transitions
- Direct take mode
- Salvo registers with the ability to save/recall from your tablet or computer
- System-wide configuration registers
- Audio level adjustments
- Front panel and web-based control
- Safe driving mode
- Built-in test signal generators
- Compact and rugged
- Genlockable and timeable
- Automatic input cable equalization
In the Box Ensemble Designs BrightEye NXT 410 Clean HDMI Router Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ensemble Designs BrightEye NXT 410 Clean HDMI Router in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEnsemble Designs BENXT-410 Specs | | | Number | 2 to 5, configurable, BNC, and SFP | | Signal Type | 1.485 Gb/s: HD-SDI, SMPTE 274M, 292M, 296M
2.97 Gb/s: HD-SDI, SMPTE 424M, 425M
270 Mb/s: SD-SDI, SMPTE 259M | | Impedance | 75 Ohms | | Return Loss | >15 dB | | Maximum Cable Length | 328.1' (100 m) for 1.485 Gb/s
984.3' (300 m) for 270 Mb/s | | | | Number | 1 | | Type | 1 Vpp composite video, PAL, NTSC, or tri-level sync | | Impedance | 75 Ohms | | Return Loss | >40 dB | | | | Number | 2 to 5, configurable, BNC, and SFP | | Type | 1.485 Gb/s HD-SDI, SMPTE 274M, 292M, 296M
2.97 Gb/s: HD-SDI, SMPTE 424M, 425M
270 Mb/s: SD-SDI, SMPTE 259M | | Processing | 12 and 16-bit | | Impedance | 75 Ohms | | Return Loss | >15 dB | | Maximum Cable Length | 328.1' (100 m) for HD
984.3' (300 m) for SD | | | | Number | Input: 4
Output: 3 | | Type | Input: HDMI 1.3
Output: HDMI 1.3 | | Format | Input: Supports HDMI signals which map to the video standards
Output: Supports HDMI signals which map to the video standards | | | | Supported Standards | 1080p 50, 59.94, 60 Hz / SMPTE 424M, 425M, level A
1080p 23.98, 24, 25 Hz / SMPTE 274M: -9, 10, 11
1080sF 23.98, 24, 25 Hz / RP211: -14, 15, 16
1080i 50, 59.94, 60 Hz / SMPTE 274M: -4, 5, 6
720p 50, 59.94, 60 Hz / SMPTE 296M: -1, 2, 3
625i 50 Hz
525i 59.94 Hz | | | | Power | 12 V, 20 W
100 to 230 VAC modular power supply | | Temperature Range | 32 to 104°F (0 to 40° C) ambient | | Relative Humidity | 0 to 95% (Non-condensing) | | Altitude | 0 to 10000' (0 to 3048 m) | | Dimensions (W × H × D) | 5.6 x 1.7 x 6.8" (14.3 x 4.2 x 17.1 cm) | | Weight | 1 lb (0.5 kg) |
