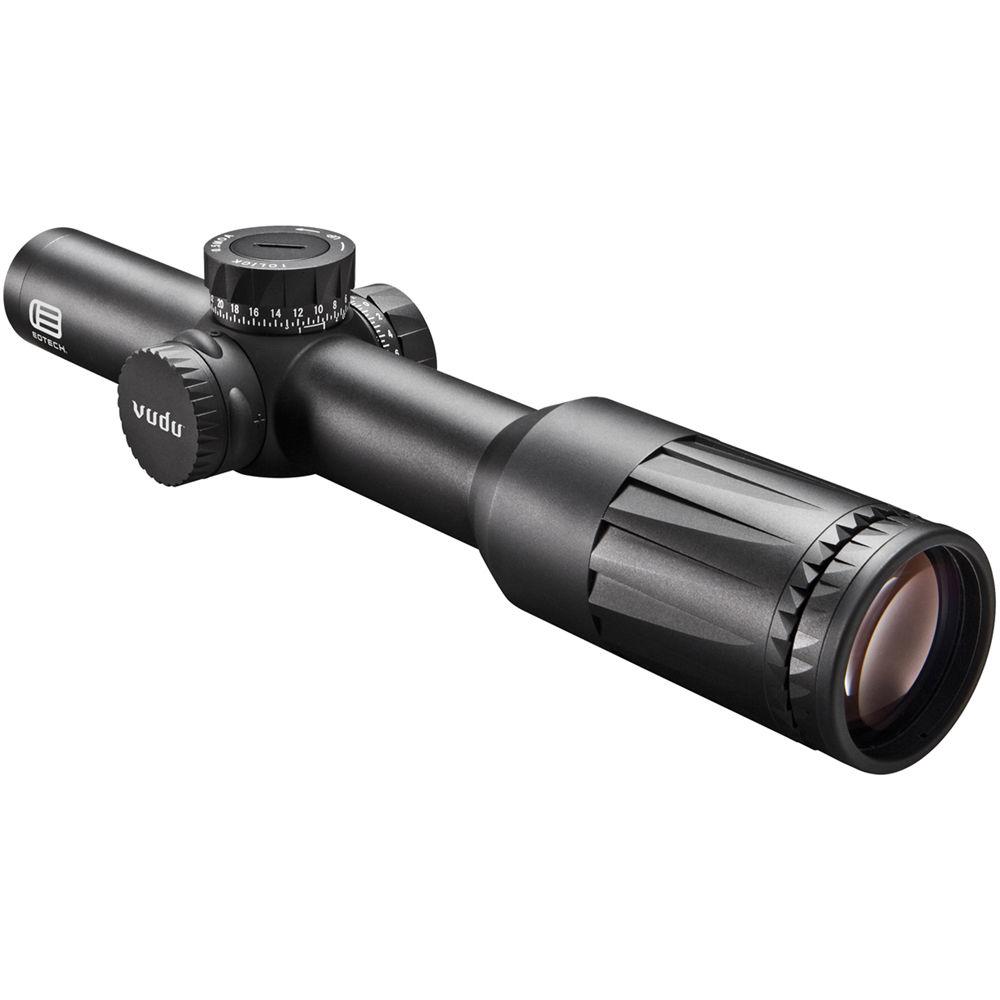

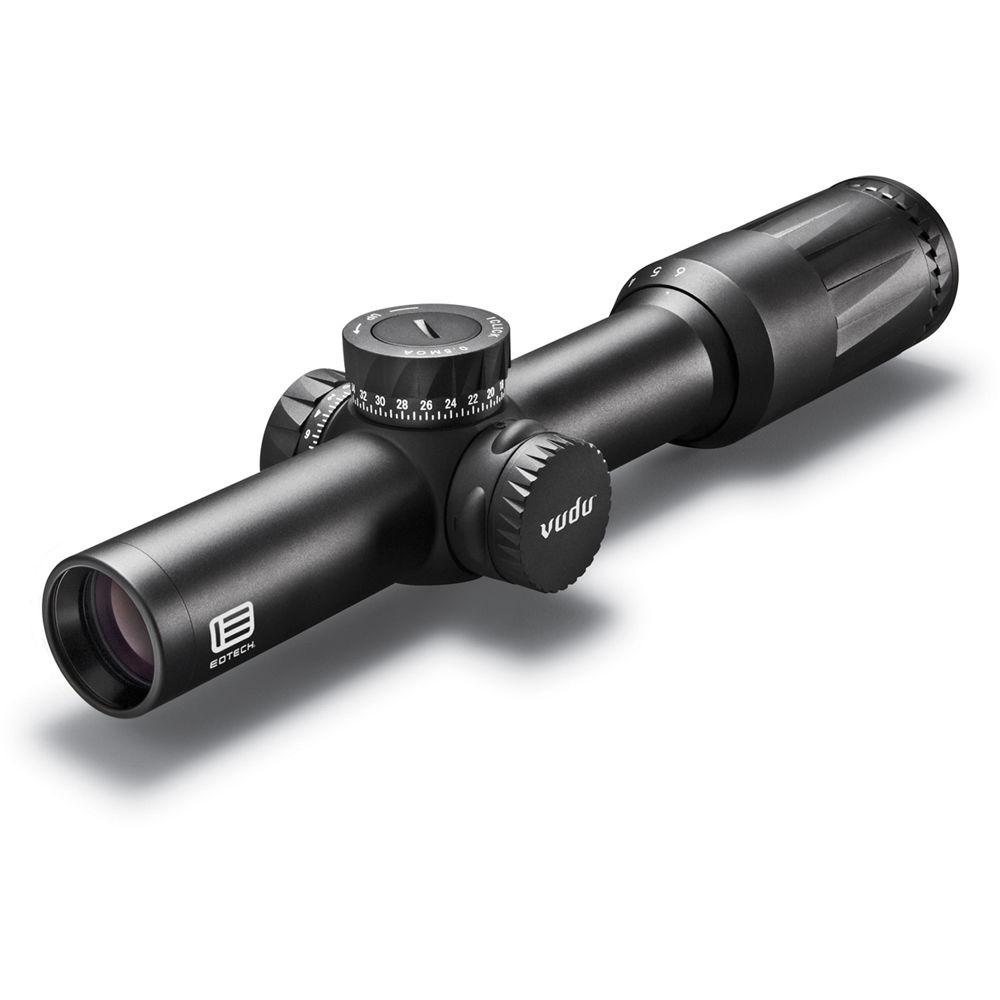

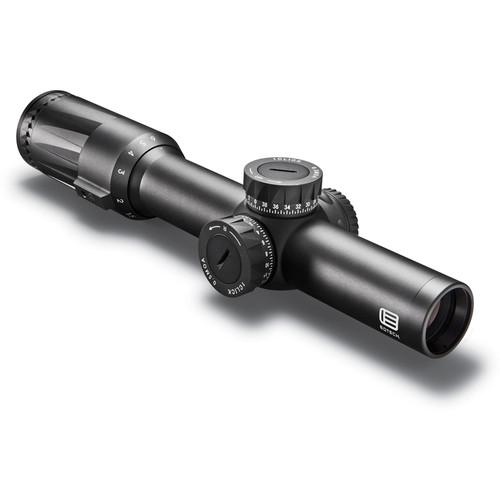

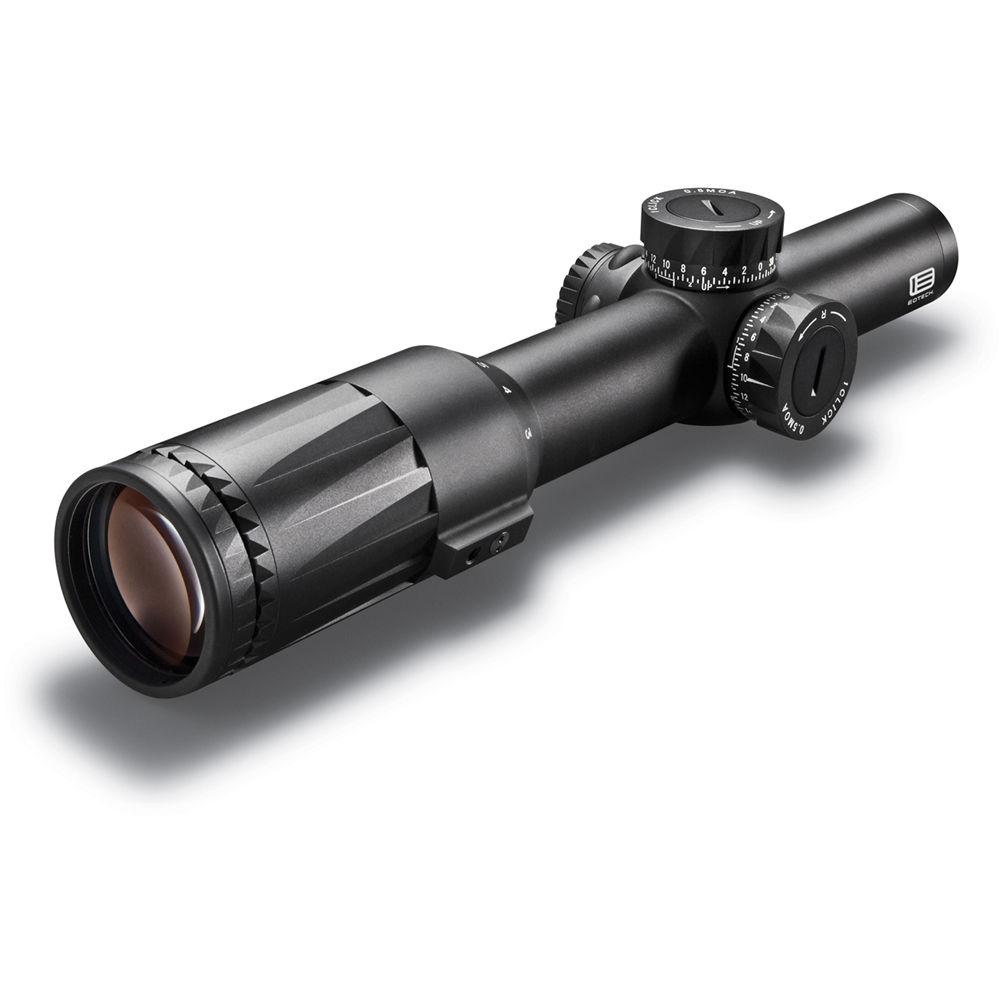

Product description EOtech's 1-6x24 Vudu Precision Riflescope is an equally ideal choice for 3-gun competitions, serious hunting, and use on the AR platform or bolt-action rifles. The optical system features bright and clear XC High-Density glass treated with broadband anti-reflection multi-coatings to deliver bright, clear, low-distortion, and high-contrast images. Also noteworthy is the first focal plane SR1 reticle, which is uniquely designed for fast target acquisitions at both a high and low zoom factor. It features two concentric target circles that allow you to quickly and accurately center on your target. While the outer winged Speed Ring dominates the field of view at low zoom, the fine target circle becomes significant enough to capture targets at higher magnifications. The reticle features a brilliant red illumination with adjustable brightness and an automatic shut-off function, which activates after two hours of non-operation.
The lightweight and durable aluminum housing is coated with a Type III hard anodized finish and features a 30mm single-piece maintube, finger-operated graduated turrets, and a precision fast-focus eyepiece. To provide traction for ease of adjustment, all knobs and rings are knurled. Also included with this optic are a pair of lens covers and a CR-2032 battery. - Speed Ring SR1 Reticle
-
- 1st focal plane
- Illuminated winged Speed Ring
- Milling center cross
- Optimized for 7.62 mm BDC
- Optical Performance
-
- Magnification: 1-6x
- 24mm objective diameter
- XC High Density Glass
- Broadband anti-reflection coatings for better image brightness, clarity, and detail
- Field of view: 102.4 - 16.7' at 100 yd
- Use and Handling
-
- 1/5 MRAD impact point correction
- 29 MRAD Windage and 29 MRAD elevation adjustments
- Long eye relief of 4.1 - 3.5"
- Construction Details
-
- 30mm one-piece maintube
- Aluminum alloy housing
- Type III anodized finish
- Capped finger-operated turrets
- Knurled graduated adjustments
- Fast-focus eyepiece
- Low-profile zoom lever
- Lens covers included
- Shock-resistant
- Fog-resistant
- Water-resistant
UPC: 672294110002 In the Box EOTech 1-6x24 Vudu Precision Riflescope (SR1 Speed Ring Reticle, Flat Black) - CR-2032 Battery
- 2 x Lens Covers
- Limited Lifetime Warranty
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the EOTech 1-6x24 Vudu Precision Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEOTech VDU1-6FFSR1 Specs | | | Magnification | 1 to 6x | | Objective Lens Diameter | 24 mm | | Field of View | 1x: 102.4' @ 100 yd / 34.1 m @ 100 m
6x: 16.7' @ 100 yd / 5.6 m @ 100 m | | Exit Pupil Diameter | 1x: 11.4 mm
6x: 4 mm | | Eye Relief | 3.2 to 3.9" / 82 to 100 mm | | | | Reticle Type | SR1 Reticle (First Focal Plane) | | | | Impact Point Correction | 1/5 MRAD per Click | | Windage Adjustment | 29 MRAD | | Elevation Adjustment | 29 MRAD | | | | Water Resistance | Water Resistant | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Battery Runtime | 500 Hours (Average) | | Dimensions | Length: 10.6" / 270 mm | | Weight | 20.1 oz / 570 g |
