User Manual for EOTech 2.5-10x44 Vudu Precision Riflescope Click to enlarge the picture
Contents of the user manual for the EOTech 2.5-10x44 Vudu Precision Riflescope
- Product category: Riflescopes EOTech
- Brand: EOTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EOTech Riflescopes
 |
User manual for the EOTech 2.5-10x44 Vudu Precision Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EOTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EOTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EOTech product will considerably shorten its lifespan!
|

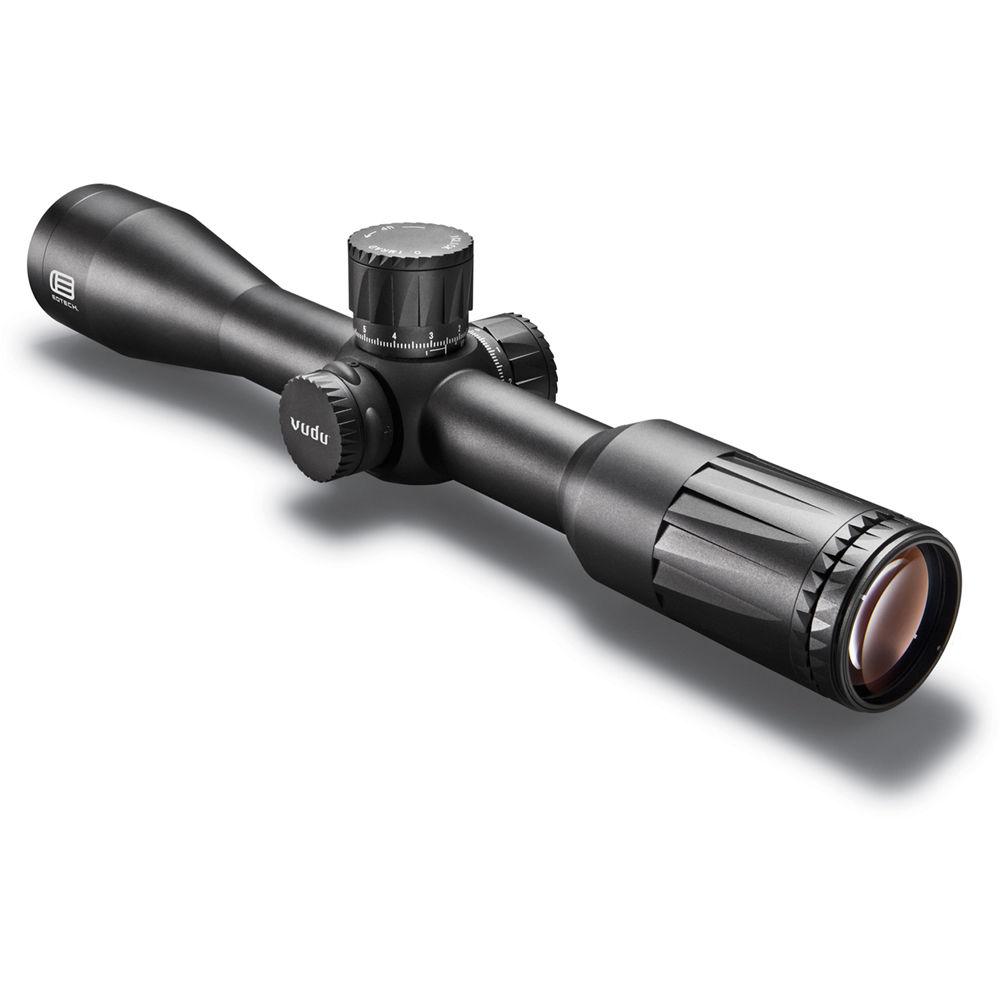

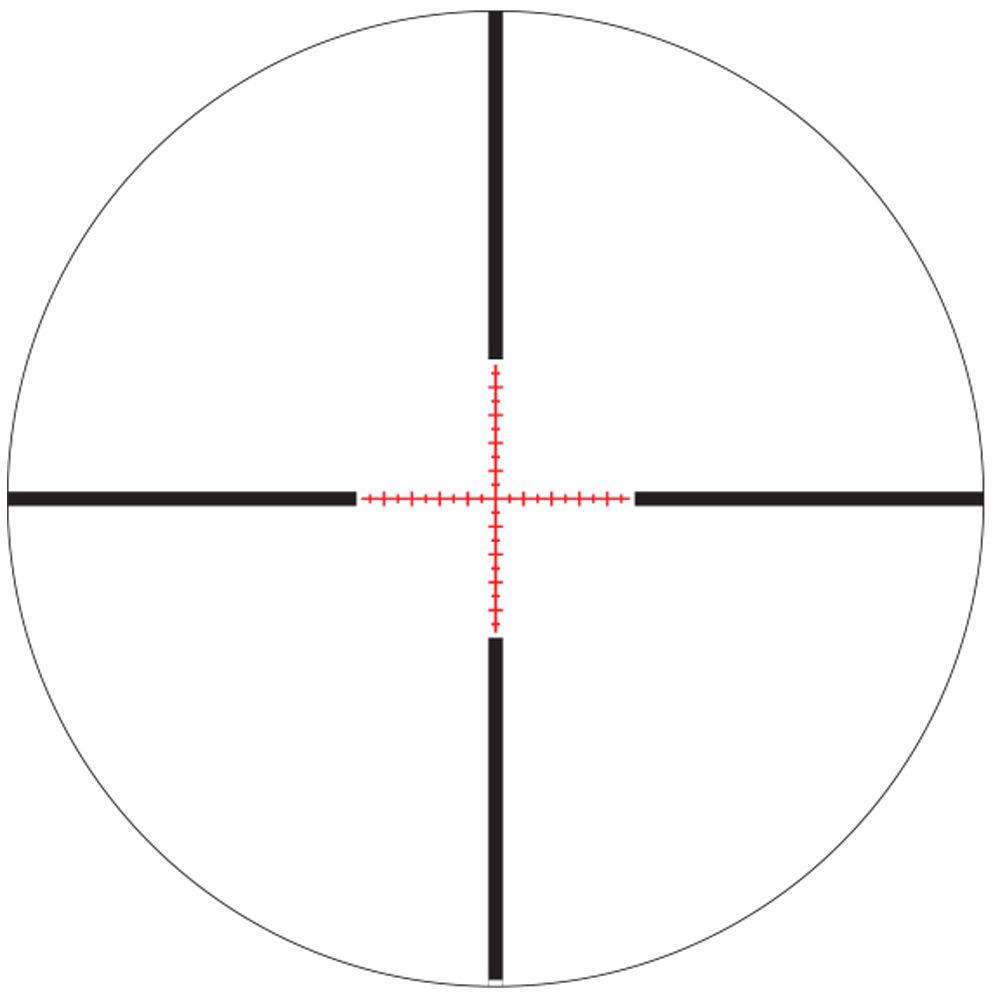

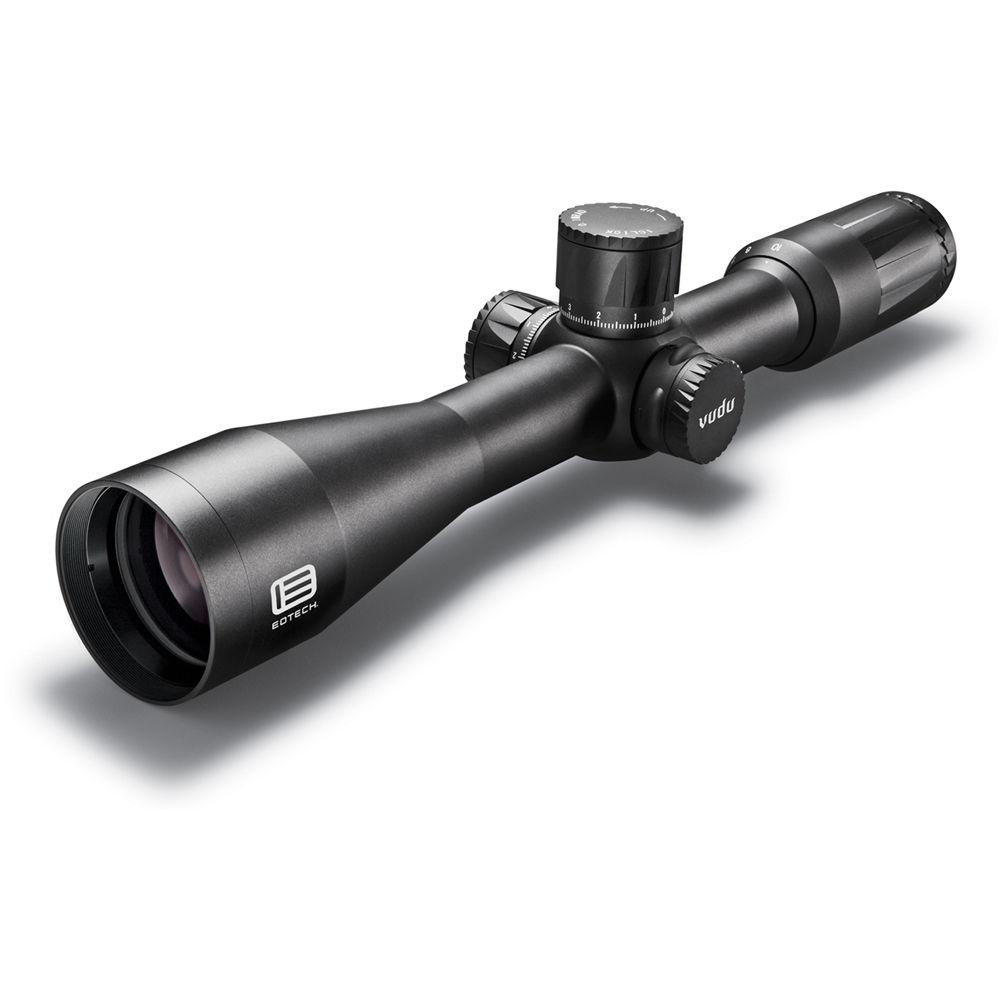

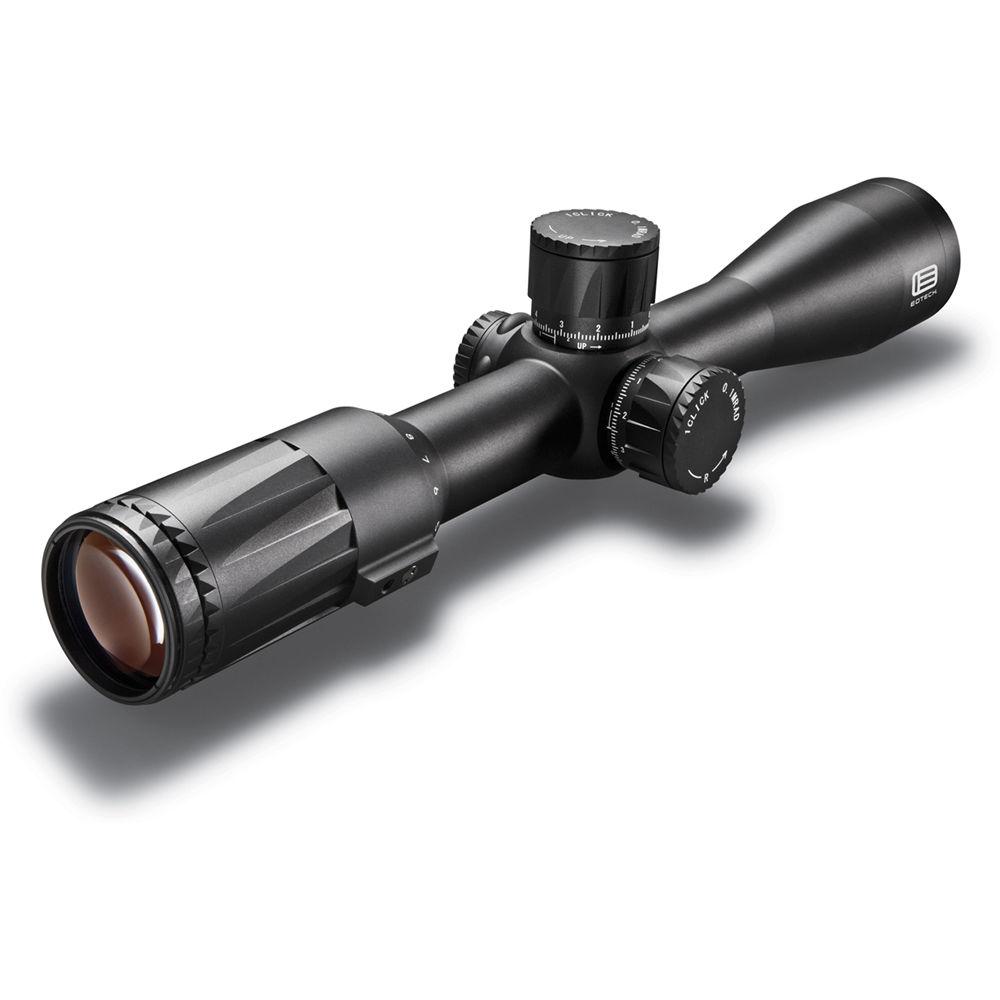

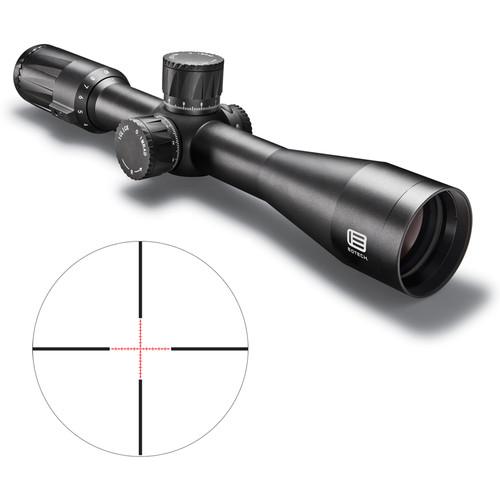

Product description EOTech's 2.5-10x44 Vudu Precision Riflescope is an ideal choice for midrange precision target acquisition. The optical system features bright and clear XC High-Density glass treated with broadband anti-reflection multi-coatings to deliver bright, clear, low-distortion, and high-contrast images. The 44mm objective aperture fills the niche for gathering enough light in most lighting conditions like at dusk or dawn, even where standard apertures fail. At the core of this riflescope, is the first focal plane H59-MRAD reticle, which features four medium posts and an illuminated milling crosshair.
The lightweight and durable aluminum housing is coated with a Type III hard anodized finish and features a 30mm single-piece maintube, finger-operated graduated turrets, and a precision fast-focus eyepiece. To provide traction for ease of adjustment, all the knobs and rings are knurled. Also included with this optic are a pair of lens covers and a CR-2032 battery. - H59-MRAD Reticle
-
- 1st focal plane
- Four medium long posts
- Milling illuminated crosshair
- Variable brightness
- Optical Performance
-
- Magnification: 2.5-10x
- 44mm objective delivers bright images even in low-light conditions
- Broadband anti-reflection coating for better image brightness, clarity, and detail
- XC High Density optical glass provides low-distortion and high-contest images
- Field of view: 41-10' at 100 yd
- Long eye relief of 4.1 - 3.5"
- Use and Handling
-
- 1/10 MRAD impact point correction
- 17 MRAD Windage and 29 MRAD elevation adjustments
- Construction Details
-
- 30mm one-piece maintube
- Aluminum housing
- Type III anodized finish
- Capped finger-operated turrets
- Knurled graduated adjustments
- Fast-focus eyepiece
- Low-profile zoom lever
- Lens covers included
- Shock resistant
- Fog resistant
- Water resistant
UPC: 672294110057 In the Box EOTech 2.5-10x44 Vudu Precision Riflescope (H59-MRAD, Flat Black) - CR-2032 Battery
- 2 x Lens Covers
- Limited Lifetime Warranty
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the EOTech 2.5-10x44 Vudu Precision Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEOTech VDU2-10FFH59 Specs | | | Magnification | 2.5 to 10x | | Objective Lens Diameter | 44 mm | | Field of View | 2.5x: 41.1' @ 100 yd / 13.7 m @ 100 m
10x: 10' @ 100 yd / 3.3 m @ 100 m | | Exit Pupil Diameter | 2.5x: 11.7 mm
10x: 4.5 mm | | Eye Relief | 3.5 to 4.1" / 90 to 105 mm | | | | Reticle Type | MRAD Reticle (First Focal Plane) | | | | Impact Point Correction | 1/10 MRAD per Click | | Windage Adjustment | 17 MRAD | | Elevation Adjustment | 29 MRAD | | | | Water Resistance | Waterproof | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Battery Runtime | 500 Hours (Average) | | Dimensions | Length: 14" / 356 mm | | Weight | 27.2 oz / 770 g |
