User Manual for EOTech 3.5-18x50 Vudu Precision Riflescope Click to enlarge the picture
Contents of the user manual for the EOTech 3.5-18x50 Vudu Precision Riflescope
- Product category: Riflescopes EOTech
- Brand: EOTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EOTech Riflescopes
 |
User manual for the EOTech 3.5-18x50 Vudu Precision Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EOTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EOTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EOTech product will considerably shorten its lifespan!
|

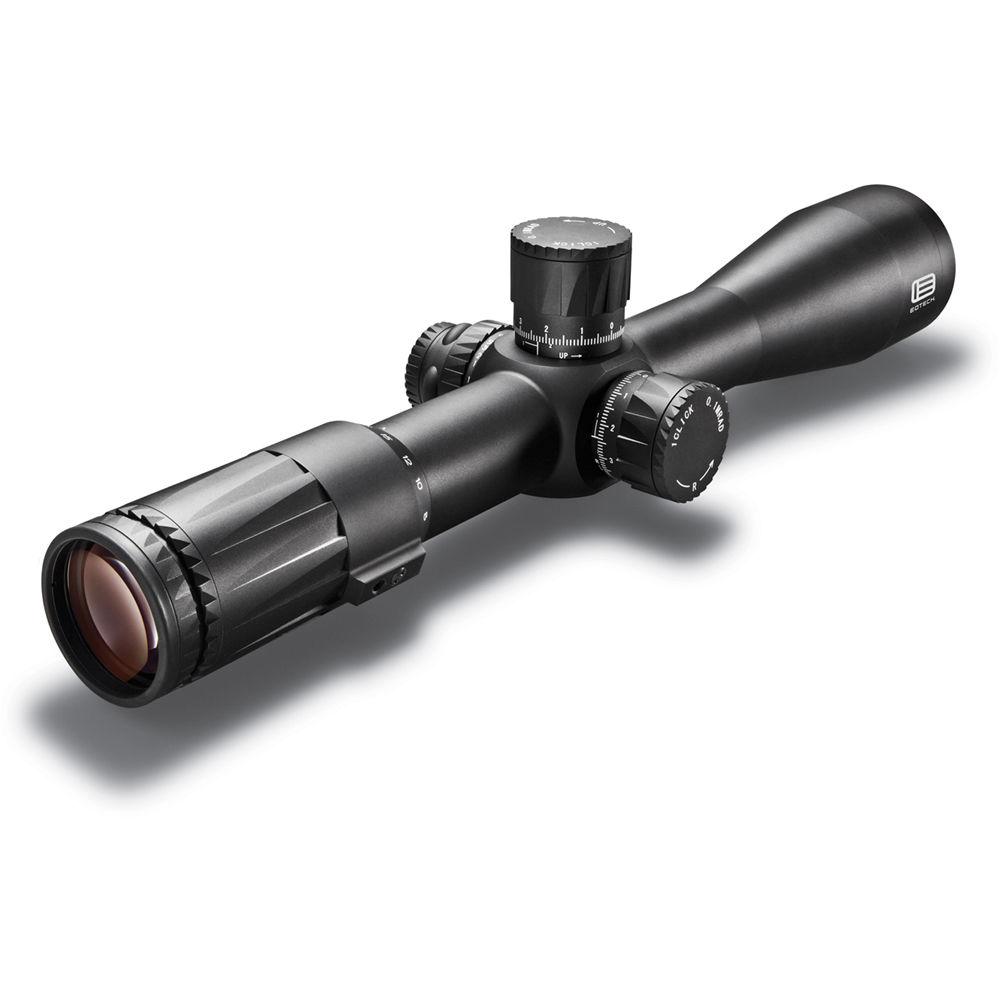

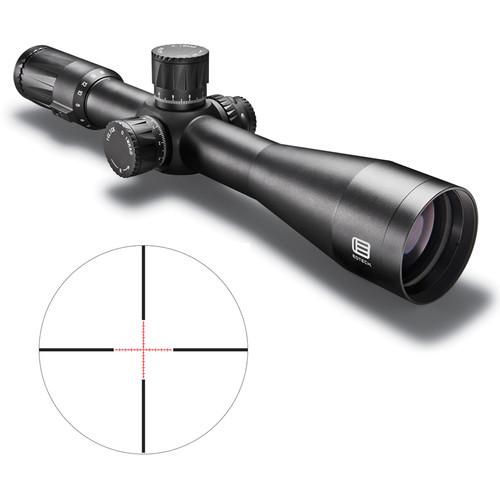

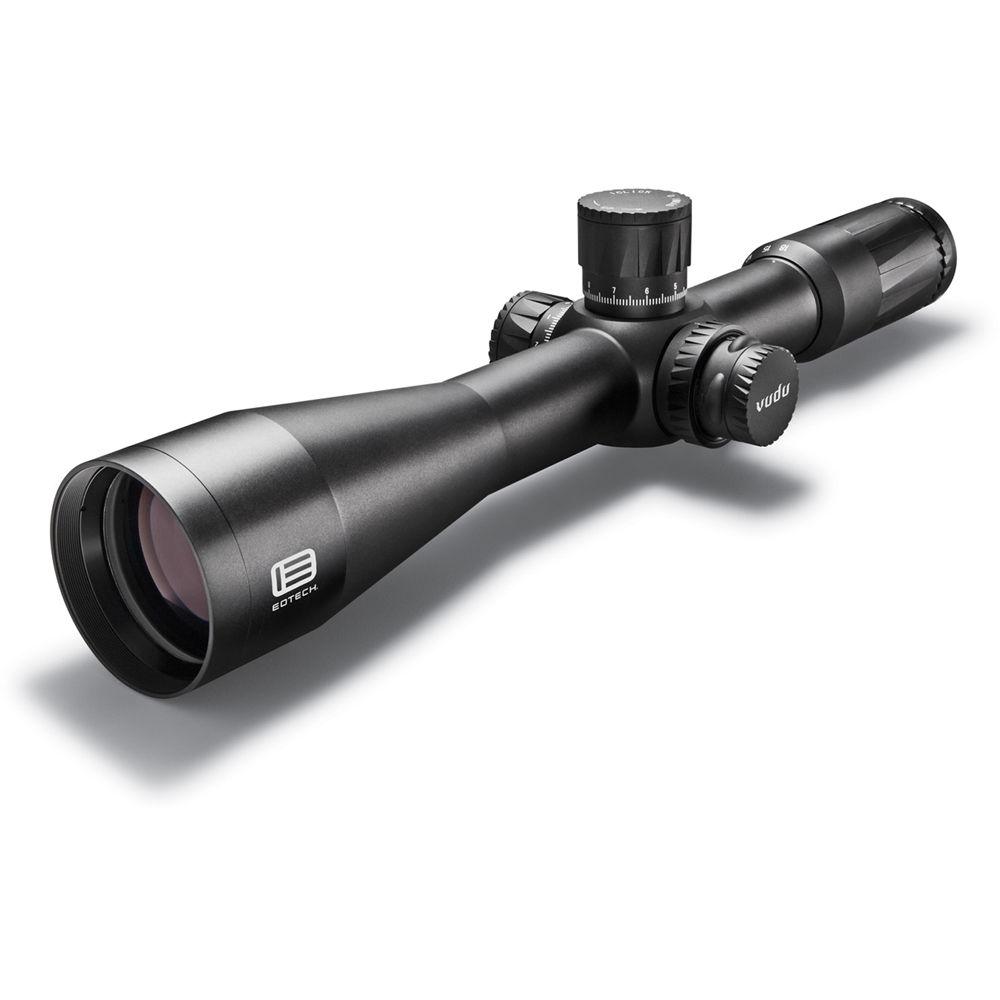

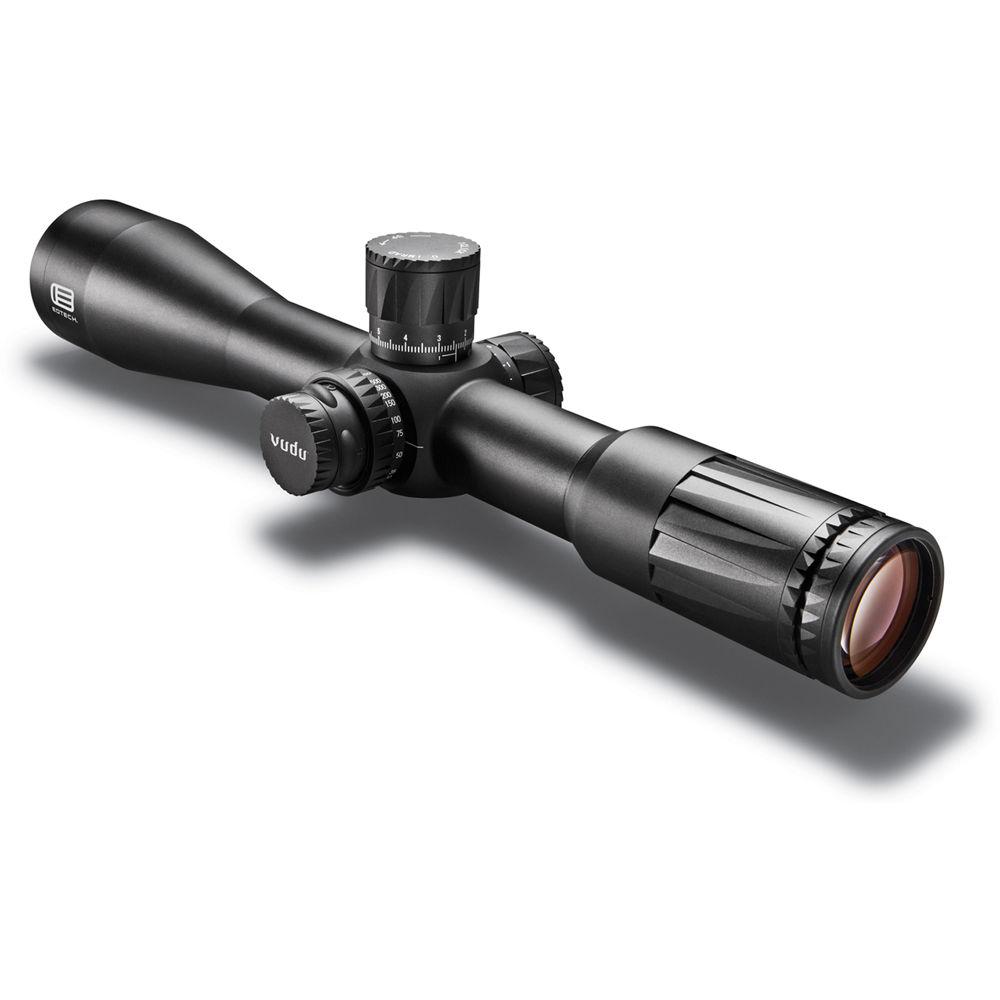

Product description EOtech's 3.5-18x50 Vudu Precision Riflescope is an ideal choice for long-range and precision target acquisitions. The optical system features bright and clear XC High-Density glass treated with broadband anti-reflection multi-coatings to deliver bright, clear, low-distortion, and high-contrast images. The wide 50mm objective aperture fills the niche for gathering enough light to produce visible images in the most challenging lighting conditions, where standard apertures fail. The scope is equipped with a H59-MRAD reticle in the first focal plane. It offers a brilliant red illumination with adjustable brightness that automatically shuts off after two hours of non-operation and has a parallax-free range from 15 yd to infinity.

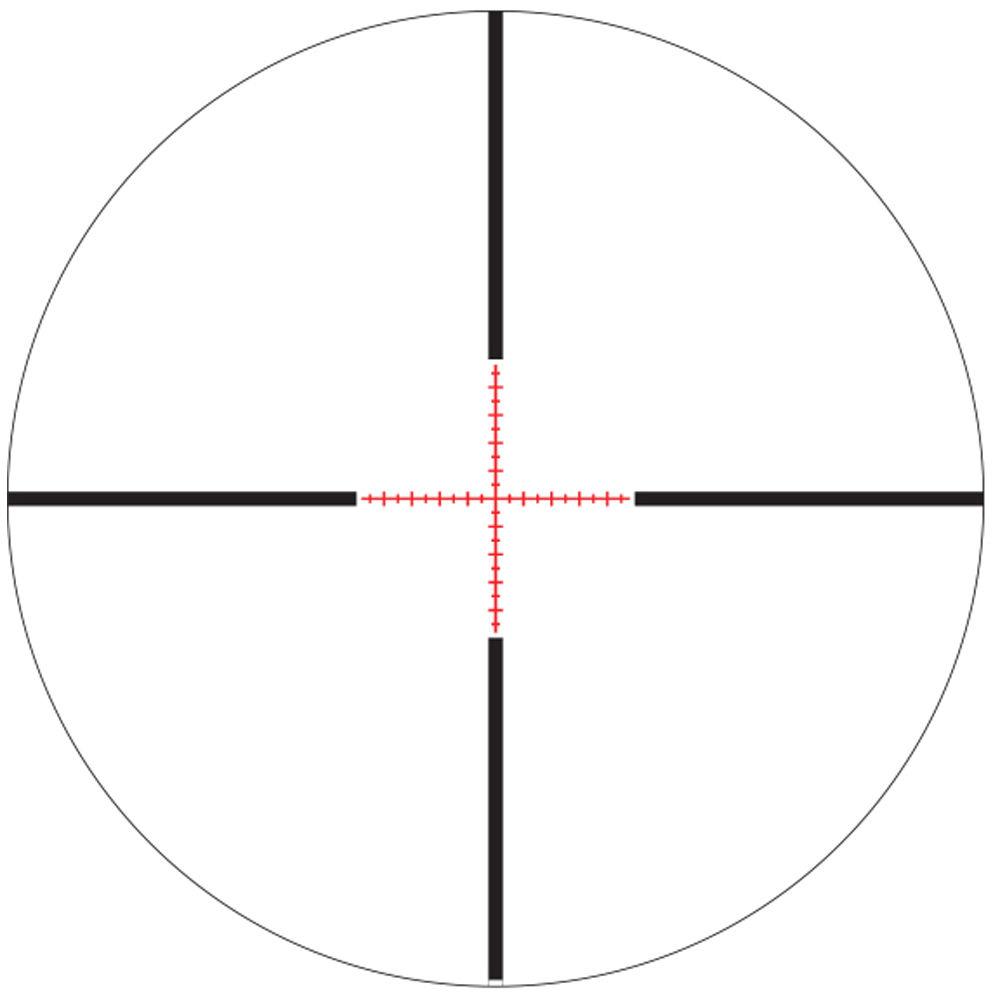

The lightweight and durable aluminum housing is coated with a Type III hard anodized finish and features a 30mm single-piece maintube, finger-operated graduated turrets, and a precision fast-focus eyepiece. To provide traction for ease of adjustment, all knobs and rings are knurled. Also included with this optic are a pair of lens covers and a CR-2032 battery. - H59-MRAD Reticle
-
- 1st focal plane
- Four medium long posts
- Milling illuminated crosshair
- Parallax correction from 15 yd to infinity
- Variable illumination
- Optical Performance
-
- Magnification: 3.5-18x
- 50mm objective diameter improves image brightness in challenging light conditions
- XC High Density glass delivers clarity, resolution, and contrast
- Broadband anti-reflection coatings for better image brightness, clarity, and detail
- Field of view: 29.5 - 15.7' at 100 yd
- Long eye relief of 4.0 - 3.5"
- Use and Handling
-
- 1/10 MRAD impact point correction
- 80 MRAD Windage and 100 MRAD elevation adjustments
- Construction Details
-
- 34mm one-piece maintube
- Aluminum alloy housing
- Type III anodized finish
- Capped finger-operated turrets
- Knurled graduated adjustments
- Fast-focus eyepiece
- Low-profile zoom lever
- Lens covers included
- Shock-resistant
- Fog-resistant
- Water-resistant
UPC: 672294110088 In the Box EOTech 3.5-18x50 Vudu Precision Riflescope (H59-MRAD Reticle, Flat Black) - CR-2032 Battery
- 2 x Lens Covers
- Limited Lifetime Warranty
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the EOTech 3.5-18x50 Vudu Precision Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEOTech VDU3-18FFH59 Specs | | | Magnification | 3.5 to 18x | | Objective Lens Diameter | 50 mm | | Field of View | 3.5x: 29.5' @ 100 yd / 9.8 m @ 100 m
18x: 5.7' @ 100 yd / 1.9 m @ 100 m | | Exit Pupil Diameter | 3.5x: 11.2 mm
18x: 2.8 mm | | Eye Relief | 3.5 to 4.4" / 90 to 101 mm | | | | Reticle Type | MRAD Reticle (First Focal Plane) | | | | Impact Point Correction | 1/10 MRAD per Click | | Windage Adjustment | 80 MRAD | | Elevation Adjustment | 100 MRAD | | Parallax Correction | Yes, 15 yd / 13.7 m to Infinity | | | | Water Resistance | Water Resistant | | | | Maintube Diameter | 34 mm | | Battery | 1 x CR2032 | | Battery Runtime | 500 Hours (Average) | | Dimensions | Length: 14.8" / 37.6 cm | | Weight | 33.6 oz / 952 g |
