User Manual for EOTech 512 XBOW Sight Click to enlarge the picture
Contents of the user manual for the EOTech 512 XBOW Sight
- Product category: Red Dot/Holographic Sights EOTech
- Brand: EOTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EOTech Red Dot/Holographic Sights
 |
User manual for the EOTech 512 XBOW Sight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EOTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EOTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EOTech product will considerably shorten its lifespan!
|

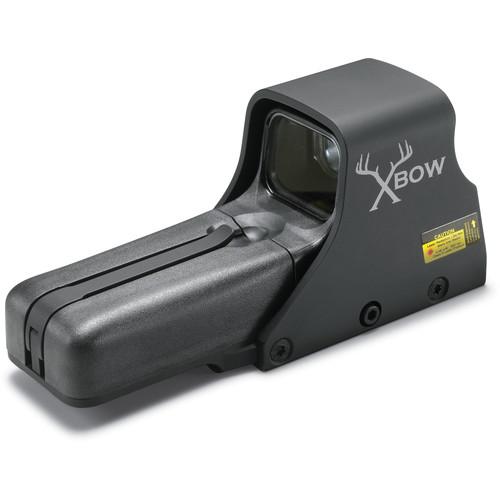

Product description Designed for crossbow shooters, the 512 XBOW Sight from EOTech features an illuminated holographic X-Bow reticle, ranging chart, multicoated optics, and waterproof and fog-resistant construction. The sight is intended to be used with crossbows for hunting deer and other game at the ranges from 20 to 60 yd. It offers 1x magnification, 90' at 100 yd linear field of view, and multicoated optical elements. You can compensate for crosswinds and ballistic drop with a total of 80 MOA of windage and elevation adjustments. The increment is 1/2 MOA per click.

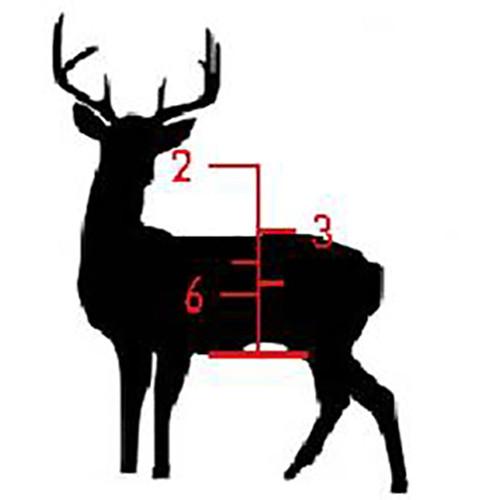

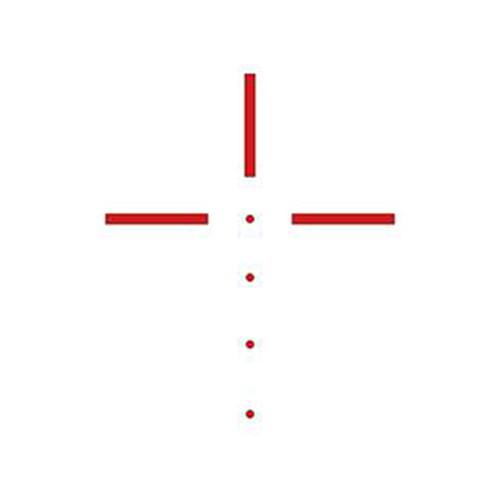

The X-Bow Reticle features four laser-illuminated 1 MOA dots. These dots provide precise points of aim throughout the range of your crossbow. In addition to the aiming reticle, a Range Finder is included to assist in determining the distance between you and the target. This range finder can provide distances from 20 to 60 yards with increments of 10 yards.
The housing is made of lightweight aluminum and offers a waterproof and fog-resistant performance. Its mount is compatible with Picatinny and Weaver style rails. - Optical Performance
-
- 1x magnification
- Multiple anti-reflective coatings
- Linear field of view: 90' @ 100 yd
- Window dimensions: 1.2 x 0.85"
- Front window: 1/8" glass
- Rear window: 3/16" laminate
- X-Bow Ranging Reticle
-
- Holographic reticle
- Four 1 MOA dots
- Range Finder provides ranges from 20-60 yd with 10-yd increments
- Illumination: 0.08mW/650nm Class II laser
- 20 illumination levels
- Use and Handling
-
- 1/2 MOA impact point correction
- 80 MOA windage and elevation
- Battery indicator
- Auto shut-off after 8 or 4 hours
- Runtime of 600 hr
- Construction Details
-
- Aluminum housing with black finish
- Compatible with Picatinny/Weaver rails
- Waterproof and submersible to 10'
- Fog-resistant
UPC: 672294600466 In the Box EOTech 512 XBOW Sight (X-Bow Ranging Reticle) - 2 x AA Batteries
- Knurled Weaver Bolt
- 7/64 Allen Key
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the EOTech 512 XBOW Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEOTech Model 512 Specs | | | Power Source | 2 x AA | | Runtime | 600 to 1000 Hours | | | | Impact Point Correction | 1/2 MOA | | Windage Adjustment | 80 MOA | | Elevation Adjustment | 80 MOA | | | | Laser Type | Class 2 | | Laser Power | 0.08 mW | | Laser Wavelength | 650 nm | | | | Water Resistance | Waterproof | | Fogproof | Yes | | Dimensions | L: 5.6 x W: 2.5 x H: 2.0" / L: 14.2 x W: 6.4 x H: 5.1 cm | | Weight | 11.1 oz / 314.7 g | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 7.4 x 7.2 x 3.6" |
