User Manual for EOTech 8-32x50 Vudu Precision Riflescope Click to enlarge the picture
Contents of the user manual for the EOTech 8-32x50 Vudu Precision Riflescope
- Product category: Riflescopes EOTech
- Brand: EOTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EOTech Riflescopes
 |
User manual for the EOTech 8-32x50 Vudu Precision Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EOTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EOTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EOTech product will considerably shorten its lifespan!
|

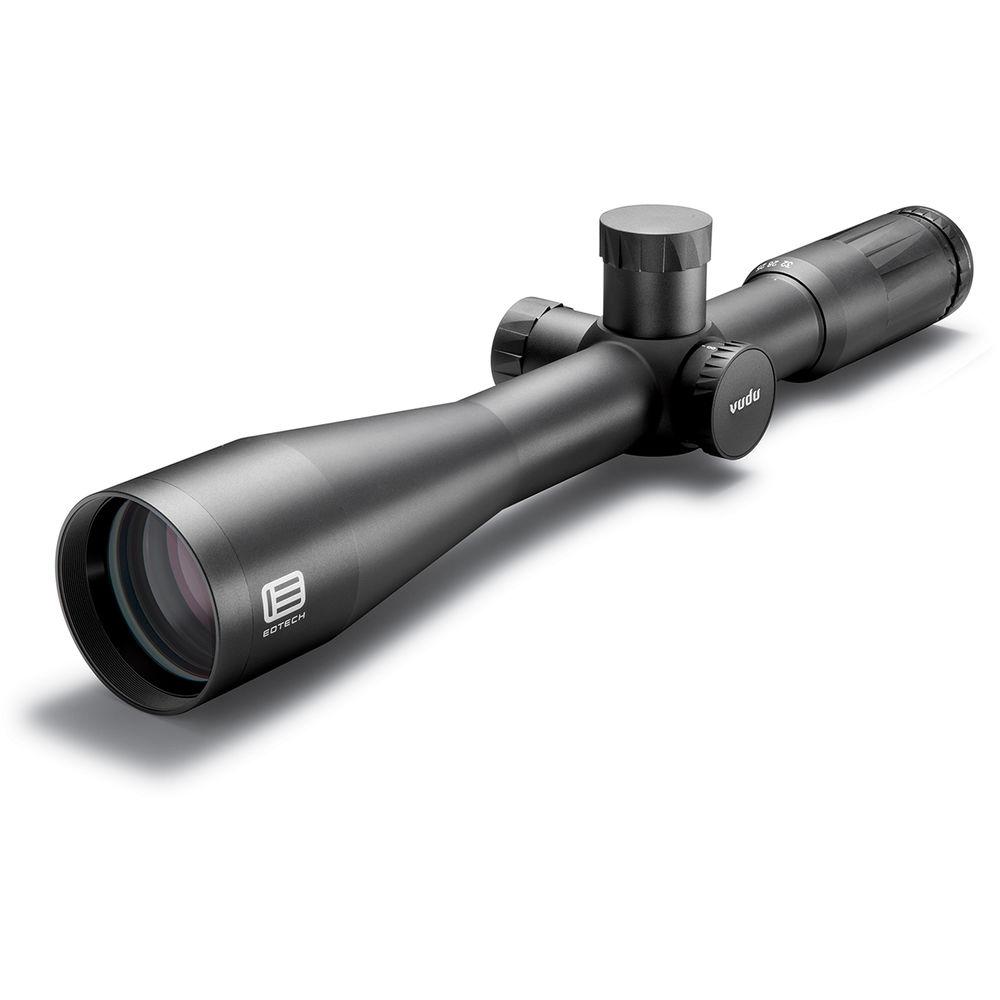

Product description Designed for pinpoint accuracy in long-range shooting, the EOTech 8-32x50 Vudu Precision Riflescope offers powerful magnification and fine adjustments to compensate for bullet drop and wind. Its easy-to-read, competition-style capped turrets adjust elevation and windage at 1/8 MOA per click. The optical system features bright and clear XC High-Density glass treated with broadband anti-reflection multi-coatings to deliver bright, clear, low-distortion, and high-contrast images. An HC2 reticle is in the second focal plane. The 50mm objective lens gathers ample light for a bright, sharp image even in lower-light conditions. The lightweight and durable aluminum housing is coated with a Type III hard anodized finish. - Optical Performance
-
- Magnification: 8-32x
- 50mm objective diameter for bright image in lower light conditions

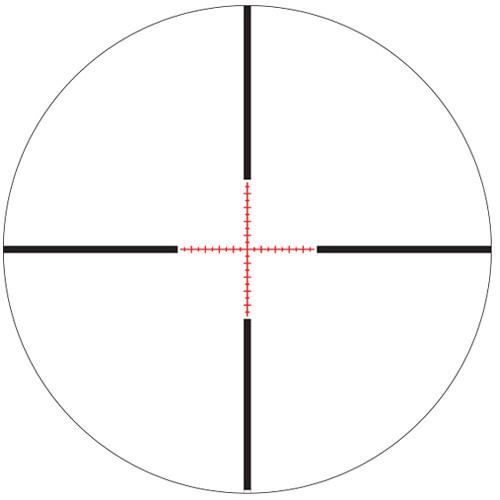

- HC2 MOA reticle in second focal plane
- XC High-density glass delivers clarity, resolution, and contrast
- Broadband anti-reflection coatings for better image brightness, clarity, and detail
- Field of view: 13.2 - 3.3' at 100 yd
- Use and Handling
-
- 1/8 MOA impact point correction
- 80 MOA windage and 100 MOA elevation adjustments
- Capped competition-style turrets
- Parallax adjustment
- Construction Details
-
- 34mm one-piece maintube
- Aluminum alloy housing
- Type III anodized finish
- O-ring sealed and nitrogen purged for waterproof and fogproof performance
- Knurled graduated adjustments
- Fast-focus eyepiece
- Sunshade & lens covers included
UPC: 672294110101 In the Box EOTech 8-32x50 Vudu Precision Riflescope (HC2-MOA Reticle) CR-2032 Battery Sunshade Limited Lifetime Warranty Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EOTech 8-32x50 Vudu Precision Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEOTech VDU8-32SFHC2 Specs | | | Magnification | 8 to 32x | | Objective Lens Diameter | 50 mm | | Field of View | 8x: 13.2' @ 100 yd / 4 m @ 100 m
32x: 3.3' @ 100 yd / 1 m @ 100 m | | Exit Pupil Diameter | 8x: 5.3 mm
32x: 1.6 mm | | Eye Relief | 3.9" / 98 mm | | | | Reticle Type | HC2 Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/8 MOA per Click | | Windage Adjustment | 80 MOA | | Elevation Adjustment | 100 MOA | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 34 mm | | Battery | None | | Dimensions | Length: 13.2" / 38.5 cm | | Weight | 32.7 oz / 926 g |
