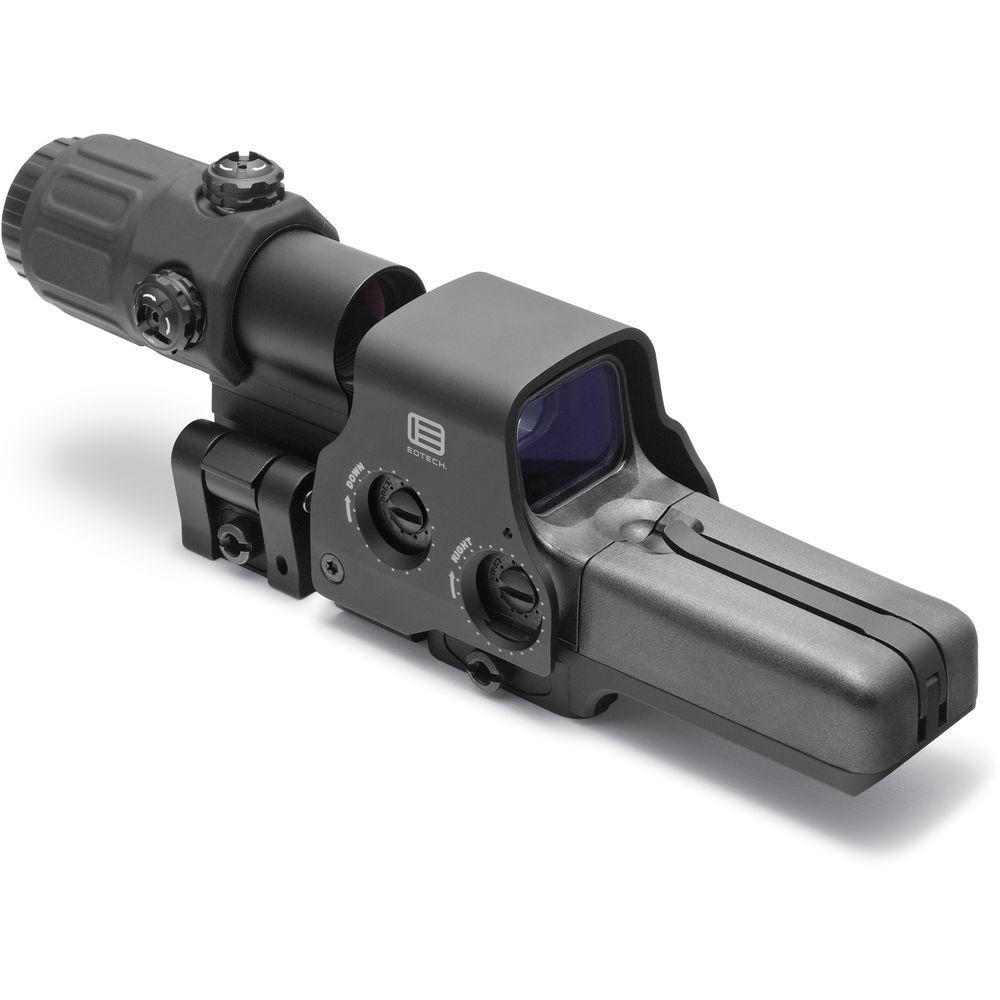

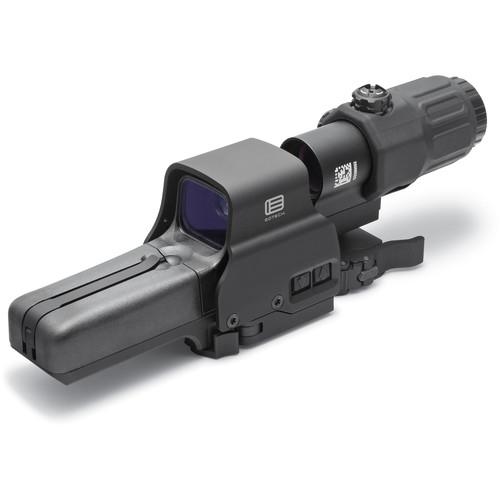

Product description EOTech updated their Holographic Hybrid Sight line with the creation of the HHS III 518.2 with G33.STS Magnifier, that bundles a compact holographic weapon sight with a 3x magnifier to increase the sight's usable range.
The Model 518 Holographic Weapon Sight is built to conserve rail space while enabling rapid both-eyes-open sighting and tracking in a variety of conditions. This model's reticle features a 68 MOA outer ring with quadrant ticks and a 1 MOA center aiming dot for use in close to medium range encounters. Below the first dot is a second dot for long-range use with the magnifier.

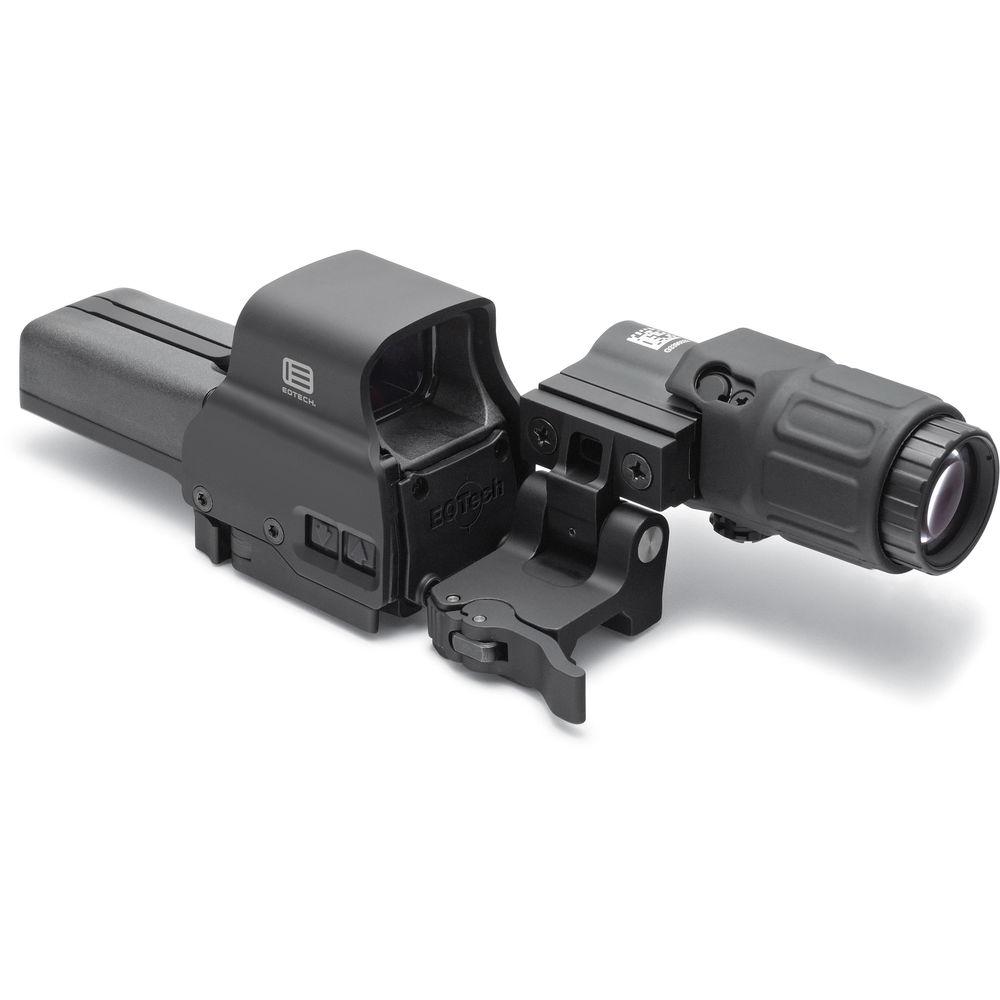

The G33.STS magnifier provides a 3x power to increase the usable range of the sight and features Switch-to-Side functionality. This STS mount allows the user to move the magnifier to the side for close to mid-range use, or quickly move it into place in front of the sight to engage at great distances. All this is done without having to remove the magnifier from the rail, for fast transitions.
Both the sight and magnifier are submersible and come with integrated Picatinny/Weaver quick release rail mounts for easy removal and re-mounting. - Model 518 Holographic Sight (Dual Dot Reticle, Black) EOTech added a dual dot reticle option to the black Model 518 Holographic Weapon Sight (HWS) to compensate for bullet drop at longer distances. Designed to allow fast and easy target acquisition and tracking, with small to medium caliber platforms, it is also compatible with magnifiers to extend the sight's reach for further accuracy. The 518 features an illuminated holographic red dot reticle, anti-reflection multi-coated optics, a 90' field of view at 100 yards, and an unlimited eye relief to ensure that users maintain their situational awareness - especially when moving quickly.
- Optical Performance
-
- 1x magnification
- 1.2x0.85" window
- Anti-reflective coated optics
- 90' field of view at 100 yd
- Front window: 0.125" thick glass
- Rear window: 0.1875" laminate
- Reticle
-
- Dual red dot reticle
- 1 MOA aiming dots
- 68 MOA circle with quadrant ticks
- Illumination: 0.08mW / 650nm Class II laser
- 20 selectable intensity levels
- Use and Handling
-
- Control buttons and adjustment dials located on the side for use with magnifiers
- 0.5 MOA per click impact point correction
- ±40 MOA windage and elevation adjustment range
- 10 MOA travel per full rotation
- Auto shut off, selectable at either 8 or 4 hours
- Up to 1000 h continuous runtime
- Digitally regulated output maintains consistent reticle intensity throughout battery charge
- Battery level indicator: Reticle blinks when available charge is at or below 20%
- Construction Details
-
- Lightweight aluminum housing
- Corrosion and scratch-resistant black anodized finish
- Quick release Picatinny/Weaver rail mount
- Self-adjusting mechanism compensates for variation in tolerances to keep the sight centered on the rail
- Waterproof and submersible to 10'
- Internally fog-resistant
- Inset controls with no protruding knobs, battery compartments, or rings obscuring the target
- Runs on two AA batteries - lithium, alkaline, or rechargeable
- Weight: 13.8 oz
UPC: 672294600589 - EOTech G33.STS 3x Magnifier with Mount (Black) The matte black EOTech G33.STS 3x Magnifier from L3 comes with the Switch to Side (STS) quick-release mount, which allows the shooter to switch to unmagnified viewing simply by pushing the G33 to the side. For cowitnessing raised iron sights, the STS mount comes with an optional 7mm riser. The G33 magnified optic features an improved 2" eye relief compared to previous EOTech magnifiers, and its tool-less design enables quick windage and elevation adjustments by hand. A compact footprint and user-friendly handling are complemented by the magnifier's o-ring sealed weatherproof housing.
- Tool free windage and elevation adjustments
- Quick-release STS dovetail mount locks the G33 to the side
- Included 7mm riser enables cowitnessing with raised iron sights
- Fogproof housing is submersible to 33 ft
- Non-reflective black finish
UPC: 672294300380 In the Box Bundle Items Model 518 Holographic Sight (Dual Dot Reticle, Black) EOTech G33.STS 3x Magnifier with Mount (Black) Table of Contents
|
Upload User Manual
Have you got an user manual for the EOTech Holographic Hybrid Sight III 518.2 with G33.STS Magnifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Model 518 Holographic Sight (Dual Dot Reticle, Black)
| | | Power Source | 2 x AA | | Runtime | 600 to 1000 Hours | | Sight Window Dimensions | 1.2 x 0.8" / 30 x 23 mm | | Mounting | Picatinny / Weaver | | | | Magnification | 1 x | | Field of View | 90' @ 100 yd / 29.9 m @ 100 m | | | | Impact Point Correction | 1/2 MOA | | Windage Adjustment |
