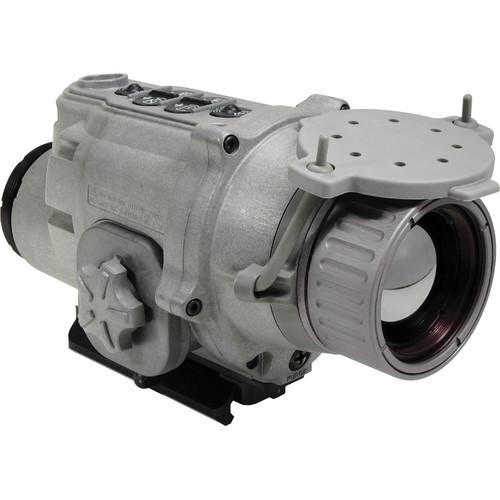

Product description The gray Light Weapon Thermal Sight (LWTS) from EOTech is a multi-purpose thermal imager featuring an uncooled Ultra VOx thermal detector that captures 640x480 17µm resolution images. By distinguishing slight differences in the heat of objects within the field of view, thermal imagers are capable of seeing through smoke, fog, and dust—day or night.EOTech equipped the LWTS with a range of image adjustment functions that allow the operator to optimize the transmitted image for their targeting or recording task. In addition to Black Hot and White Hot modes, the sight features an automatic gain control system for image optimization. Four reticle patterns, each selectable in black or white, allows the operator to select a display that maximizes contrast and reticle visibility against the thermal landscape.The LWTS can be used hand-held or mounted on any Picatinny rail system and can be placed on a firearm in a stand-alone configuration or used in-line with a magnified day optic. Also, an RS-170 Real Time Video In/Out capability allows remote viewing of the thermal image. - Imaging Performance
-
- 640x480 uncooled micro bolometer, 17µm pixel size
- Ultra VOx thermal imaging
- Optical magnification: 1x
- Digital zoom: 2x
- Angle of view: 14.8 x 7.1°
- 10' / 3 m close focus distance
- System Features
-
- RS-170 video output/input
- Accepts 6V DC external power supply
- Tethered flip-down objective cover
- Shuttered rubber eyecup minimizes light splash
- Interface and Controls
-
- Polarity modes: White Hot, Black Hot
- Reticle options: M4/M16, M136, 5 MIL, None
- Reticle color: Black, White
- Brightness adjustment
- Drop-down menu navigation
- Construction Details
-
- Includes throw-lever quick-release Picatinny mount
- Operating temperature: -40 to 120°F
- Weight: 1.85 lb with batteries
- Uses 4 AA lithium batteries
UPC: 672294450139 In the Box EOTech Light Weapon Thermal Weapon Sight (LWTS) 640x480 Soft Carrying Case Lens Cleaning Towlettes 4 x AA Lithium Batteries Box Wrench, 3/8" Interface Hood Interface Hood (Long) Removable Eyecup Eyepiece Adapter Ring Battery Pack, Spare Battery Pack Protective Case RCO Shroud M68 CCO Shroud Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EOTech Light Weapon Thermal Weapon Sight 640x480 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEOTech LWTS Specs | Array Configuration | 640 x 480 uncooled micro bolometer | | Pixel Size | 17 µm | | Refresh Rate | Not specified by manufacturer | | Magnification | 1x | | Angle of View | 14.8 x 7.1° | | Minimum Focus Distance | 9.8' / 3.0 m | | Digital Zoom | 2x | | Video Output Format | RS-170 | | Power Source | (4) AA lithium batteries | | Runtime | Up to 10 hours of continuous operation at 77.0°F / 25.0°C | | Dimensions | 6.7 x 3.6 x 3.9" / 17.0 x 9.1 x 9.9 cm | | Weight | 1.9 lb / 0.8 kg | | | | Package Weight | 2.6 lb | | Box Dimensions (LxWxH) | 11.0 x 5.8 x 5.4" |
