User Manual for EOTech M2124LR Gen 3 Clip-On Night Vision Weapon Sight Click to enlarge the picture
Contents of the user manual for the EOTech M2124LR Gen 3 Clip-On Night
- Product category: Day/Night Systems EOTech
- Brand: EOTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EOTech Day/Night Systems
 |
User manual for the EOTech M2124LR Gen 3 Clip-On Night contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EOTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EOTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EOTech product will considerably shorten its lifespan!
|

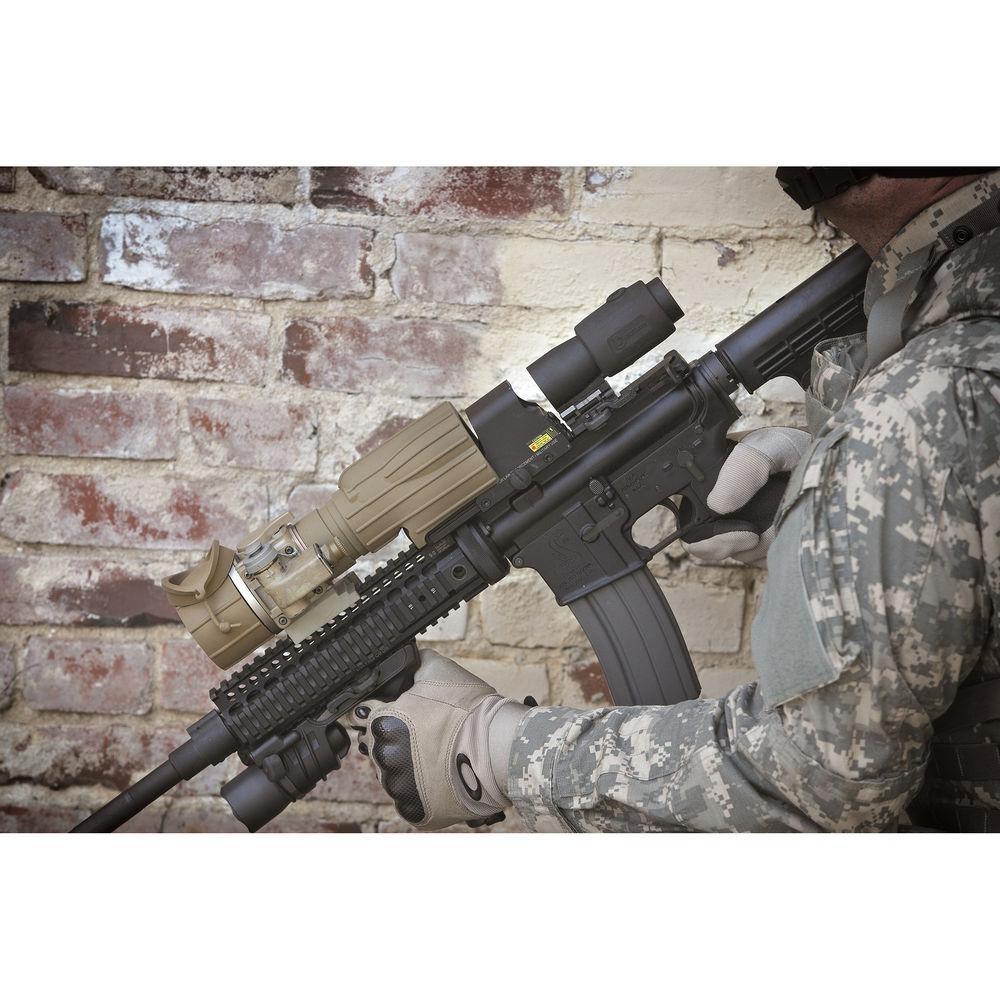

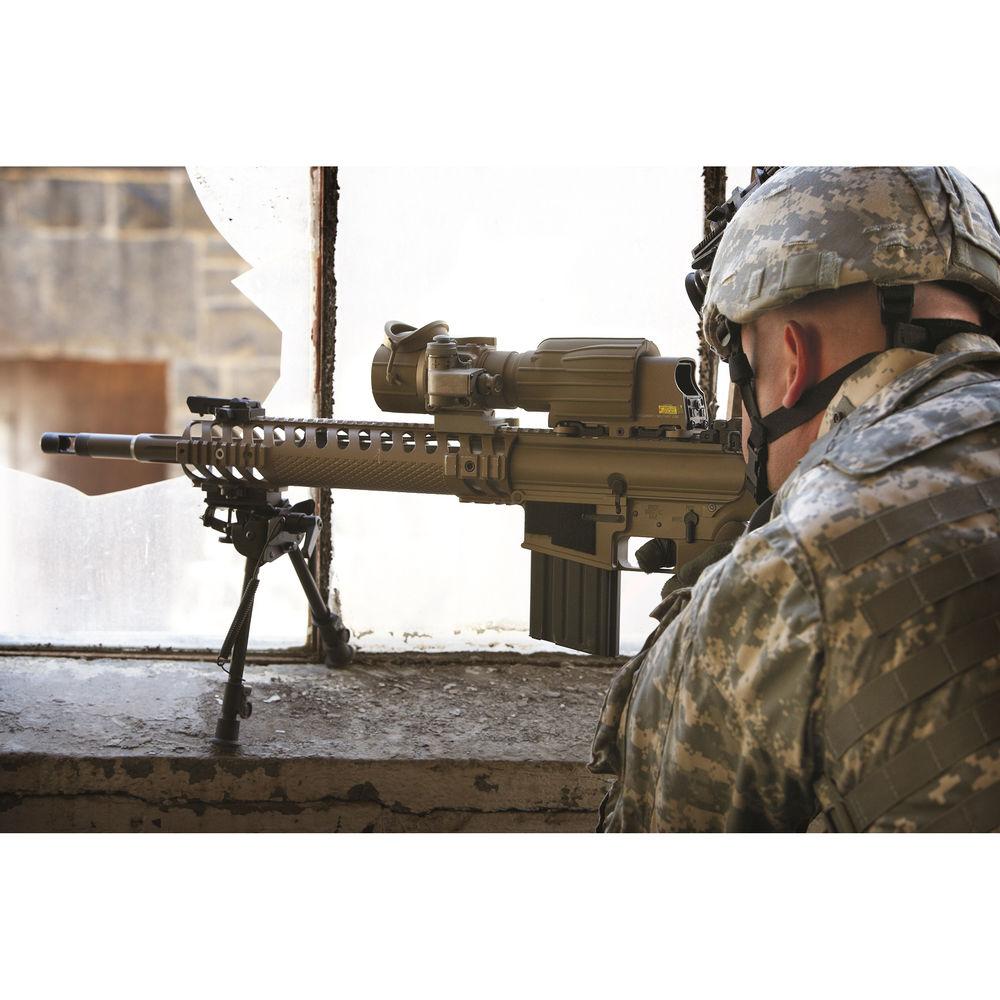

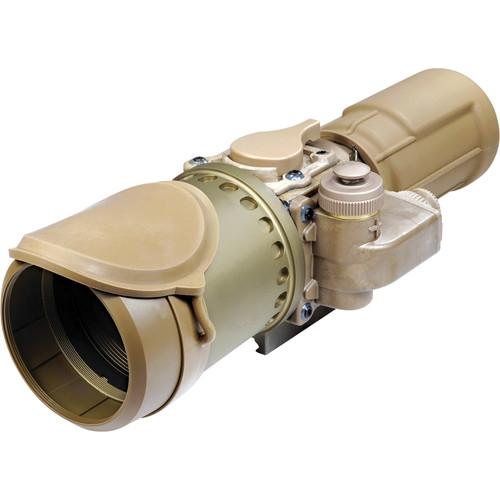

Product description The taupe M2124LR Gen 3 Clip-On Night Vision Weapon Sight from EOTech is an accessory NVD that transforms a day scope, reflex sight, or ACOG-style optic into a night vision targeting system. This clip-on sight is modeled on the Mil-Spec PVS-24 weapon sight, and it is designed to provide return-to-zero reliability when mounted in front of the day optic. An integrated Picatinny mount with a quick-release throw lever, allows the M2124LR to be rail-mounted in seconds.EOTech equipped this configuration of the M2124LR clip-on NVD with a Gen 3 intensifier tube that delivers 64 lp/mm resolution and 21:1 signal-to-noise performance. The tube gain can be manually adjusted by the operator, and it features Automatic Brightness Control circuitry that optimizes image quality as lighting conditions in the night vision scene continue to change. This clip-on NVD weighs less than 2 lb and is weather-sealed for enhanced moisture and dust resistance, making the M2124LR a full-featured Gen 3 optic for a wide range of tactical operations. - Optical Performance
-
- 1x magnification
- 110mm objective
- 8° angle of view
- 82 ft close focus distance
- Image Intensifier
-
- Gen 3 intensifier tube
- 64lp/mm resolution
- 21:1 signal-to-noise ratio
- Manual gain adjustment
- Automatic Brightness Control for bright or dynamic lighting conditions
- Use and Handling
-
- Aligns with day optic without re-zeroing
- Throw-lever quick-release mount
- Low-battery indicator in-view
- Flip-down objective cover
- Manual focus adjustment
- Construction Details
-
- Mil-Std 810G compliant construction
- Rubber armoring with taupe finish
- 36.0 oz weight with batteries
UPC: 672294891482 In the Box EOTech M2124LR Gen 3 Clip-On Night Vision Weapon Sight (Taupe) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EOTech M2124LR Gen 3 Clip-On Night Vision Weapon Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEOTech 39115150-ML001TP Specs | Intensifier Tube | Gen 3 | | Resolution | 64 lp/mm | | Signal to Noise Ratio | 21:1 | | Magnification | 1.0x | | Objective Lens Diameter | 110 mm | | Angle of View | 8° | | Close Focus Distance | 82 ft (25 m) | | Power Source | (1) CR123 battery or AA lithium | | Runtime | Up to 16 hours of continuous operation | | Dimensions | 5.8 x 3.7 x 3.3" (15 x 9 x 8 cm) | | Weight | 36.0 oz (1020 g) |
