User Manual for EOTech Model 518 Holographic Sight 2015 Edition Click to enlarge the picture
Contents of the user manual for the EOTech Model 518 Holographic Sight 2015
- Product category: Red Dot/Holographic Sights EOTech
- Brand: EOTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EOTech Red Dot/Holographic Sights
 |
User manual for the EOTech Model 518 Holographic Sight 2015 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EOTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EOTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EOTech product will considerably shorten its lifespan!
|

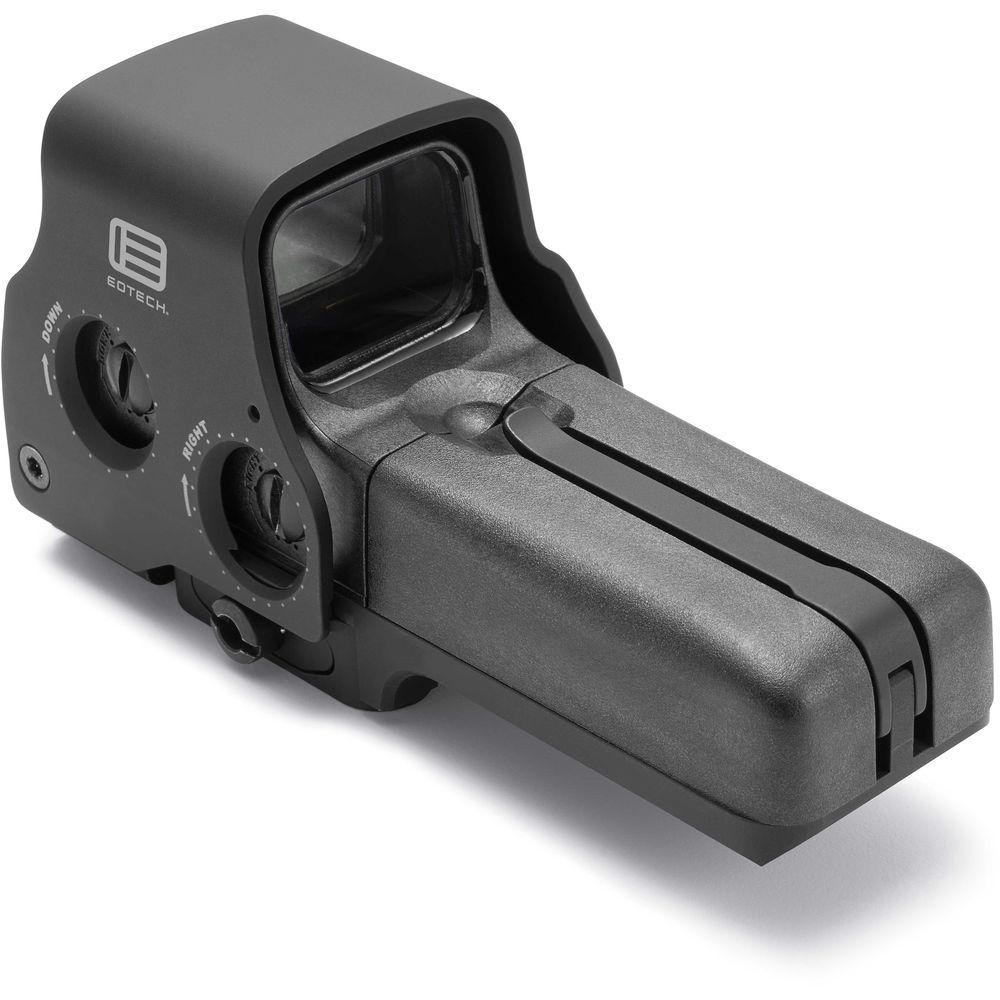

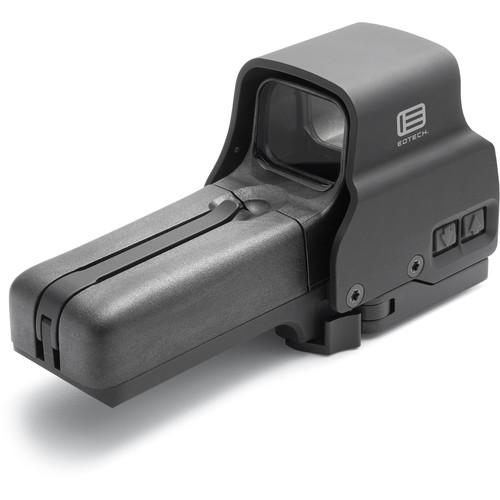

Product description The 2015 edition of EOTech's black Model 518 Holographic Weapon Sight (HWS) is designed to allow fast and easy target acquisition and tracking, with small to medium caliber platforms, for close to medium encounters. It is also compatible with magnifiers to extend the sight's reach for further accuracy. The 518 features an illuminated holographic red dot reticle and anti-reflection multi-coated optics, with a 90' field of view at 100 yards and an unlimited eye relief to ensure users maintain their situational awareness, especially when moving quickly.To get users on target is 0.5 MOA per click impact point correction, with ±40 MOA windage and elevation adjustments to compensate for most conditions or situations. Complementing the sight's performance is a rugged housing made of a lightweight and durable aluminum alloy with a black anodized finish. It is O-ring sealed to make it waterproof and submersible to a depth of 10', with a fog-resistant interior. The controls are all inset so there are no protruding knobs or rings to obscure targets. An integrated quick release Picatinny/Weaver rail mount allows it to be removed and re-installed without the need for tools or to be re-zeroed. - Optical Performance
-
- 1x magnification
- 1.2x0.85" window
- Anti-reflective coated optics
- 90' field of view at 100 yd
- Front window: 0.125" thick glass
- Rear window: 0.1875" laminate

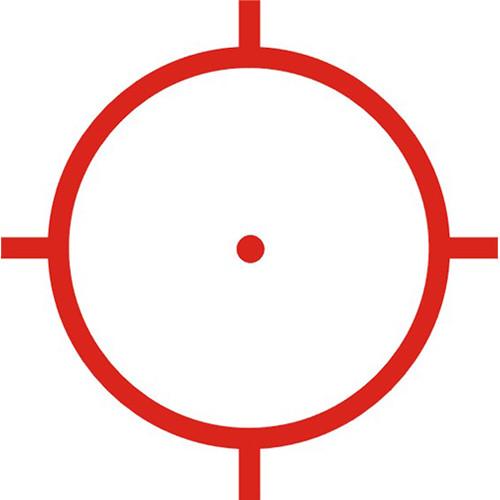

- Reticle
-
- Red-Dot reticle
- 1 MOA center aiming dot
- 68 MOA circle with quadrant ticks
- Illumination: Red 0.08mW/650nm Class II laser
- 20 selectable intensity levels
- Use and Handling
-
- Control buttons and adjustment dials located on the side for use with magnifiers
- 0.5 MOA per click impact point correction
- ±40 MOA windage and elevation adjustment range
- 10 MOA travel per rotation
- Auto shut off, selectable at either 8 or 4 hours
- Up to 1000 hr continuous runtime
- Digitally regulated output maintains consistent reticle intensity throughout battery charge
- Battery level indicator: Reticle blinks when available charge is at or below 20%
- Construction Details
-
- Lightweight aluminum housing
- Corrosion and scratch-resistant black anodized finish
- Quick release Picatinny/Weaver rail mount
- Self-adjusting mechanism compensates for variation in tolerances to keep the sight centered on the rail
- Waterproof and submersible to 10'
- Internally fog-resistant
- Inset controls with no protruding knobs, battery compartments, or rings obscuring the target
- Runs on two AA batteries - lithium, alkaline, or rechargeable
- Weight: 13.8 oz
UPC: 672294600527 In the Box EOTech Model 518 Holographic Sight 2015 Edition (Red Dot Reticle, Black) 2 x AA Batteries Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EOTech Model 518 Holographic Sight 2015 Edition in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEOTech Model 518 Specs | | | Power Source | 2 x AA | | Runtime | 600 to 1000 Hours | | Sight Window Dimensions | 1.2 x 0.8" / 30 x 23 mm | | Mounting | Picatinny / Weaver | | | | Magnification | 1 x | | Field of View | 90' @ 100 yd / 29.9 m @ 100 m | | | | Impact Point Correction | 1/2 MOA | | Windage Adjustment |
