User Manual for EOTech Model 552 Holographic Sight 2015 edition Click to enlarge the picture
Contents of the user manual for the EOTech Model 552 Holographic Sight 2015
- Product category: Red Dot/Holographic Sights EOTech
- Brand: EOTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EOTech Red Dot/Holographic Sights
 |
User manual for the EOTech Model 552 Holographic Sight 2015 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EOTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EOTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EOTech product will considerably shorten its lifespan!
|

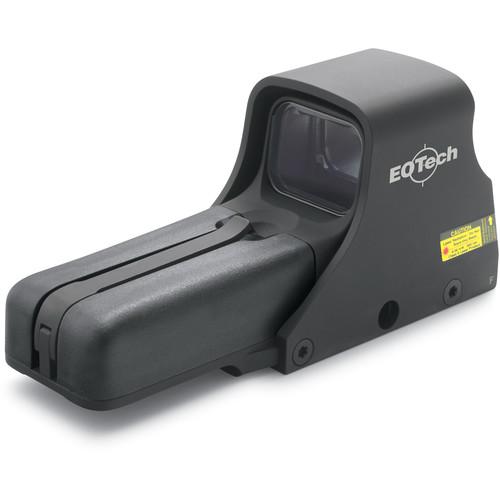

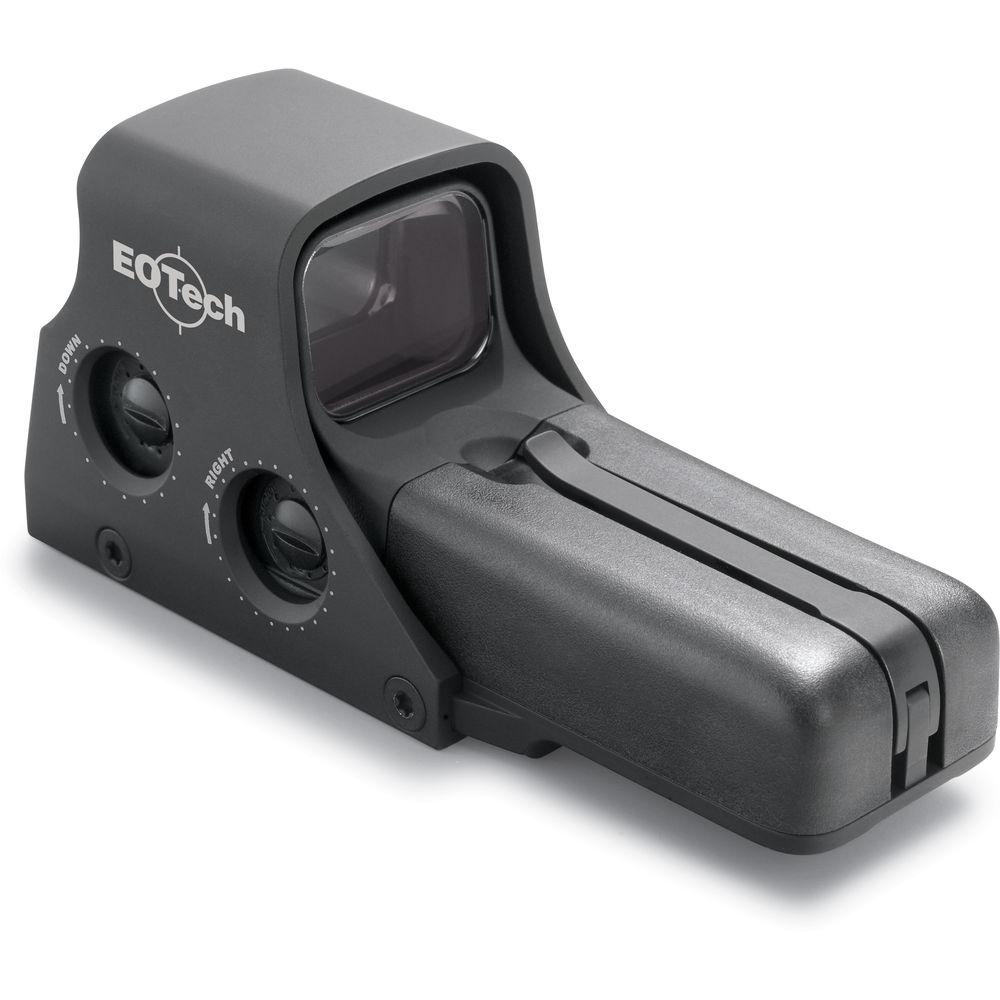

Product description The 2015 edition of EOTech's black Model 552 Holographic Sight (HWS) is designed for fast and easy target acquisition and tracking, with small to medium caliber platforms, for close to medium encounters in all lighting conditions. It is also compatible with magnifiers to extend the sight's reach for further accuracy. The 552 features an illuminated holographic red dot reticle and anti-reflection multicoated optics, and 30 brightness levels: 20 for all lighting conditions from dawn to dusk, and another 10 that are compatible with Gen I/II/II night vision devices for stealth nighttime operations. This versatile usability coupled with its 90' field of view at 100 yards and an unlimited eye relief, helps to ensure that users maintain their situational awareness, especially when moving quickly.To get users on target is 0.5 MOA per click impact point correction, with ±40 MOA windage and elevation adjustments to compensate for most conditions or situations. Complementing the sight's performance is a rugged housing made of a lightweight and durable aluminum alloy with a black anodized finish. It is O-ring sealed to make it waterproof and submersible to a depth of 10', with a fog-resistant interior. The controls are all inset so there are no protruding knobs or rings to obscure targets. An integrated quick-release Picatinny/Weaver rail mount allows it to be removed and re-installed without the need for tools or to be re-zeroed. - Optical Performance
-
- 1x magnification
- 1.2x0.85" window
- Anti-reflective coated optics
- 90' field of view at 100 yd
- Front window: 0.125" thick glass
- Rear window: 0.1875" laminate

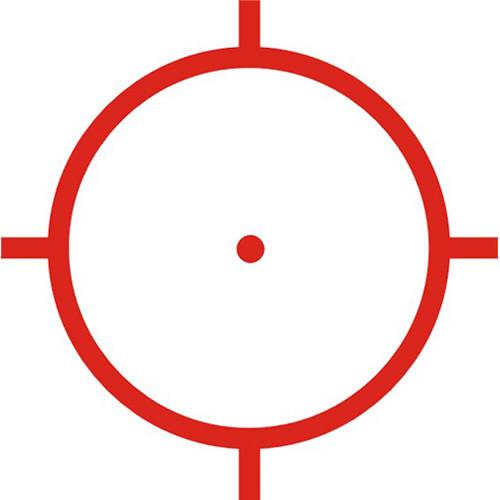

- Reticle
-
- Illuminated red reticle

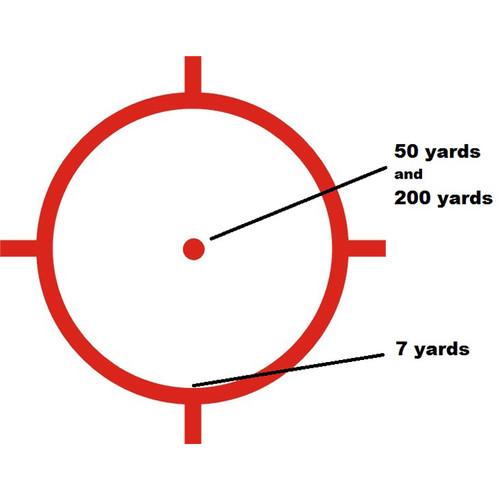

- Ballistic Drop Compensation (BDC) style reticle for use with .308 cal, 150gr M59 FMJ, appox 2,800 fps, 24.8" barrel
- Horizontal and upper vertical stadia markers
- Holdover indicators on the lower vertical axis
- Illumination: 0.08mW/650nm Class II laser
- 30 selectable intensity levels
- 20 levels for daytime use
- 10 levels for use with night vision devices
- Compatible with Gen I through III NVDs
- Use and Handling
-
- Control buttons and adjustment dials located on the side for use with magnifiers
- 0.5 MOA per click impact point correction
- ±40 MOA windage and elevation adjustment range
- 10 MOA travel per rotation
- Auto shut off, selectable at either 8 or 4 hours
- Up to 1000 hr continuous runtime
- Digitally regulated output maintains consistent reticle intensity throughout battery charge
- Battery level indicator: Reticle blinks when available charge is at or below 20%
- Construction Details
-
- Lightweight aluminum housing
- Corrosion and scratch-resistant black anodized finish
- Integrated Picatinny/Weaver rail mount
- Waterproof and submersible to 33'
- Internally fog-resistant
- Inset controls with no protruding knobs, battery compartment, or rings
- Runs on two AA batteries - lithium, alkaline, or rechargeable
- Weight: 11.1oz
UPC: 672294523086 In the Box EOTech Model 552 Holographic Sight 2015 edition (XR308 .308 Ballistic Drop) 7/64" Allen Key Knurled Weaver Bolt 2 x AA Batteries Limited 2-Year Warranty Table of Contents
|
