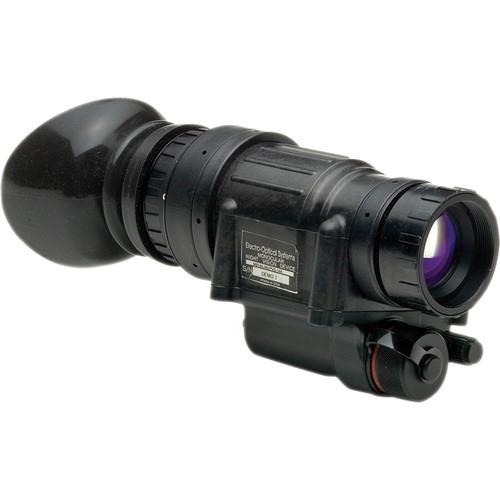

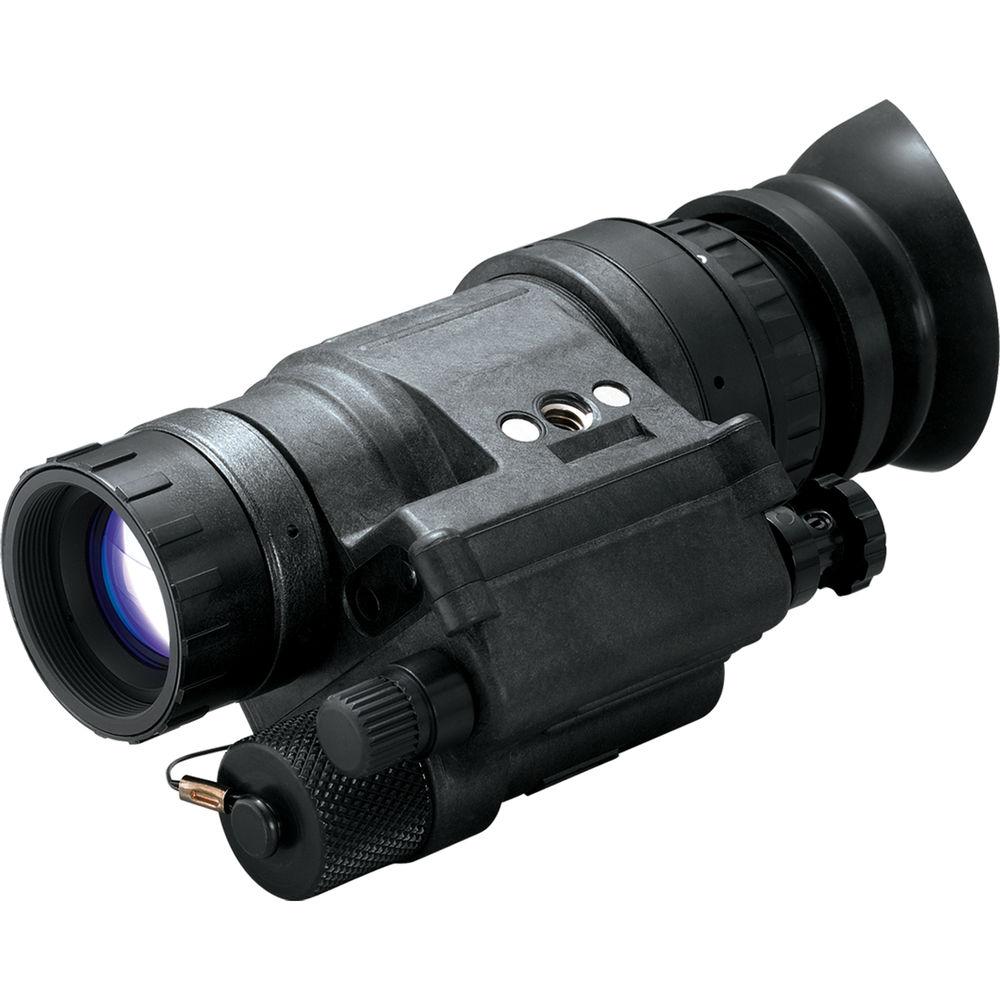

Product description The Model M914A (AN/PVS-14 Type) Gen 3 Omega Night Vision Monocular from EOTech is a night vision monocular that features a Gen 3 Omega image intensifier that delivers 64 lp/mm resolution and 21:1 signal-to-noise performance. The M914A features an Automatic Brightness Control and Bright Light Cut-Off system that adjusts the image in dynamic lighting conditions, and helps protect the internal components of the unit from excessive brightness. Using its built-in infrared illuminator, the M914A monocular is capable of transmitting crisp images in many low-light conditions.A 27 mm lens system provides an 40° angle of view, making the M914A monocular well-suited for close to mid-range observations. This monocular can be handheld, mounted on the user's head or helmet, or can be mounted on a firearm standard Picatinny rail. - Optical Performance
-
- 1x magnification, 40° angle of view
- 27 mm lens system
- 9.8" minimum focus distance
- Image Intensifier
-
- Gen 3 intensifier tube
- 64 lp/mm resolution
- 21:1 signal-to-noise ratio
- Unrestricted figure of merit
- Bright-Light Cut-off
- Use and Handling
-
- Built-in infrared illuminator
- Compatible with head/helmet/firearm (Picatinny) mounting
- In-view low-battery/IR indicator
- Manual focus objective lens
- Auto-deactivation function
- Construction Details
-
- Waterproof to 1 meter for 30 minutes
- -60 to 120°F operating temperature
- 10.2 oz weight
- 4.5" length
In the Box EOTech Model M914A (AN/PVS-14 Type) Gen 3 Omega Night Vision Monocular Soft Carrying Case AA Battery Demist Shield Assembly Eyeguard Sacrificial Window Assembly Lens Paper Shoulder Strap Retainer Cord Head-Mount Assembly Firearm and Head/Helmet Mount Adapters Limited 1-Year Warranty on Housing and Tube Table of Contents
|
Upload User Manual
Have you got an user manual for the EOTech Model M914A Gen 3 Omega Night Vision Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEOTech M914A Specs | Intensifier Tube | Gen 3 Omega | | Resolution | 64 lp/mm | | Signal to Noise Ratio | 21:1 | | Figure of Merit | Unrestricted | | Magnification | 1.0x | | Lens System | 27 mm | | Angle of View | 40° | | Minimum Focus Distance | 9.8" / 24.9 cm | | Dioptric Correction | +2 to -6 | | Infrared Illuminator | Yes | | Power Supply | 1 x AA Battery | | Runtime | Up to 40 hours of continuous operation at room temperature | | Waterproofing | 3' / 1 m for 30 min | | Operating Temperature | -60 to 120°F / -51 to 49°C | | Storage Temperature | -60 to 185°F / -51 to 85°C | | Dimensions | 4.5 x 2.0 x 2.2" / 11.4 x 5.1 x 5.6 cm | | Weight | 0.6 lb / 0.3 kg with battery | | | | Package Weight | 2.9 lb | | Box Dimensions (LxWxH) | 11.4 x 8.5 x 8.3" |
