User Manual for EOTech Model XPS2 Holographic Weapon Sight Click to enlarge the picture
Contents of the user manual for the EOTech Model XPS2 Holographic Weapon Sight
- Product category: Red Dot/Holographic Sights EOTech
- Brand: EOTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EOTech Red Dot/Holographic Sights
 |
User manual for the EOTech Model XPS2 Holographic Weapon Sight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EOTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EOTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EOTech product will considerably shorten its lifespan!
|

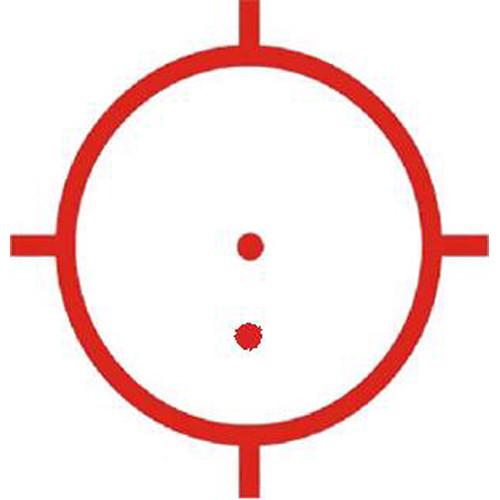

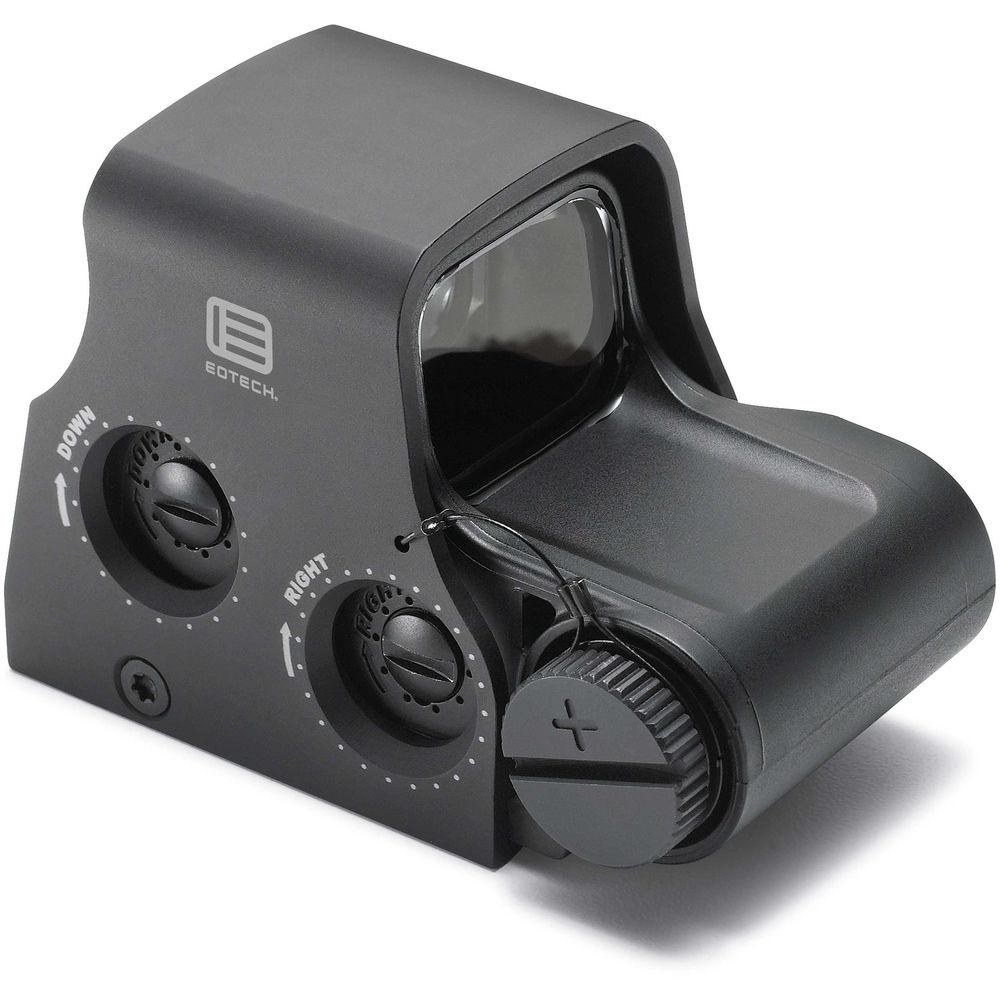

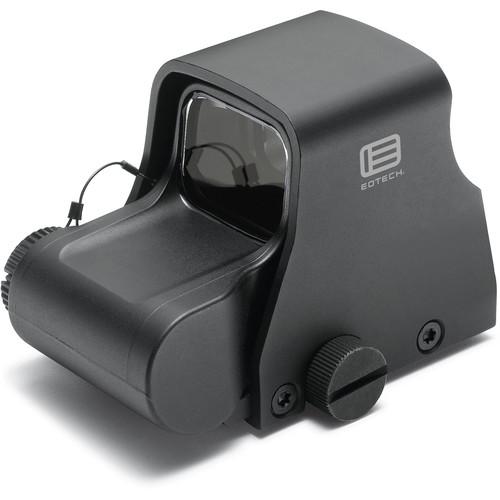

Product description The black EOTech Model XPS2 Holographic Weapon Sight is built to conserve valuable rail space while enabling rapid both-eyes-open sighting and tracking in a variety of conditions. This model's reticle (with red laser illumination) features a 68 MOA outer ring with quadrant stadia, and a 1 MOA center aiming dot for use out to 200 yards, and a second 1 MOA aiming dot below it for easy holdover at 500 yards. To get users on target faster, impact point correction is made at 0.5 MOA per click with a total windage and elevation adjustment range of 40 MOA to compensate for most terrain and conditions. Measuring just 3.8" and weighing a mere 9 oz the XPS2 has an integrated Picatinny/Weaver rail mount, is submersible to 10', and is internally fog-resistant. It runs on a single CR123 battery with a continuous runtime of about 600 hours at a medium setting, with 20 selectable intensity levels for use in most lighting conditions. - Optical Performance
-
- Magnification: 1x
- Unlimited eye relief
- Anti-reflective coated optics
- Front Window: Shatter-resistant 1/8" glass
- Rear Window: Shatter-resistant 3/16" laminate
- Field of View: 90' at 100 yards
- Window Dimensions: 1.2x0.85"

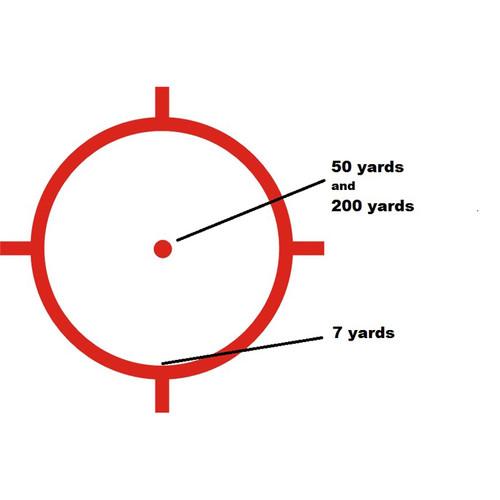

- Reticle
-
- Red laser-illuminated reticle
- 68 MOA outer ring with quadrant stadia
- 1 MOA center aiming dot for use to 200 yd
- Second 1 MOA aiming dot below center for use out to 500 yd
- 20 intensity levels for use in most lighting conditions
- Auto battery check indicator
- 8-hr or 4-hr selectable auto shut-off
- Digitally regulated output maintains consistent reticle intensity throughout battery charge
- Runs on one CR123 lithium battery
- Use and Handling
-
- 0.5 MOA adjustment per click at 100 yards
- ±40 MOA windage/elevation adjustments
- Recessed side windage and elevation dials reduce snag points
- User-facing raised on/off and intensity selection buttons
- Construction Details
-
- Non-reflective black with hard coat finish
- Durable housing with aluminum hood assembly
- Submersible to 10'
- Internally fog resistant
- Integrated Picatinny/Weaver rail mount
- Made in the USA
UPC: 672294600220 In the Box EOTech Model XPS2 Holographic Weapon Sight (Ring with Double Red Dot Reticle, Black) CR123 Lithium Battery Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EOTech Model XPS2 Holographic Weapon Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEOTech Model XPS2 Specs | | | Eye Relief | Unlimited | | Power Source | 1 x CR123 | | Runtime | 600 Hours | | Sight Window Dimensions | 1.2 x 0.8" / 30 x 23 mm | | Mounting | Picatinny / Weaver | | | | Magnification | 1x | | Field of View | 90' @ 100 yd / 29.9 m @ 100 m | | | | Impact Point Correction | 1/2 MOA | | Windage Adjustment |
