User Manual for EOTech Model XPS3 Holographic Weapon Sight 2015 Edition Click to enlarge the picture
Contents of the user manual for the EOTech Model XPS3 Holographic Weapon Sight
- Product category: Red Dot/Holographic Sights EOTech
- Brand: EOTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EOTech Red Dot/Holographic Sights
 |
User manual for the EOTech Model XPS3 Holographic Weapon Sight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EOTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EOTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EOTech product will considerably shorten its lifespan!
|

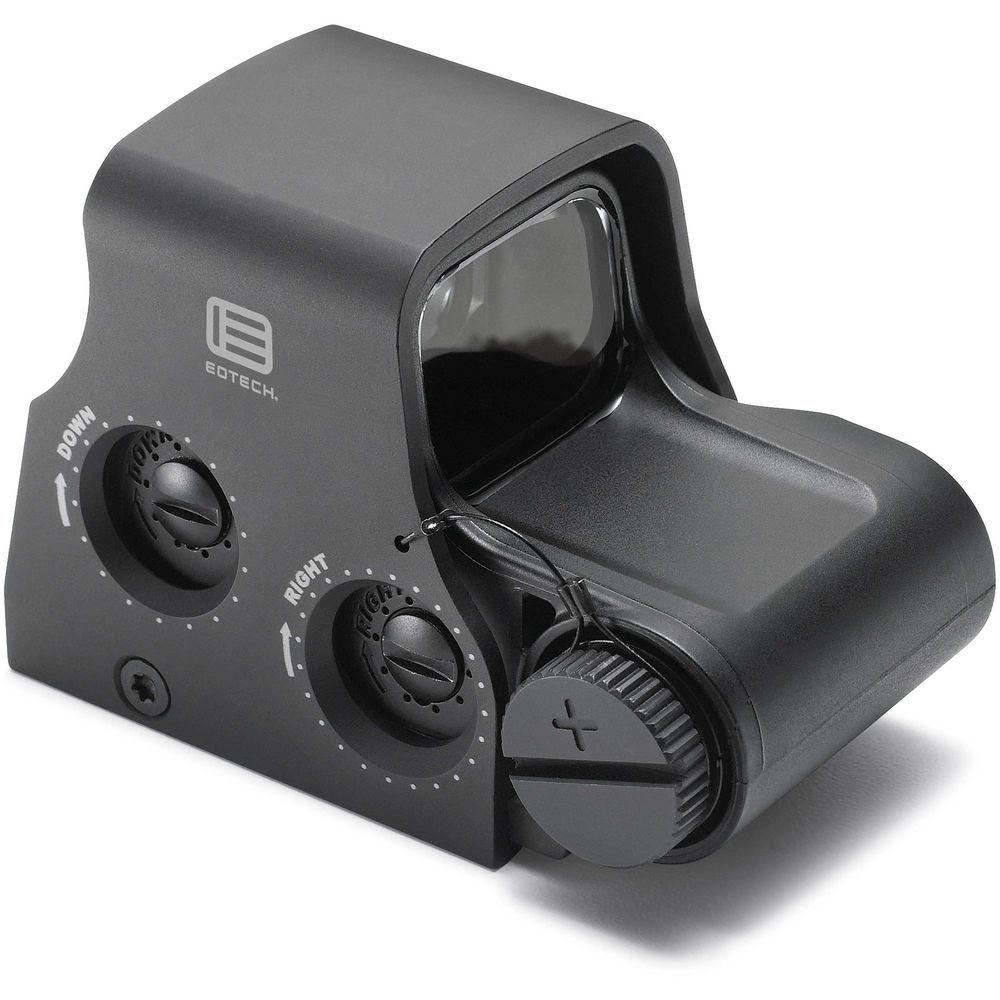

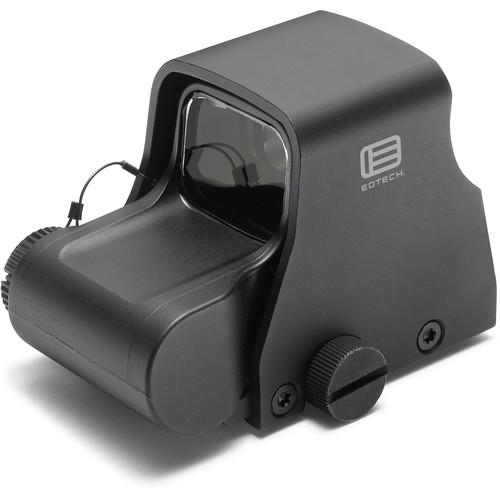

Product description The 2015 edition of EOTech's Model XPS3 Holographic Weapon Sight is built to conserve valuable rail space while enabling rapid both-eyes-open sighting and tracking in a variety of conditions. This model's reticle features a 1 MOA center aiming dot for use at close to medium range, and a second dot under the first for long-range use with a magnifier. To get users on target faster, impact point correction is made at 0.5 MOA per click with a total windage and elevation adjustment range of 40 MOA to compensate for most terrain and conditions. Measuring just 3.8" and weighing a mere 9oz the XPS2 has an integrated Picatinny/Weaver rail mount, is submersible to 10', and is internally fog-resistant. It runs on a single CR123 battery with a continuous runtime of about 600 hours at a medium setting, with 20 selectable intensity levels for use in most lighting conditions. - Optical Performance
-
- Magnification: 1x
- Unlimited eye relief
- Anti-reflective coated optics
- Front Window: Shatter-resistant 1/8" glass
- Rear Window: Shatter-resistant 3/16" laminate
- Field of View: 90' at 100 yards
- Window Dimensions: 1.2x0.85"

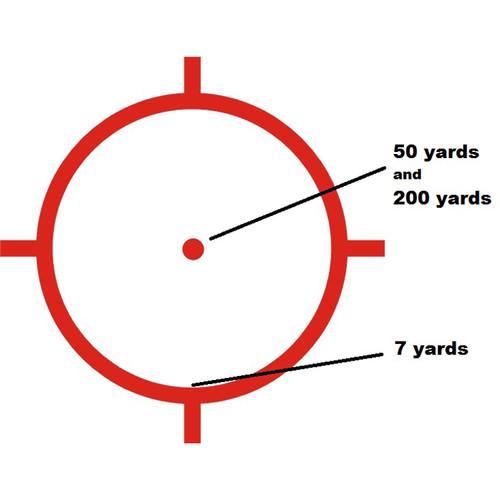

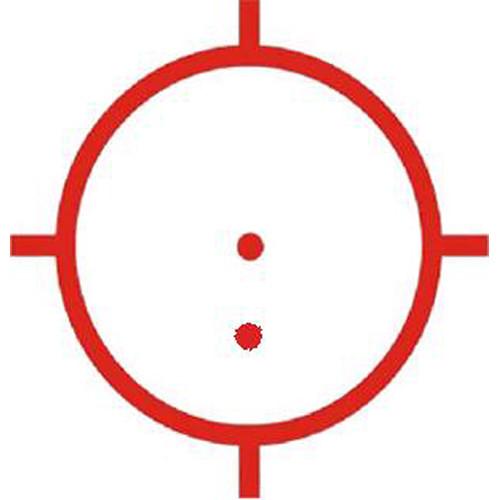

- Reticle
-
- Red illuminated Reticle
- 68 MOA outer ring
- 1 MOA center aiming dot for close to mid-range use
- Second aiming dot on lower vertical axis for long-range holdover with a magnifier
- 30 intensity levels
- 20 levels for use in most lighting conditions
- 10 additional levels for use with Gen I/II/III night vision devices
- Auto battery check indicator
- 8-hr or 4-hr selectable auto shut-off
- Digitally regulated output maintains consistent reticle intensity throughout battery charge
- Runs on one CR123 lithium battery
- Use and Handling
-
- 0.5 MOA adjustment per click at 100 yards
- ±40 MOA windage/elevation adjustments
- Recessed side windage and elevation dials reduce snag points
- User-facing raised on/off and intensity selection buttons
- Construction Details
-
- Non-reflective black with hard coat finish
- Durable housing with aluminum hood assembly
- Submersible to 33'
- Internally fog resistant
- Integrated Picatinny/Weaver rail mount
- Made in the USA
UPC: 672294600329 In the Box EOTech Model XPS3 Holographic Weapon Sight 2015 Edition (Ring / Double Aiming Dots Reticle) 123 Lithium Battery Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EOTech Model XPS3 Holographic Weapon Sight 2015 Edition in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEOTech Model XPS3 Specs | | | Eye Relief | Unlimited | | Power Source | 1 x CR123 | | Runtime | 600 Hours | | Sight Window Dimensions | 1.2 x 0.8" / 30 x 23 mm | | Mounting | Picatinny / Weaver | | | | Magnification | 1 x | | Field of View | 90 @ 100 yd30 @ m | | | | Impact Point Correction | 1/2 MOA | | Windage Adjustment |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 11 owners. Add your rating and experience with the product.
