User Manual for EOTech MTM 320x240 Mini Thermal Monocular Click to enlarge the picture
Contents of the user manual for the EOTech MTM 320x240 Mini Thermal Monocular
- Product category: Thermal Imagers EOTech
- Brand: EOTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EOTech Thermal Imagers
 |
User manual for the EOTech MTM 320x240 Mini Thermal Monocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EOTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EOTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EOTech product will considerably shorten its lifespan!
|

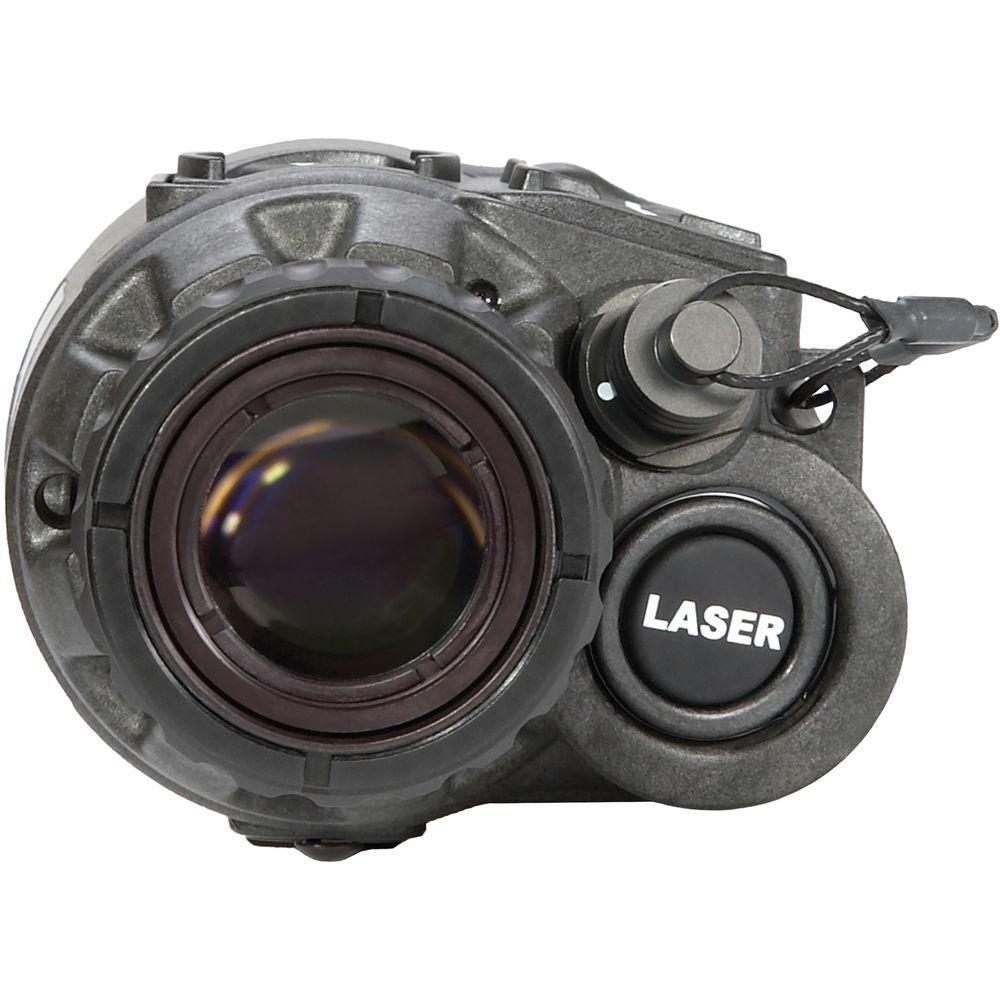

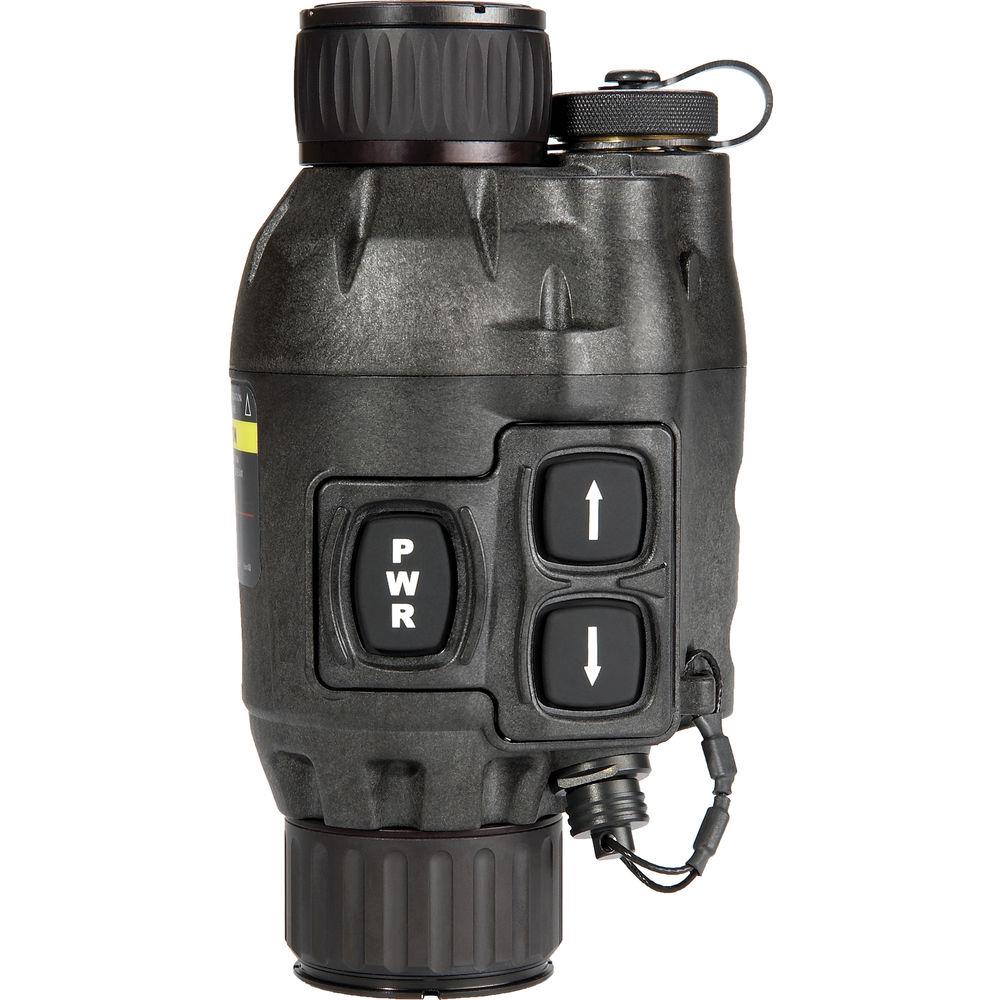

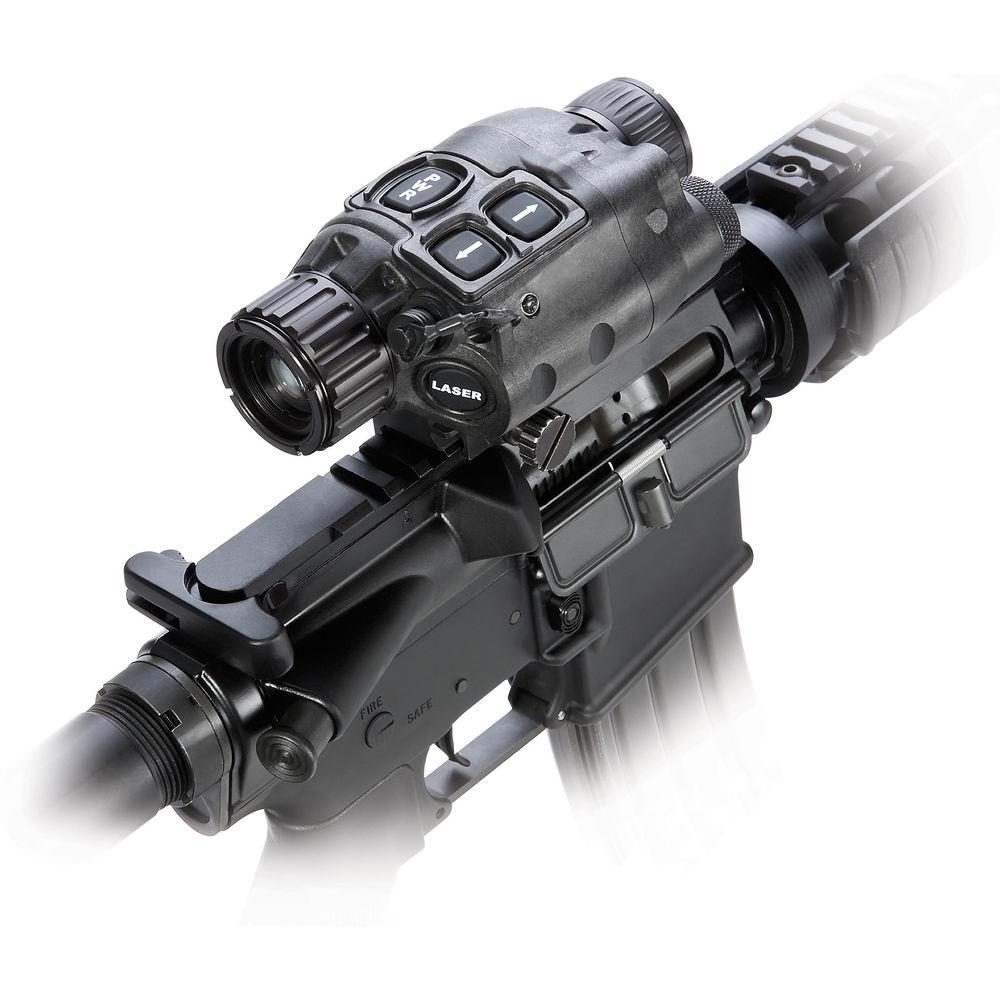

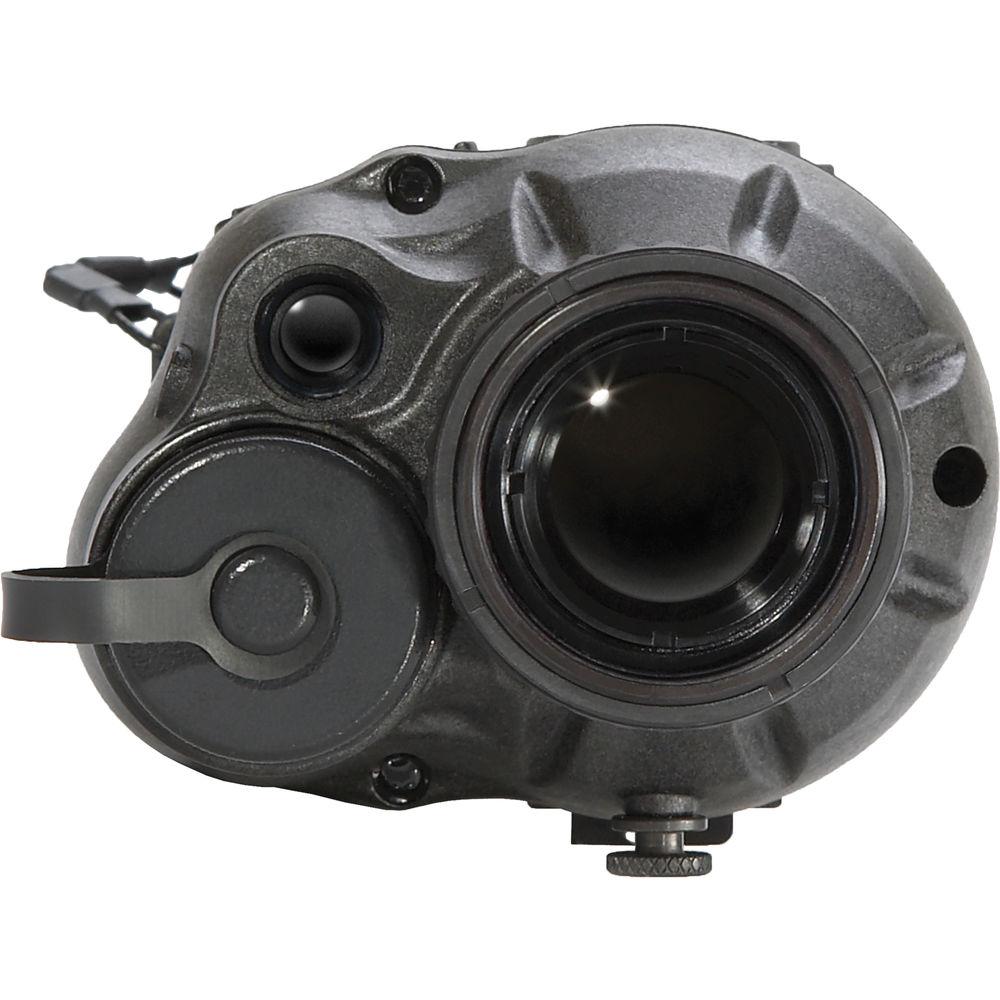

Product description The MTM 320x240 Mini Thermal Monocular from EOTech is a multi-purpose thermal imaging device that features a weather-sealed housing and ergonomic button layout designed for user-friendly handheld viewing. By analyzing the heat signature within view, a thermal imager can produce an image regardless of the lighting condition. Indoors and outdoors—day and night—the MTM can see through fog, smoke, and heavy rain to reveal objects not visible even in a well-lit area.Combined with 2x digital zoom and image optimization functions like selectable polarity modes and manual scene calibration, the MTM has an 18" close focus distance that equips it for close to mid-range observations. In addition to the MTM's fast optics and functionality, this monocular weighs only 11.5 oz and is nearly silent during operation. The MTM is built to perform in driving rain and freezing temperatures, and it has an anodized finish to resist corrosion and scratching. This thermal monocular comes with a mounting adapter for head gear or helmet attachment, as well as a night vision filter, carrying case, USB video transfer cable, and a one-year warranty from the manufacturer. - Imaging Performance
-
- 320x240 VOx micro bolometer
- 7-14µm spectral response
- <50mK sensitivity
- 60Hz refresh rate
- 1x magnification, 2x digital zoom
- f/1.05 light gathering ability
- 29.25° angle of view
- 18" minimum focus distance
- System Features
-
- Polarity modes: Black Hot / White Hot
- Manual thermal scene calibration
- Manual brightness and contrast adjustment
- Video output via USB cable
- Low-battery and two laser activation indicators
- Includes mounting adapter for head gear / helmet
- Construction Details
-
- Anodized composite housing
- Aluminum and steel chassis
- -29 to 122°F operating temperature
- Waterproof depth: 3 ft
- 11.5 oz weight with batteries
UPC: 672294450092 In the Box EOTech MTM 320x240 Mini Thermal Monocular Head Gear/Helmet Mounting Adapter Night Vision Filter Carrying Case Angled Eyecup Lanyard USB Cable 2 x CR123A Batteries Lens Cloth Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EOTech MTM 320x240 Mini Thermal Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEOTech MTM-000-A10 Specs | Array Configuration | 320 x 240 uncooled VOx micro bolometer | | Sensitivity | <50 mK | | Spectral Response | 7 - 14µm | | Refresh Rate | 60 Hz | | Magnification | 1.0x | | Angle of View | 29.25° | | Minimum Focus Distance | 18" / 0.5 m | | Diopter Adjustment | -6 to +6 | | Digital Zoom | 2.0x | | Video Output | USB cable | | Power Source | 2 x CR123 lithium | | Run Time | Up to 4 hours of continuous operation | | Waterproof Depth | 3 ft / 0.9 m | | Operating Temperature | -14 to 122°F / -10 to 50°C | | Dimensions | 5.0 x 2.8 x 2.2" / 12.7 x 7.1 x 5.6 cm | | Weight (with Batteries) | 11.5 oz / 326.0 g |
