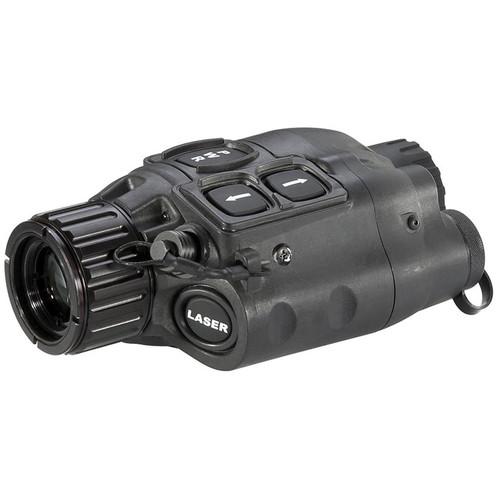

Product description The WTM 320x240 Mini Thermal Monocular with Visible Laser and Picatinny Mount from EOTech is a multi-purpose thermal imaging device that features a weather-sealed housing and ergonomic button layout designed for user-friendly handheld viewing. By analyzing the heat signature within view, a thermal imager can produce an image regardless of the lighting condition. Indoors and outdoors—day and night—the WTM can see through fog, smoke, and heavy rain to reveal objects not visible even in a well-lit area. This model of the WTM is configured with and a red dot aiming laser that is factory-aligned with the monocular's reticle, making it a suitable option for targeted evidence gathering and surveillance.Combined with 2x digital zoom and image optimization functions like selectable polarity modes and manual scene calibration, the WTM has an f/1.05 lens system and 18" close focus distance that equips it for close to mid-range observations. In addition to the WTM's fast optics and functionality, this monocular weighs only 11.8 oz and is practically silent during operation. The WTM is built to perform in driving rain and freezing temperatures, and it has an anodized finish to resist corrosion and scratching. This thermal monocular comes with a weapon mount for easy attachment to a Picatinny rail, as well as a carrying case, video transfer cable, and a one-year warranty from the manufacturer. - Imaging Performance
-
- 320x240 VOx microbolometer
- 7-14µm spectral response
- <50mK sensitivity
- 60Hz refresh rate
- 1x magnification, 2x digital zoom
- f/1.05 light gathering ability
- 23x18° angle of view
- 18" minimum focus distance
- Aiming reticle overlaid on FOV
- Laser Aiming Device
-
- 5mW Class IIIa laser
- 645nm visible output
- Factory-aligned aiming point and reticle
- System Features
-
- Polarity modes: Black Hot / White Hot
- Manual thermal scene calibration
- Manual brightness and contrast adjustment
- NTSC video output via analog video cable
- Low-battery and two laser activation indicators
- Includes Picatinny rail mount
- Construction Details
-
- Anodized composite housing
- Aluminum and steel chassis
- 14 to 122°F operating temperature
- Waterproof depth: 66 ft
- 11.8 oz weight with batteries
In the Box EOTech WTM 320x240 Mini Thermal Monocular with Visible Laser, Picatinny Mount Picatinny Rail Mount Night Vision Filter Carrying Case Angled Eyecup Lanyard Video Output Cable 2 x DL123 Batteries Lens Cloth Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EOTech WTM 320x240 Mini Thermal Monocular with Visible Laser, Picatinny Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEOTech WTM-000-A14 Specs | Array Configuration | 320 x 240 uncooled VOx micro bolometer | | Sensitivity | <50 mK | | Spectral Response | 7 - 14µm | | Refresh Rate | 60 Hz | | Magnification | 1.0x | | Angle of View | 23.4 x 17.6° | | Eye Relief | 1" / 25 mm | | Minimum Focus Distance | 18" / 0.5 m | | Diopter Adjustment | -6 to +4 | | Digital Zoom | 2.0x | | Video Output | Analog video cable | | Power Source | 2 x DL123 batteries | | Run Time | Up to 3 hours of continuous operation | | Laser Type | Class IIIa | | Laser | 5 mW 645 nm (visible) | | Waterproof Depth | 66 ft / 20 m | | Impact Resistance | 6 ft / 1.8 m | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Dimensions | 5.0 x 2.8 x 2.2" / 12.7 x 7.1 x 5.6 cm | | Weight (with Batteries) | 11.5 oz / 326.0 g |
