User Manual for EOTech XPS2-300 Blackout Sight Click to enlarge the picture
Contents of the user manual for the EOTech XPS2-300 Blackout Sight
- Product category: Red Dot/Holographic Sights EOTech
- Brand: EOTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EOTech Red Dot/Holographic Sights
|
User manual for the EOTech XPS2-300 Blackout Sight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EOTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EOTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EOTech product will considerably shorten its lifespan!
|

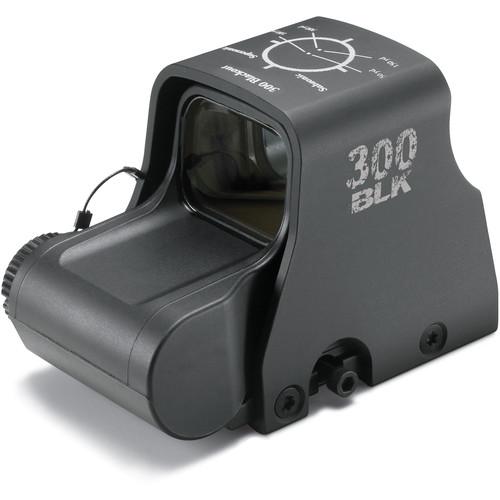

Product description Designed to be used with small-to-medium weapons for close quarters combat, the black XPS2-300 Blackout Sight from EOTech features an illuminated holographic 300 Black Zero Reticle with two red dots, and waterproof and fog-resistant construction. It offers 1x magnification, 90' at 100 yd linear field of view, and multicoated optical elements. You can compensate for crosswinds and ballistic bullet with a total of 80 MOA of windage and elevation adjustments. The increment is 1/2 MOA per click.
Designed for both subsonic and supersonic rounds, the reticle features two laser-illuminated 1 MOA dots and a 68 MOA circle. It allows the shooter to zero either subsonic or supersonic rounds. The center red dot allows aiming for subsonic rounds at 50 yards and supersonic rounds at 200 yards. The lower red dot allows aiming for subsonic rounds at 150 yards and supersonic rounds at 300 yards.
The housing is made of lightweight aluminum and offers a waterproof and fog-resistant performance. Its mount is compatible with Picatinny and Weaver style rails. - Optical Performance
-
- 1x magnification
- Multiple anti-reflective coatings
- Linear field of view: 90' @ 100 yd
- Window dimensions: 1.2 x 0.85"
- Front window: 1/8" glass
- Rear window: 3/16" laminate
- 300 Black Zero Reticle
-
- Holographic reticle with two red dots
- 1 MOA dots with and 68 MOA circle
- Illumination: 0.08mW/650nm Class II laser
- 20 illumination levels
- Auto power shut-off after 8 or 4 hr
- 600-hour runtime
- Use and Handling
-
- Battery indicator
- 1/2 MOA impact point correction
- 80 MOA windage and elevation
- Construction Details
-
- Compact aluminum housing
- Compatible with Picatinny and Weaver rails
- Waterproof and submersible to 10'
- Fog-resistant
UPC: 672294600459 In the Box EOTech XPS2-300 Blackout Sight (300 BLK Zero Reticle) - CR-123 Lithium Battery
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the EOTech XPS2-300 Blackout Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEOTech Model XPS2 Specs | | | Power Source | 1 x CR123 | | Runtime | 600 Hours | | | | Impact Point Correction | 1/2 MOA | | Windage Adjustment | 80 MOA | | Elevation Adjustment | 80 MOA | | | | Water Resistance | Waterproof | | Fogproof | Yes | | Dimensions | L: 3.8 x W: 2.5 x H: 2.1" / L: 9.7 x W: 6.4 x H: 5.3 cm | | Weight | 9 oz / 255.1 g | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 7.4 x 6.4 x 3.5" |
