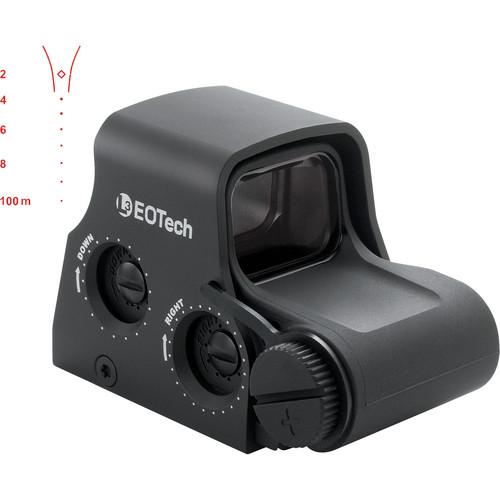

Product description The XPS2-Sage Holographic Sight (Matte Black) from EOTech provides rapid heads-up-both-eyes-open target acquisition. It is specific for the Sage single and multiple projectile 37 mm rifled launchers for less lethal applications. Because it's powered by a single transverse-mounted CR123A battery, the XPS2-Sage is shorter than the N and AA battery versions - yet it delivers the same parallax-free sighting capabilities. This sight requires a mere 2.75" of rail space. The battery cap is a simple screw-type cover that's o-ring sealed and tethered to the housing. The control buttons are positioned on the side of the rugged aluminum housing for ease of operation. The illuminated reticle is calibrated to the specific trajectories of the Sage less lethal applications - the illumination system provides the operator with 20 brightness levels to choose from. The reticle combines a targeting and ranging reticle in one image. Designed for today's modern battlefield; the XPS2-Sage is submersible to a depth of 10', and it's repeatable to 2 MOA after remounting. The rear window is a 3/16" thick shatterproof laminate with anti-glare and scratch resistant coatings, and the front lens is 1/8" solid glass. Because the optical system is based upon transmission holography, parallax error is not an issue - a mission-critical feature that can save the situation when the going gets hot. Note: This item must be exported from the USA in accordance with Export Administration Regulations - ECCN 0A987. Diversion contrary to U.S. law is prohibited. In accordance with U.S. law (Title 15 CFR part 746 and Supplement No. 1 to Part 774; and Title 31 CFR) - the L-3 EOTech XPS2-2 HWS is controlled under U.S. International Traffic in Arms Regulations (ITAR) and may not be exported without proper authorization by the U.S. Department of State. - Optical Performance
-
- Front Window: 1/8" solid glass
- Rear Window: 3/16" shatter-resistant laminate
- Optical surfaces feature anti-glare lens coatings
- Heads-Up Display: eliminates blind spots and constricted vision
- Transmission holography - instantly visible in any light, parallax free
- Even if the laminated window is obstructed or damaged, the HWS remains fully operational. Provided a portion of the window is intact/visible, the entire reticle pattern will be seen on target, and the POI/POA will be maintained.
- Use and Handling
-
- Powered by 1 CR123A: 600 hr run-time at nominal setting of 12
- Automatic shut-down: 8 hr, programmable to 4 hr
- Battery check indicator: flashing reticle at start-up
- Specific to Sage rifled launchers for less lethal applications
- Precision adjustments: 1/2 MOA clicks, 40 MOA W&E correction
- Illuminated reticle: Sage less-lethal reticle pattern. 20 Brightness settings with scrolling feature
- Construction Details
-
- Color/finish: non-reflective black hard-coat
- Short-base form-factor requires 2.75" of rail space
- Internal optical system is sealed and fully fogproof
- Return to Zero: repeatable to 2 MOA after re-mount
- Submersible to 10.0'/3.1 m, fogproof internal optics
- Durable housing features a rugged aluminum hood assembly
- Function buttons location: positioned on the side of the sight
- Battery compartment designed to fit/hover over the rifle's Delta Ring
- Integral mount is compatible with Mil-Std 1913 Picatinny systems
UPC: 672294600282 In the Box EOTech XPS2-Sage Holographic Sight (Matte Black) CR123A Battery Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EOTech XPS2-Sage Holographic Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEOTech Model XPS2 Specs | | | Eye Relief | Unlimited | | Sight Window Dimensions | 1.2 x 0.8" / 30 x 23 mm | | | | Magnification | 1 x | | Field of View | 91.9' @ 100 yd / 30.5 m @ 100 m | | | | Impact Point Correction | 1/2 MOA | | Windage Adjustment | 40 MOA | | Elevation Adjustment | 40 MOA | | | | Operating Temperature | -40 to 150°F / -40 to 65.6°C | | | | Water Resistance | Waterproof | | Fogproof | Yes | | Dimensions | L: 3.5 x W: 2.4 x H: 2.4" / L: 8.9 x W: 6.1 x H: 6.1 cm | | Weight | 8 oz / 226.8 g | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 7.4 x 6.5 x 3.6" |
