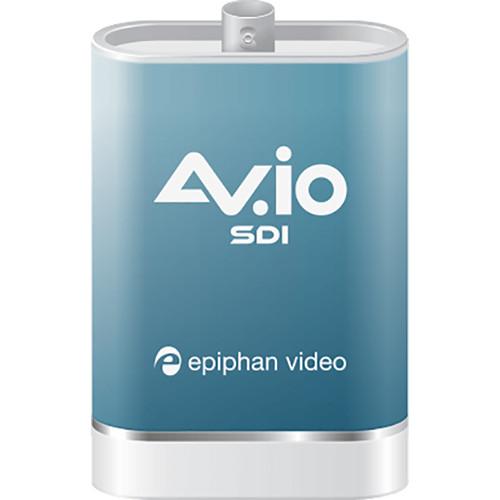

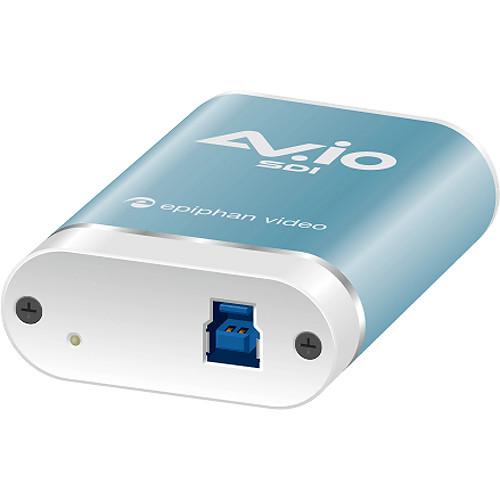

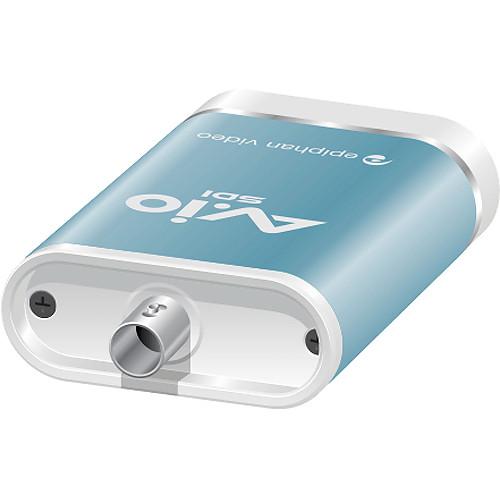

Product description Transfer up to a 1080p SDI video signal to your computer with the robust and compact AV.io SDI Video Grabber from Epiphan.
The AV.io SDI is a UVC device that shows up on your computer as a webcam. As a UVC device, it's designed to integrate with a capture software on your computer, and it's seamlessly compatible with all the popular capture software, including Wirecast, Skype, QuickTime, Adobe FMLE, VLC media player, Windows Camera, and any conferencing software. The captured data can be used for a variety of purposes, including high-end streaming, webcam applications requiring higher image quality than standard webcams offer, and for other types of recording.

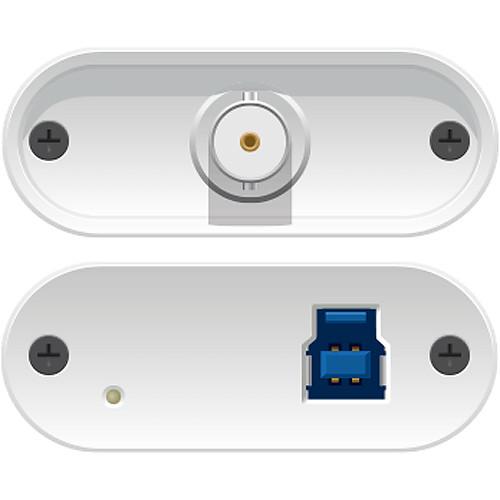

This sleek capture device features a 3G/HD/SD-SDI input and USB 3.0 output (USB 2.0 backwards-compatible). It supports up to 1920 x 1080 resolution on both input and output at up to 60 fps. It also features automatic audio resampling. For situations with surround sound or multi-lingual audio, you can choose which audio pair to capture. Connect cameras, switchers, and other SDI devices and transmit the content to your computer uncompressed and with near-zero latency.The AV.io SDI is auto-detected on Windows, Mac, and Linux systems, allowing for for easy integration. This device has a tough build and can be relied on for long-term use. It has a metal exterior that's strong enough to withstand being dropped as well as stepped on. An SDI cable and USB 3.0 cable are included, so you have everything you need right out of the box. Note: High-Bandwidth Digital Content Protection (HDCP) is a form of digital copy protection intended to prevent illegal copying of video and audio content. The AV.io 4K cannot capture from video sources protected by HDCP. - Key Features
-
- Transfer up to a 1080p60 SDI video signal to your computer
- 3G/HD/SD-SDI input and USB 3.0 output
- UVC device that seamlessly integrates with popular capture software
- Audio resampling
- Near-zero latency
- Auto-detected on Windows, Mac, and Linux systems
- Tough, metal exterior
- LED status indicators
- SDI and USB cables included
UPC: 748252115690 In the Box Epiphan AV.io SDI USB 3.1 Gen 1 Video Grabber SDI Cable USB 3.0 Cable Limited 1-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Epiphan AV.io SDI USB 3.1 Gen 1 Video Grabber in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Epiphan AV.io SDI USB 3.1 Gen 1 Video Grabber can be downloaded in PDF format at the link stated below.
Technical parametersEpiphan ESP0964 Specs | System Requirements | Operating System:
Windows 7, 8.1, 10
Mac OS X 10.10 +
Linux distribution with kernel 3.5.0 or higher | | Drivers | OS Driver:
UVC and UAC device | | Input | 1 x 3G/HD/SD-SDI on BNC
Embedded audio for 3G/HD-SDI) | | Output | 1 x USB 3.0 (USB 2.0 backwards compatible) | | Input Resolution | Up to 1920 x 1080 | | Output Resolution | 640 x 360, 640 x 480, 960 x 540, 1280 x 720, 1920 x 1080, all in YUV 4:2:2 at 15, 23.976, 24, 25, 29.97, 30, 50, 59.94, 60 fps
*The 3rd-party software you use will set the frame size and bit rate. | | Audio Input | 16-bit and 24-bit PCM encoded audio 48 kHz supported via 3G-SDI and HD-SDI. Audio capture is not supported for SD-SDI. | | Audio Output | 16-bit 48 kHz stereo audio | | Dimensions | 3.5 x 2.4 x 0.9" (9 x 6 x 2.3 cm) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 10.8 x 6.9 x 2.7" |
