Product description Upgrade the functionality of your DVI2PCIe or DVI2PCIe Duo capture card (both sold separately) with the DVI2PCIe A/V Input Kit from Epiphan. Featuring two daughter boards (one S-video and one TRS) and add-on brackets, ribbons, and an adapter, the kit allows you to add more video and audio inputs to the DVI2PCIe and/or DVI2PCIe Duo.

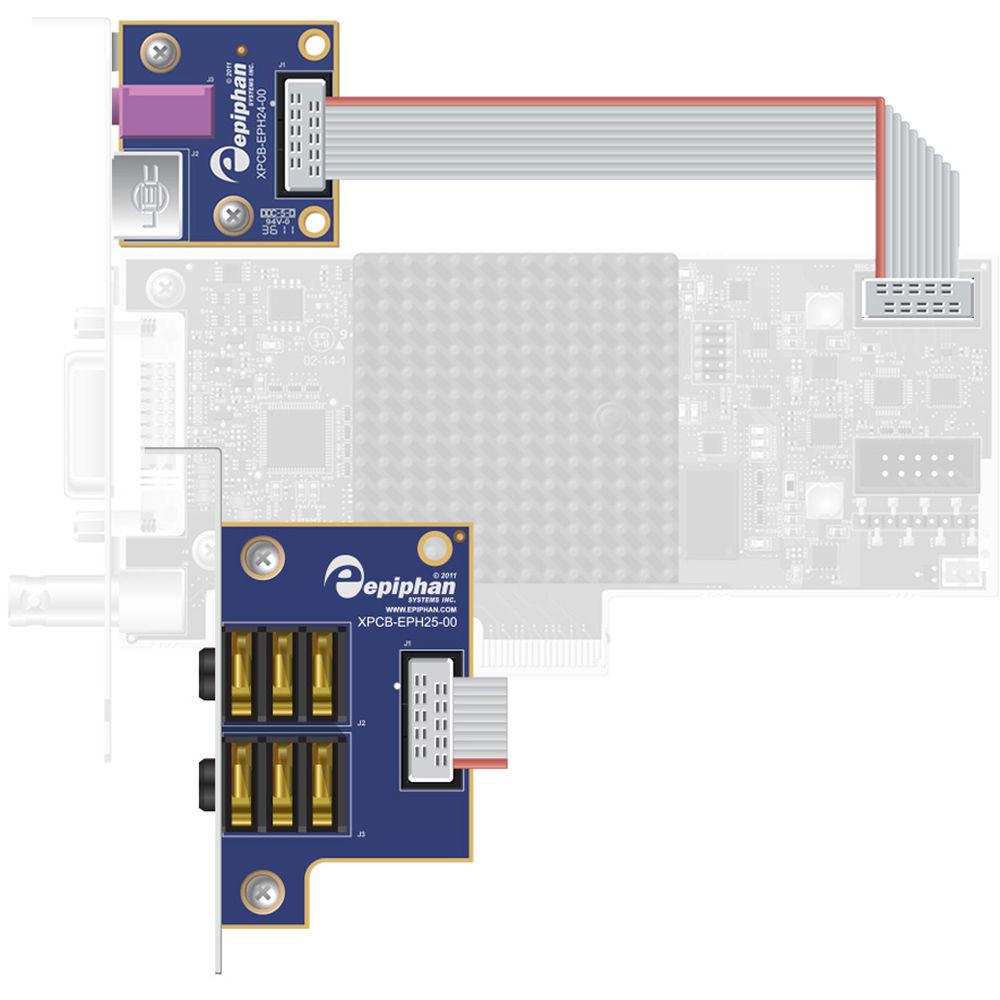

Each daughter board is connected to the DVI2PCIe or DVI2PCIe Duo capture card using an included ribbon cable. The daughter boards can be interchanged and connected simultaneously. The S-video board supports the S-video, composite video, and 3.5mm audio input brackets, and the TRS board supports balanced TRS audio brackets. - What's Included
-
- S-video daughter board
- TRS daughter board
- S-video to Composite video adapter
- Two ribbon cables
- S-video and audio low profile bracket
- Balanced audio low profile bracket
- S-video and audio full profile bracket
- Balanced audio full profile bracket
UPC: 713757650434 In the Box Epiphan DVI2PCIe A/V Input Kit for DVI2PCIe & DVI2PCIe Duo S-Video Daughter Board TRS Daughter Board S-Video to Composite Video Adapter Two Ribbon Cables S-Video and Audio Low Profile Bracket Balanced Audio Low Profile Bracket S-Video and Audio Full Profile Bracket Balanced Audio Full Profile Bracket Limited 1-Year Warranty Brochure PDF 2.7mbfcefwccczvddvczxb Table of Contents
|
Upload User Manual
Have you got an user manual for the Epiphan DVI2PCIe A V Input Kit for DVI2PCIe & DVI2PCIe Duo in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEpiphan ESP0419 Specs | Inputs | Via the Included Brackets:
Video:
1 x S-Video
Resolution: 720 x 480
VGA Signaling: NTSC, PAL, SECAM
Color Resolution: 120 Lines horizontal
Audio:
2 x 1/4" L/R TRS Audio (balanced or unbalanced)
1 x 3.5 mm Audio line-in | | Operating System Support | Windows XP, Vista, 7, 8, 10
Mac OS X 10.4 and up (including PowerPC)
Linux | | Dimensions | S-Video Daughter Board:
1.4 x 1.4" (3.5 x 3.5 cm)
TRS Daughter Board:
1.8 x 2.5" (4.5 x 6.4 cm) | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 9.2 x 6.5 x 2.9" |
