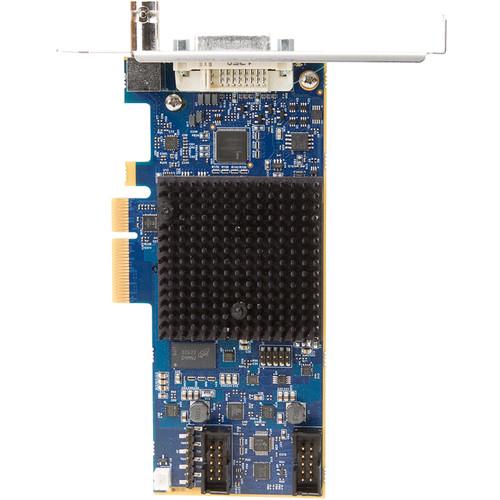

User Manual for Epiphan DVI2PCIe Duo PCIe x4 Video Capture Card with SDI and Dual-Link DVI Inputs Click to enlarge the picture
Contents of the user manual for the Epiphan DVI2PCIe Duo PCIe x4 Video
- Product category: Computer Hardware Epiphan
- Brand: Epiphan
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Epiphan Computer Hardware
|
User manual for the Epiphan DVI2PCIe Duo PCIe x4 Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Epiphan product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Epiphan user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Epiphan product will considerably shorten its lifespan!
|
Product description The DVI2PCIe Duo PCIe x4 Video Capture Card from Epiphan can capture lossless video from dual-link and single-link DVI sources, and VGA, HDMI, and SDI video sources, as well as audio from SDI and unencrypted HDMI sources. The card supports various resolutions up to 2048 x 2048, with different frame rates supported for each. Full HD 1080p resolution can be captured at up to 60 fps, 2048 x 2048 at 20 fps, and 1024 x 768 at 85 fps.
The DVI2PCIe provides uncompressed dual-channel video to 3rd-party recording, streaming, conferencing, and video analysis software applications running on Windows, Mac OS, or Linux platforms. It is suitable for AV professionals who capture and record production-quality video directly from SDI and DVI. The DVI2PCIe Duo Video Capture Card features a low-profile design and comes with a low-profile bracket for installation in 2U cases. Multi-Source Video Inputs - Designed to capture from digital and analog sources
- Built-in SDI input to capture video signals from 3G-SDI, HD-SDI, and SD-SDI sources and embedded audio from SDI sources
- Built-in DVI input to capture video signals from DVI, VGA, and HDMI sources and embedded audio from HDMI sources
Delivers High-Quality Output - Frame rate is independent of the captured content; both slow and fast moving videos are captured at the same rate
- Captures and transfers every pixel of the frame without any compression
Customize Your Recording - Company-related information, corporate color, and a time stamp can be added to identify your video
- Customizable color, style, and location on the screen where your information is displayed
Designed with Usability in Mind - Designed for AV professionals who require a PCIe card that fits into an existing desktop solution
- Easily fits into any PCIe x4 expansion slot
- Full and half-height installation options to suit your desktop configuration
- Multiple DVI2PCIe Duo cards are supported in the same system
Easy Integration with Multimedia Applications - Saves captured images and video in the most widely used video file formats – AVI files in Windows and MOV files in Mac OS
- Supports third party applications that accept an external video source such as Adobe Premiere, Windows Media Encoder, and others
- Integrates with Telestream, DirectShow, and QuickTime
Delivers Professional AV Quality - Captures high-quality video and images from sources with SDI/DVI/VGA/HDMI video output
- Captures uncompressed video and audio from 3G-SDI, HD-SDI, and SD-SDI signals at Full HD resolution at 60 fps
- Supports 60 fps at Full HD resolution in 24-bit color (4:4:4) even when capturing from both DVI and SDI channels simultaneously
- Supports 2048 x 2048 resolution for DVI signals
Flexible Recording Options - Ephiphan Capture Tool allows configuring recording parameters for images and video
- Captured images and video can be recorded as a series of consecutively saved graphics files or as a single video file
Capture Tool and Drivers - Epiphan Capture Tool provides a seamless interface to a wide range of industry standard encoding and streaming software
- Upgrades are free and the capture tool notifies you when a firmware upgrade is available
- Firmware upgrades from time to time ensure optimal performance
UPC: 748252057952 In the Box Epiphan DVI2PCIe Duo PCIe x4 Video Capture Card with SDI and Dual-Link DVI Inputs DVI Cable SDI Cable DVI-to-VGA Cable HDMI-to-DVI Adapter Low-Profile Bracket Limited 1-Year Warranty User Manual PDF 1.9mburvrqyzqbduexwfxwcfwuuwwavae Table of Contents
|
Upload User Manual
Have you got an user manual for the Epiphan DVI2PCIe Duo PCIe x4 Video Capture Card with SDI and Dual-Link DVI Inputs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEpiphan ESP0705 Specs | Interface | PCI Express 2.0; x4 | | Connector | 1 x SDI and 1 x dual-link DVI-I
HDMI via included adapter
VGA via included DVI-to-VGA cable | | Resolutions | VESA Modes: 320x240 to 2048x2048 (or 2560x1600)
Custom HDMI/VGA/DVI Modes: HDMI up to 1920x1200 | | VGA Signaling | 3G-SDI, HD-SDI, SD-SDI
Dual-link DVI
HDMI
R, G, B plus separate HSYNC and VSYNC signals
R, G, B plus CSYNC signal
R, G, B with Sync-on-Green synchronization | | Color Resolution | RGB16 (5:6:5), RGB24 (8:8:8), RGB8 (2:3:3), grayscale-256, YUY2, UYVY, YV12 | | EDID | EDIDs can be uploaded to the device | | Audio Input | SDI and HDMI audio | | Frame Rate / Resolution | 85 fps @ 640x480 / 720x480 / 800x600 / 1024x768 / 1280x720 / 1280x1024
60 fps @ 1920x1080 / 1920x1200
35 fps @ 2048x1536 (DVI)
30 fps @ 2048x1536 (VGA) / 2560x1600
20 fps @ 2048x2048 | | Buffer Memory | 128 MB RAM | | OS Support | Windows 7 and 8
Mac OS X 10.10
Linux
32- and 64-bit supported | | Maximum Operating Temperature | Internal: Up to 176°F (80°C)*
*Temperature accessed via the API | | Airflow Requirements | Minimum for Typical PC Environments: 140 LFM (0.7 m/s) | | Dimensions | Low-Profile Short Card: 5.5 x 2.53" (140 x 64 mm) | | | | Package Weight | 1.625 lb | | Box Dimensions (LxWxH) | 9.15 x 6.5 x 2.8" |
