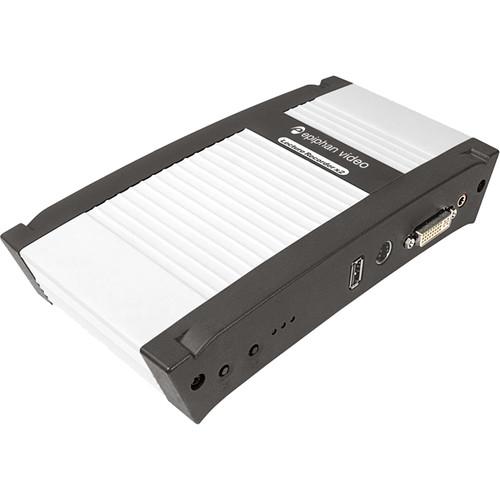

User Manual for Epiphan Lecture Recorder x2 Click to enlarge the picture
Contents of the user manual for the Epiphan Lecture Recorder x2
- Product category: Streaming Media Solutions Epiphan
- Brand: Epiphan
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Epiphan Streaming Media Solutions
|
User manual for the Epiphan Lecture Recorder x2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Epiphan product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Epiphan user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Epiphan product will considerably shorten its lifespan!
|
Product description Designed for classrooms and lecture halls, the Epiphan Lecture Recorder x2 captures, combines, and records full HD and SD video and audio from multiple sources such as document cameras, lecture cameras, tablets, or any device with a VGA, DVI, or HDMI output.
Using the Lecture Recorder x2 you can create a library of on-demand videos for presentation. Allowing you to get a little more elaborate, the Lecture Recorder x2 also lets you place two streams in a picture-in-picture layout customized with your logo so remote and offline viewers feel like they are present for the lecture. Recording control can be done locally by the lecturer or scheduled through Epiphan's HTTP or RS-232 APIs.
Lecture Recorder x2 captures an HD video signal from sources such as computer with slides, and then streams the content to standard Internet browsers and media players. The streaming content can also be recorded to internal storage and network storage. Lecture Recorder x2 is easy to setup and use -- it does not require the use of a computer or any additional equipment and works straight out of the box. Simply power it on, plug in your sources, and press the on-device button to start recording. A straightforward web interface is available for custom configuration. - Key Features
-
- Capture from screens or cameras at Full HD resolution
- Capture presentation camera, slides, and voice simultaneously
- Use it everywhere -- it's portable with no software to be installed
- DVI and S-Video inputs (VGA, HDMI, and Composite supported via included adapters; RGB Component supported via optional VGA adapter)
- Managed and controlled either locally or over a network
- Can be easily integrated with content management systems (CMS) and learning management systems (LMS) such as Blackboard, Kaltura, Mediasite, and Moodle
- Multi-Source Layouts with Branding
-
- Choose to display the video from one or both video sources, side-by-side or picture-in-picture
- Lecture Recorder x2 automatically scales inputs to match your configured layout settings
- Add your academic institution color as a background, your institution logo, and add meta data such as the date, time, and faculty name
- Overlay video with time stamp information and other text
- Upload a custom image to display when the channel does not have a signal or if your input signal is interrupted for any reason
- A/V Outputs and Network/Control Ports
-
- Lecture Recorder x2 has a DVI-I video output, 3.5mm stereo audio output, RJ-45 PoE port, and USB 2.0 port
- Built-in signal converters and output connectors provide pass-through for both DVI-I and audio input sources
- The video and audio pass-through ports provide a practical way to simultaneously display the lecture to a large lecture hall while it is recorded (this is done by simply connecting a speaker to the audio output port and connecting an HDMI, DVI, or VGA projector or monitor to the DVI output port)
- A/V Inputs
-
- Lecture Recorder x2 captures two video sources from room cameras, document cameras, smart boards, iPads, or any other source with HDMI, DVI, VGA, S-Video, and Composite output
- Audio input is provided through a 3.5mm analog stereo audio input
- DVI-I port is built to capture signals from DVI, HDMI, and VGA sources, while the S-Video port captures signals from S-Video and composite sources
- Streaming Protocols
-
- Lecture Recorder x2 supports a wide range of streaming formats and protocols enabling it to stream video to media players, Content Delivery Networks, and multicast networks using industry standard streaming formats including FLV, ASF, MJPEG, and via TCP/UDP using RTSP
- Supports Multicast Streaming via UDP using RTP, MPEG-TS RTP, and MPEG-TS and publishes to streaming servers (CDNs) via RTMP and RTSP
- Stream Using UPnP and SAP
-
- Media players, smart TVs, and set-top boxes can play live streams and saved recordings from the Lecture Recorder x2 via UPnP or SAP
- Streaming via UPnP and/or SAP is perfect for situations when the space in a lecture theatre is limited (the lecture can be streamed to other classroom locations on campus to handle student overflow)
- Video Encoding with H.264, MPEG-4, and MJPEG
-
- Lecture Recorder x2 supports widely used video codecs to ensure maximum compatibility with commercial viewing software media players such as VLC and Adobe Media Player
- Multi-encoding provides an optimal combination of settings to ensure your stream reaches your audience
- Use the default settings, or fine tune the operation to your application
- Video frame rate, encoding bit rate, and key frame interval are among several parameters available to tailor the encoding to your specific requirements
- Audio Encoding in MP3, AAC, and PCM
-
- Lecture Recorder x2 supports widely used audio codecs to ensure maximum compatibility with commercial viewing and post production software
- Use the default settings, or fine tune to meet your requirements
- Simultaneous Recording and Streaming
-
- Lecture Recorder x2 can simultaneously stream and record your content
- Admin interface indicates the amount of free storage space
- 16 GB of On-Board File Storage
-
- Stores the video files to an internal 16GB drive in .AVI and .MOV formats
- Automatically deletes the oldest recorded file when disk space runs low and replaces the file with a current file to ensure the latest recordings are available
- Manage the size of your recorded video files by configuring the Lecture Recorder x2 to start a new file based on a time or file-size limit (when the limit is reached, the current recorded file is closed and available for download while a new file is opened for continued recording -- all without missing a frame )
- Easy Access to External File Storage
-
- Store the files on the device itself, useful when you don't have access to a network or an external device (you can always download the files later)
- Transfer the recorded files to an external USB storage device or local network storage via FTP, RSYNC, or CIFS to ensure you don't run out of disk space on your device and facilitate 24/7 recording
- Configure automatic file transfer when a USB device is inserted
- Integrate easily with commercial content management systems
- Supported Aspect Ratios and Resolutions
-
- Supports 1080p HD video capture at 30 fps and resolutions up to 1920 x 1200
- Capture computer displays and live camera signals
- Convenient pick lists of standard resolutions in 4:3, 16:9, and 16:10 ratios make configuration and switching between various video input sources quick and easy (custom resolutions are also supported)
- Automatically Configures Frame Rate, Bit Rate, and Aspect Ratio
-
- The Lecture Recorder x2 analyzes your source stream and automatically uses the best possible frame size, bit rate, and aspect ratio for the output stream
- Changes to the input signal resolution and aspect ratio are automatically reflected in the output stream
- Automatic configuration is an option that can be enabled or disabled depending on your requirements
- Ready to Record Out of the Box
-
- Your Lecture Recorder x2 is configured and ready to record and stream your lecture as soon as it has power an Internet connection and an input signal
- Simply connect your camera, presentation content (on a laptop, iPad, etc.), and a microphone
- Lecture Recorder x2 encodes video and audio as they're captured and makes them stream-ready
- Use the on-device button or provided "Big Red Button" start/stop controller to start and stop recording
- Thoughtful Design
-
- Rugged yet lightweight and portable -- ideal for travel
- Slim profile allows it to inconspicuously be setup on the podium within reach of the lecturer and packed away into a laptop bag later
- Lecture Recorder x2 integrates video capturing, scaling, encoding, recording, and streaming into one simple device
- Power over Ethernet (PoE) eliminates the need for AC power connection; the device is powered directly over the Ethernet cable from a PoE capable network switch (a PoE injector is included with the product if you need it)
- Roughly the size of a paperback novel
- With no internal fans, or other moving parts, it is silent and reliable
- Control
-
- A web-based control interface provides local or remote configuration and operation of the recorder
- Once configured, recording may be stopped and started using a mouse or the "Big Red Button" start stop controller
- Integration with other systems is available via Epiphan HTTP and RS-232 APIs
- Connect your laptop directly to the recorder to enable local operation or place the recorder on a network to manage your operation from any web browser or tablet using a custom interface designed for touchscreen devices
- Perform basic operations like starting and stopping recordings, checking video signals, audio levels, and disk space from the mobile interface
- The Big Red Button controller provides simple start/stop control for recording and visual confirmation of whether recording is in progress
- The EpiphanConnect mobile application is available for both Android and iOS devices (this alternative to the desktop based discovery utility makes connecting to the touch screen friendly interface even easier by finding all Epiphan devices on the network)
UPC: 794504088502 In the Box Epiphan Lecture Recorder x2 "Big Red Button" Start/Stop Controller VGA to DVI-I Cable HDMI to DVI-I Adapter DVI-I to DVI-I Cable Composite to S-Video Cable 2 x Ethernet Cables Power over Ethernet Injector Limited 1-Year Warranty User Manual PDF 3.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Epiphan Lecture Recorder x2 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEpiphan ESP0446 Specs | Video Input | 1 x DVI (Convertible to HDMI or VGA using supplied adapters)
1 x S-Video (NTSC/PAL) (Convertible to Composite using supplied adapters)
*Component input requires optional VGA to Component adapters
*EDIDs can be uploaded to the device | | Resolutions | VESA Modes: 640 x 480 to 1920 x 1200
Custom resolutions | | HD Video Format Options | RGB plus separate HSync and VSync signals
RGB plus CSYNC signal
RGB with Sync-on-Green synchronization
DVI single link | | Audio Input | 1 x 1/8" (3.5 mm) stereo analog audio | | Audio Input Levels | Mic and line-in | | Video Output | 1 x DVI-I (pass-through)
*This output performs as a splitter/converter. Analog and Digital versions are always output with automatic D/A or A/D applied. | | Audio Output | 1 x 3.5 mm stereo audio | | Video Codec | H.264, MPEG-4, Motion JPEG | | Video Bit Rates | Configurable to up to 10 Mb/sec | | Key Frame Intervals | Programmable | | Color Resolution | YUV 4:2:0 | | Frame Size | Configurable to up to 1920 x 1200 | | Frame Rates | 30 fps at 1920 x 1080p (or smaller), 25 fps at 1920 x 1200 | | Audio Codec | MP3 at 32-192 kbps bit rate and 22/44 kHz frequencies
PCM at 22/44 kHz frequencies
AAC at 32-192 kbps bit rate and 16/22/44 kHz frequencies
G.711 at 8 kHz (a-Law) and 8 kHz (µ-Law) | | Network Interface | 1 x Ethernet RJ45 10/100 (PoE - spec: IEEE 802.3af class 0) | | Streams | FLV, ASF, and MJPEG over HTTP
RTSP over TCP/UDP
RTMP and RTSP for publishing to a streaming server or CDN | | Multicast Streams | RTP, MPEG-TS, and MPEG-TS/RTP over UDP | | Network Discovery / Announce | UPnP, SAP | | Internal Storage | 16 GB (solid state)
No recorded file size limits when configured with local or network attached storage, enabling 24/7 recording
Automatically removes oldest recordings from internal storage as space is required
File maintenance through admin interface (Web UI) | | Local Storage | Automatic copy to local USB drives via two USB 2.0 ports | | Network Storage | FTP server and FTP client capabilities (automatic and manual)
Copy to USB drive (automatic and manual)
RSYNC/CIFS synchronization | | Playback and Recorded Formats | Download recorded videos (AVI, MPEG-TS, or MOV) using the Web UI and playback through any compatible player | | Administration | Web UI allows for full administrative capabilities; includes multiple user roles (admin, operator, and viewer)
Included API for integration into existing environments (executed via HTTP or RS-232); RS-232 API integration requires a USB to RS-232 adapter (not included) | | Time Synchronization | NTP, TIME (RFC 868), PTP v1 (IEEE-1588-2002 V1) | | Dimensions | 8 x 4.1 x 1.4" (20 x 10.5 x 3.5 cm) | | Weight | 1.4 lb (0.64 kg) | | | | Package Weight | 3.95 lb | | Box Dimensions (LxWxH) | 12.2 x 8.9 x 2.5" |
