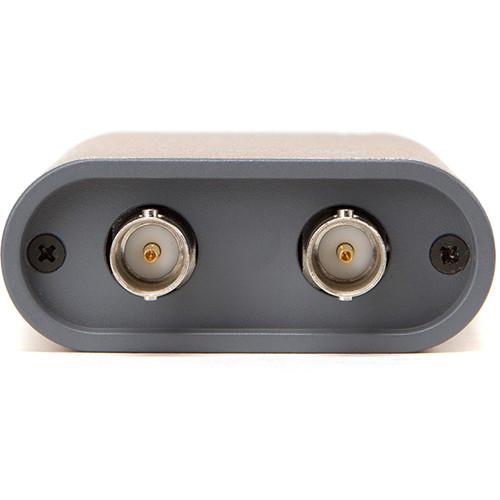

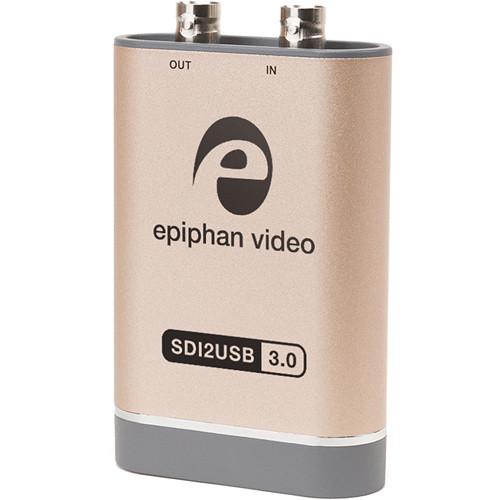

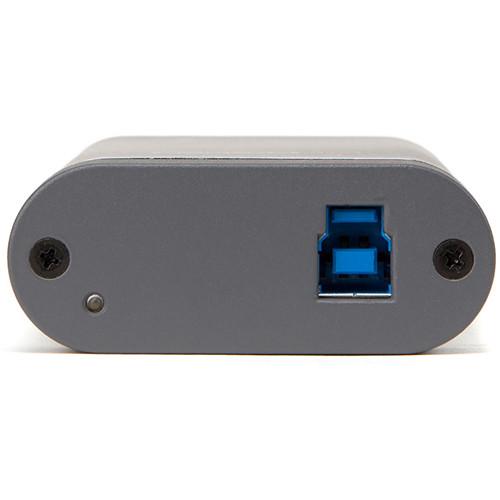

User Manual for Epiphan SDI2USB 3.1 Gen 1 3G-SDI Video Capture Device Click to enlarge the picture
Contents of the user manual for the Epiphan SDI2USB 3.1 Gen 1 3G-SDI
- Product category: Computer Hardware Epiphan
- Brand: Epiphan
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Epiphan Computer Hardware
 |
User manual for the Epiphan SDI2USB 3.1 Gen 1 3G-SDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Epiphan product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Epiphan user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Epiphan product will considerably shorten its lifespan!
|
Product description Record an uncompressed 3G, HD, or SD-SDI video feed from a camcorder, switching console, or deck with your computer with the Epiphan SDI2USB 3.0 3G-SDI Video Capture Device. Using a USB 3.0 connection, you can record 1920 x 1080 resolution video at up to 60 fps without the need for separate programs or drivers.
The SDI2USB uses the utilities built into your computer like Telestream, DirectShow, and QuickTime to record video in the format of your choosing. The SDI2USB 3.0 is backwards compatible with USB 2.0, however, due to the lower bandwidth; it requires the video to be compressed by the capture device before it is transmitted to the computer. Regardless of the connection type, the capture device is bus powered and does not require an external power source. For confidence monitoring of your input signal, the SDI2USB 3.0 includes an additional SDI connection which mirrors the input signal. Key Features - Record an uncompressed 3G/HD/SD-SDI video feed from a camcorder, switching console, or deck with your computer
- Using a USB 3.0 connection, record up to 1920 x 1080 resolution video at up to 60 fps
- Interfaces with multiple third party applications compatible with DirectShow on Windows, Video4Linux on Linux, QuickTime on Mac OS X
UPC: 748252939036 In the Box Epiphan SDI2USB 3.1 Gen 1 3G-SDI Video Capture Device USB 3.0 Cable 3G-SDI Cable Limited 1-Year Warranty User Manual PDF 1.4mbuddzwwqztxefxtedzbdrbyvwbqffyxxx Table of Contents
|
Upload User Manual
Have you got an user manual for the Epiphan SDI2USB 3.1 Gen 1 3G-SDI Video Capture Device in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEpiphan ESP0657 Specs | Input | 1 x 3G/HD/SD-SDI | | Video Sampling | RGB and YUV (YCbCr) color formats including RGB24, YU2, and I420 | | Supported Resolutions | Up to 1920 x 1200
Supports standard and custom resolutions | | Frame Rates | 720 x 480: 60 fps
1280 x 720: 60 fps
1920 x 1080: 60 fps | | Audio Support | SDI Audio: 16-bit PCM encoded audio at 32, 44.1, or 48 kHz sampling rates | | Operating System Support | Windows 7/8/10, Mac OS X 10.10+, Linux | | Dimensions | 3.5 x 2.4 x 0.9" / 90 x 60 x 23 mm | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 9.3 x 6.5 x 2.8" |
