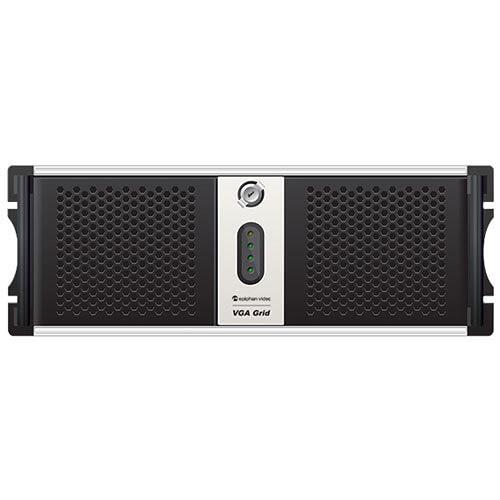

User Manual for Epiphan Standalone 4-Card VGA Grid Click to enlarge the picture
Contents of the user manual for the Epiphan Standalone 4-Card VGA Grid
- Product category: Streaming Media Solutions Epiphan
- Brand: Epiphan
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Epiphan Streaming Media Solutions
|
User manual for the Epiphan Standalone 4-Card VGA Grid contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Epiphan product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Epiphan user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Epiphan product will considerably shorten its lifespan!
|
Product description The Epiphan Standalone 4-Card VGA Grid is designed to synchronize, capture, record, and stream audio and video for directly connected sources. This 4-card version features one SDI (HD), one DVI (HD), and one S-Video (SD) input in each of the 4 included DL cards, totaling 12 total video inputs. The HD inputs support up to 2048 x 2048 resolution sources (2560 x 1600 widescreen). This 4-card version also features 5 3.5mm audio inputs that can be used mic or line level. - Key Features
-
- 4-Card capture at 2K resolutions (2048 x 2048 or 2560 x 1600 widescreen)
- Each card has 1 SDI, 1 DVI, and S-Video port (and supports VGA, HDMI, and Composite via included adapters, and Component input via optional VGA-to-Component adapter)
- Stream 8 channels of HD video
- Synchronize and time-stamp streams
- Control and operate locally or remotely from anywhere on the same network
- Support for simultaneous streaming clients or publishing to CDNs
- Create multi-source layouts with backgrounds and logos
- Upload custom EDIDs
- Can be easily integrated with content management systems (CMS) and learning management systems (LMS) such as Blackboard, Kaltura, Mediasite, and Moodle
- Multi-Source Layouts with Branding
-
- Choose to display the video from one or multiple video sources; you can choose the size and placement of each source
- VGA Grid automatically scales inputs to match your configured layout settings
- Add a customized background with your company logo, the date, time, and any other information you want to add to the screen
- Overlay video with time-stamp information and other text
- Upload a custom image to display when the channel does not have a signal or if your input signal is interrupted for any reason
- You can choose to simultaneously stream your video content to diverse viewers with customized layouts and delivery methods to suit each viewer
- Each stream can have multiple encoding settings to suit various delivery methods and viewing destinations
- Configuration Presets
-
- Configuration presets let you save any quantity and combination of configuration groups into a reusable preset
- Create a configuration preset for each situation in which you use your VGA Grid
- Save time and ensure accuracy when configuring VGA Grid in each new location
- A special factory default configuration preset helps you return to original factory configuration without permanently erasing files saved to the system hard drive
- A/V Outputs and Network/Control Ports
-
- VGA Grid has an RJ-45 Ethernet port, three USB 2.0 ports, and one RS-232 port
- A/V Inputs
-
- The 4-card system features 5 audio inputs as either mic or line level
- 4 SDI, 4 DVI, 4 S-Video inputs
- VGA, HDMI, and Composite inputs supported via included adapters
- Component input supported via optional VGA-to-Component adapter
- Streaming Protocols
-
- Supports a wide range of live streaming formats and protocols enabling it to stream video to media players, CDNs, and multicast networks using industry standard streaming formats including (HTTP, FLV, ASF, MJPEG), and via TCP/UDP using RTSP and HLS
- Supports multicast streaming via UDP using RTP, MPEG-TS RTP, and MPEG-TS, and publishes to streaming servers (CDNs) via RTMP and RTSP
- Multi-encoding functionality can eliminate the need for a transcoding service
- Stream Using UPnP and SAP
-
- Media players, smart TVs, set-top-boxes, digital signs etc. can play live streams and saved recordings from the VGA Grid via UPnP or SAP
- Streaming via UPnP and/or SAP is ideal for situations when the destination device is unattended (for example, when VGA Grid streams to a digital sign that continuously plays a video, the live stream resume feature automatically resumes the stream if there is an interruption
- VGA Grid's processor lets you stream to many set top boxes/smart TVs simultaneously without sacrificing video quality
- Video Encoding with H.264, MPEG-4, and MJPEG
-
- VGA Grid supports widely used video codecs to ensure maximum compatibility with commercial viewing software media players such as VLC and Adobe Media Player
- Multi-encoding features such as video frame rate, encoding bit rate, and key frame internal are among several parameters to ensure your stream reaches your audience
- Use the default settings, or fine tune the operation to your application
- Whether you are recording highly dynamic full motion video or slowly changing instrumentation displays, VGA Grid enables you to direct the encoder to achieve optimal video quality while satisfying bit rate and file size constraints of your specific application and environment
- MP3, AAC, and PCM Audio Encoding
-
- VGA Grid supports widely used audio codecs to ensure maximum compatibility with commercial viewing software
- Use the default settings, or fine tune to meet your requirements
- Encode in stereo or mono with bit rates up to 320 kbps
- Record While Streaming
-
- VGA Grid is capable of recording the streaming output
- Store the video files to a hard drive, with 6 TB of storage (storage upgrades available), in AVI, MP4, MPEG-TS, or MOV format
- Admin interface indicates the amount of free storage space
- Manage the size of your recorded video files by configuring the VGA Grid to start a new file based on a time or file-size limit (when the limit is reached, the current recorded file is closed and available for download while a new file is opened for continued recording -- all without missing a frame
- Easy Access to External File Storage
-
- Access files quickly at Gigabit Ethernet speeds
- Store the files on the device itself, useful when you don't have access to a network or an external device (you can always download the files later)
- Transfer the recorded files to an external USB storage device or local network storage via SFTP, SCP, FTP, RSYNC, or CIFS to ensure you don't run out of disk space on your device and facilitate 24/7 recording
- Configure automatic file transfer when a USB device is inserted
- Integrate easily with commercial content management systems
- Supported Aspect Ratios and Resolutions
-
- The input signal resolution and aspect ratio are automatically reflected in the output stream
- Supports 1080p HD video capture at 30 fps and resolutions up to 2048 x 2048
- Capture computer displays and live camera signals
- Convenient pick lists of standard resolutions in 4:3, 16:9, and 16:10 ratios make configuration and switching between various video input sources quick and easy (custom resolutions are also supported)
- Automatically Configures Frame Rate, Bit Rate, and Aspect Ratio
-
- The VGA Grid analyzes your source stream and automatically uses the best possible frame size, bit rate, and aspect ratio for the output stream
- Changes to the input signal resolution and aspect ratio are automatically reflected in the output stream
- Automatic configuration is an option that can be enabled or disabled depending on your requirements
- File Redundancy and Fault Tolerance
-
- Networked VGA Grid can be optionally configured with storage in a RAID array
- A networked VGA Grid supports RAID 10, when 4 disks are configured
- Thoughtful Design
-
- Easily fits into any standard rackmount cabinet
- AC power can easily be fed through the equipment rack
- Control
-
- A web-based control interface enables local and remote configuration and operation
- Integration with other systems is available via Epiphan HTTP and RS-232 APIs
- Monitor your VGA Grid on-the-go with a mobile device or tablet using a custom interface designed for touch screen devices
- Perform basic operations like checking video signals, audio levels, starting and stopping recordings, and disk space from the mobile interface
- The EpiphanConnect mobile application is available for both Android and iOS devices (this alternative to the desktop based discovery utility makes connecting to the touchscreen friendly interface even easier by finding all Epiphan devices on the network
In the Box Epiphan Standalone 4-Card VGA Grid 4 x VGA to DVI-I Cables 4 x HDMI to DVI-D Adapter 4 x DVI-I to DVI-I Cables 4 x SDI to SDI Cables 4 x Composite to S-Video Cables Ethernet Cable Limited 1-Year Warranty Standalone VGA Grid User's Guide PDF 6.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Epiphan Standalone 4-Card VGA Grid in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEpiphan ESP0468 Specs | Video Input | 4 x SDI
4 x DVI (Convertible to HDMI / VGA using supplied adapters)
4 x S-Video (Convertible to Composite using supplied adapters) | | Resolutions | VESA Modes: 640 x 480 to 2048 x 2048
Custom resolutions | | HD Video Format Options | RGB plus separate HSync and VSync signals
RGB plus CSYNC signal
RGB with Sync-on-Green synchronization
DVI dual link | | Audio Input | 5 x 1/8" (3.5 mm) stereo analog audio | | Audio Input Levels | Mic and line-in | | Video Codec | H.264, MPEG-4, Motion JPEG | | Video Bit Rates | Configurable to up to 10 Mb/sec | | Key Frame Intervals | Programmable | | Color Resolution | RGB 24 bits per pixel | | Frame Size | Configurable to up to 2048 x 2048 (2560 x 1600 for widescreen) | | Frame Rates | 30 fps at 1920 x 1080p, 10 fps at 2048 x 2048 | | Audio Codec | MP3 at 64-192 kbps bit rate and 22/44/48 kHz frequencies
PCM at 22/44/48 kHz frequencies
AAC at 64-192 kbps bit rate and 16/22/44/48 kHz frequencies | | Network Interface | 1 x Ethernet RJ45 10/100 (PoE - spec: IEEE 802.3af class 0) | | Streams | FLV, ASF, and MJPEG over HTTP
RTSP over TCP/UDP
RTMP and RTSP for publishing to a streaming server or CDN
HLS (Native Apple HTTP stream for iPad, iPhone, and iPod Touch) | | Multicast Streams | RTP, MPEG-TS, and MPEG-TS/RTP over UDP | | Network Discovery / Announce | UPnP, SAP | | Internal Storage | 6 TB configurable to up to 24 TB or 12 TB RAID or with SSD options up to 4 TB or 2 TB RAID
No recorded file size limits when configured with local or network attached storage, enabling 24/7 recording
Automatically removes oldest recordings from internal storage as space is required
File maintenance through admin interface (Web UI) | | Local Storage | Automatic copy to local USB drives via 6 USB 2.0 ports | | Network Storage | FTP server and FTP client capabilities (automatic and manual)
SFTP/SCP/RSYNC/CIFS synchronization | | Playback and Recorded Formats | Download recorded videos (AVI, MP4, MPEG-TS, or MOV) using the Web UI and playback through any compatible player | | Administration | Web UI allows for full administrative capabilities; includes multiple user roles (admin, operator, and viewer)
Included API for integration into existing environments (executed via HTTP or RS-232); Creston/AMX ready | | Time Synchronization | NTP, TIME (RFC 868), PTP v1 (IEEE-1588-2002 V1) | | Dimensions | 4 U rackmount
17.5 x 16.9 x 6.9" (45 x 43 x 18 cm) | | Weight | Approx. 40 lb (18 kg) | | | | Package Weight | 57.3 lb | | Box Dimensions (LxWxH) | 23.6 x 21.9 x 11.6" |
