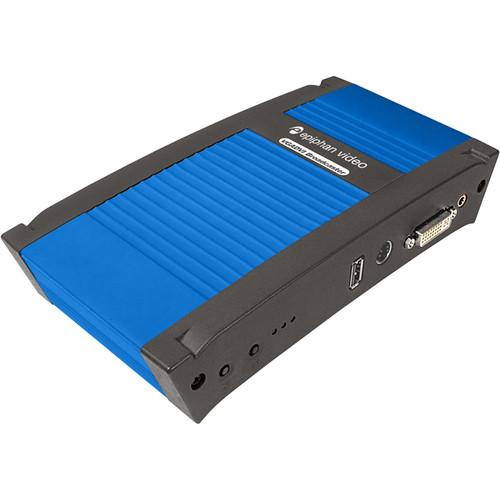

Product description The Epiphan VGADVI Broadcaster captures, combines, records, and streams audio, Full HD video, and SD video. This quiet, portable recording and streaming device can stream directly to a handful of viewers or reach a broad audience via multicast or a content distribution network (CDN). The VGADVI Broadcaster can also provide content to your set-top boxes and digital signs via UPnP and SAP network announce protocols.
The VGADVI Broadcaster captures HD video from sources such as computer monitors, RADAR displays, or ultrasound monitors, as well as SD video signals such as from a camera feed. The VGADVI Broadcaster can stream these sources as two synchronized, time-stamped streams or a multi-source layout with customized branding. Streams can be remotely accessed through web browsers, media players, mobile devices, or set-top boxes. Streams can be recorded to local storage and downloaded at a later date. The VGADVI Broadcaster is easy to setup and use, and works straight out of the box. Once configured, it does not require the use of a computer or any additional equipment -- simply power it on to start encoding and streaming. - Key Features
-
- Capture from screens or cameras at Full HD resolution
- Stream while recording
- Manage and control either locally or over a network
- Capture presentation camera, slides, and voice simultaneously
- DVI and S-Video inputs (supports VGA, HDMI, and Composite via included adapters / RGB Component via optional adapter)
- Use it everywhere -- it's portable with no software to install
- Stream directly to set-top boxes, smart TVs, and electronic signs via MPEG-TS
- Two video input channels (1 HD, 1 SD)
- Single stream or independent streaming and recording
- Choose to display the video from one or both video sources, and display the video side-by-side or picture-in-picture
- VGADVI Broadcaster automatically scales inputs to match your configured layout settings
- Add your corporate color as a background and your company logo, the date, time, and presenter name
- Overlay video with time stamp information and other text
- Upload a custom image to display when the channel does not have a signal or if your input signal is interrupted for any reason
- Can be easily integrated with content management systems (CMS) and learning management systems (LMS) such as Blackboard, Kaltura, Mediasite, and Moodle
- A/V Outputs & Network/Control Ports
-
- DVI-I video output, 3.5mm stereo audio output, RJ-45 PoE port, and USB 2.0 port
- Built-in signal converters and output connectors provide pass through for both DVI-I and audio input sources
- Connect a headset to the audio output port to monitor the audio input for quality
- Connect HDMI, DVI, or VGA projectors and displays to the DVI-I port to monitor the DVI-I input source
- A/V Inputs
-
- VGADVI Broadcaster captures two video sources from HDMI, DVI, VGA, S-Video, and Composite video at their native resolutions and frame rates
- Audio input is provided through a 3.5mm analog stereo audio input
- Streaming Protocols
-
- VGADVI Broadcaster supports a wide range of live streaming formats and protocols enabling it to stream video to media players, Content Delivery Networks, and multicast networks using industry standard streaming formats including FLV, ASF, MJPEG, and via TCP/UDP using RTSP
- Supports Multicast Streaming via UDP using RTP, MPEG-TS RTP, MPEG-TS and publishes to streaming servers (CDNs) via RTMP and RTSP
- Stream using UPnP and SAP
-
- Media players, smart TVs, set-top boxes, digital signs etc. can play live streams and saved recordings from the VGADVI Broadcaster via UPnP or SAP
- Streaming via UPnP and/or SAP is ideal for situations when the destination device is unattended (For example, when VGADVI Broadcatser streams to a digital sign that continuously plays a video, the live stream resume feature automatically resumes the stream if there is an interruption
- H.264, MPEG-4, and MJPEG Video Encoding
-
- VGADVI Broadcaster supports widely used video codecs to ensure maximum compatibility with commercial viewing software media players such as VLC and Adobe Media Player
- Choose codecs to help you maximize your stream quality while minimizing the demand for system resources and bandwidth
- Use the default settings, or fine tune the operation to your application
- Video frame rate, encoding bit rate, and key frame interval are among several parameters available to tailor the encoding to your specific requirements
- Whether you are recording highly dynamic full motion video or slowly changing instrumentation displays Epiphan Broadcasters enable you to direct the encoder to achieve optimal video quality while satisfying bit-rate and file size constraints of your specific application and environment
- MP3, AAC, and PCM Audio Encoding
-
- VGADVI Broadcaster supports widely used audio codecs to ensure maximum compatibility with commercial viewing software
- Use the default settings, or fine tune to meet your requirements
- Record while Streaming
-
- VGADVI Broadcaster can record the streaming output
- Stores the video files to an internal solid state memory, with 8 GB of storage, in AVI, MPEG-TS, or MOV format (common and easy to use formats)
- Automatically deletes the oldest recorded file when disk space runs low and replaces the file with a current file to ensure the latest recordings are available
- Manage the size of your recorded video files by configuring the VGADVI Broadcaster to start a new file based on a time or file-size limit (when the limit is reached, the current recorded file is closed and available for download while a new file is opened for continued recording -- all without missing a frame)
- Easy Access to External File Storage
-
- Store the files on the device itself -- this is useful when you don't have access to a network or an external device, and you can always download the files later
- You can transfer the recorded files to an external USB storage device or local network storage via FTP, RSYNC, or CIFS to ensure you don't run out of disk space on your device and facilitate 24/7 recording
- Configure automatic file transfer when a USB device is inserted
- Integrate easily with commercial content management systems
- Supported Aspect Ratios and Resolutions
-
- Supports 1080p HD video capture at 30 fps and resolutions up to 1920 x 1200
- Capture computer displays and live camera signals
- Convenient pick lists of standard resolutions in 4:3, 16:9, and 16:10 ratios make configuration and switching between various video input sources quick and easy (custom resolutions are also supported)
- Automatically Configure Frame Rate, Bit Rate, and Aspect Ratio
-
- The VGADVI Broadcaster analyzes your source stream and automatically uses the best possible frame size, bit-rate, and aspect ratio for the output stream
- Changes to the input signal resolution and aspect ratio are automatically reflected in the output stream
- Automatic configuration is an option that can be enabled or disabled depending on your requirements
- Ready to Stream Out of the Box
-
- Your VGADVI Broadcaster is configured and ready to record and stream live as soon as it has power and internet connection and an input signal
- VGADVI Broadcaster encodes video and audio as it's captured and makes it stream-ready
- A URL is generated as soon as a source is detected
- Viewers only need to access the URL and they can instantly view the video
- Thoughtful Design
-
- VGADVI Broadcaster integrates video capturing, scaling, encoding, recording, and streaming, into one simple device
- Rugged yet lightweight design is ideal when moving from office to boardroom, or anywhere you need to capture and stream video
- Power over Ethernet (PoE) eliminates the need for AC power connection; the device is powered directly over the Ethernet cable from a PoE capable network switch (a PoE injector is included if you need it)
- Roughly the size of a paperback novel
- With no internal fans, or other moving parts, it is silent and reliable
- Monitor On-the-Go
-
- Monitor your VGADVI Broadcaster on the go with a mobile device or tablet using a custom interface designed for touch screen devices
- Perform basic operations like checking video signals, audio levels, starting and stopping recordings, and disk space from the mobile interface
- The EpiphanConnect mobile application, available for Android and iOS, is an alternative to the desktop based discovery utility, designed to make connecting to the touchscreen interface even easier by finding all Epiphan devices on the network
UPC: 713757705912 In the Box Epiphan VGADVI Broadcaster VGA to DVI-I Cable HDMI to DVI-I Adapter DVI-I to DVI-I Cable Composite to S-Video Cable 2 x Ethernet Cables Power over Ethernet Injector Limited 1-Year Warranty User Manual PDF 12.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Epiphan VGADVI Broadcaster in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEpiphan ESP0440 Specs | Video Input | 1 x DVI (Convertible to HDMI or VGA using supplied adapters)
1 x S-Video (NTSC/PAL) (Convertible to Composite using supplied adapters)
*Component input requires optional VGA to Component adapters
*EDIDs can be uploaded to the device | | Resolutions | VESA Modes: 640 x 480 to 1920 x 1200
Custom VGA/DVI modes | | HD Video Format Options | RGB plus separate HSync and VSync signals
RGB plus CSYNC signal
RGB with Sync-on-Green synchronization
DVI single link | | Audio Input | 3 x 1/8" (3.5 mm) stereo analog audio | | Audio Input Levels | Mic and line-in | | Video Output | 1 x DVI-I (pass-through)
*This output performs as a splitter/converter. Analog and Digital versions are always output with automatic D/A or A/D applied. | | Audio Output | 1 x 3.5 mm stereo audio | | Video Codec | H.264, MPEG-4, Motion JPEG | | Video Bit Rates | Configurable from 100 - 9999 kbit/sec | | Key Frame Intervals | Programmable | | Color Resolution | YUV 4:2:0 | | Frame Size | Configurable to up to 1920 x 1200 | | Frame Rates | 30 fps at 1920 x 1080p (or smaller), 25 fps at 1920 x 1200 | | Audio Codec | MP3 at 32-192 kbps bit rate and 22/44 kHz frequencies
PCM at 22/44 kHz frequencies
AAC at 32-192 kbps bit rate and 16/22/44 kHz frequencies
G.711 at 8 kHz (a-Law) and 8 kHz (µ-Law) | | Audio Channels | 1 stereo channel | | Network Interface | 1 x Ethernet RJ45 10/100 (PoE - spec: IEEE 802.3af class 0) | | Streams | FLV, ASF, and MJPEG over HTTP
RTSP over TCP/UDP | | Multicast Streams | RTP, MPEG-TS, and MPEG-TS/RTP over UDP | | Publish to Streaming Server / CDN | RTMP, RTSP | | Network Discovery / Announce | UPnP, SAP | | Internal Storage | 8 GB (solid state)
No recorded file size limits when configured with local or network attached storage, enabling 24/7 recording
Automatically removes oldest recordings from internal storage as space is required
File maintenance through admin interface (Web UI) | | Local Storage | Automatic copy to local USB drives via two USB 2.0 ports | | Network Storage | FTP server and FTP client capabilities (automatic and manual)
Copy to USB drive (automatic and manual)
RSYNC/CIFS synchronization | | Playback and Recorded Formats | Download recorded videos (AVI, MPEG-TS, or MOV) using the Web UI and playback through any compatible player | | Administration | Web UI allows for full administrative capabilities and includes multiple user accounts/passwords
Included API for integration into existing environments (executed via HTTP or RS-232); RS-232 API integration requires a USB to RS-232 adapter (not included) | | Time Synchronization | NTP, TIME (RFC 868), PTP v1 (IEEE-1588-2002 V1) | | Dimensions | 8 x 4.1 x 1.4" (20 x 10.5 x 3.5 cm) | | Weight | 1.4 lb (0.64 kg) | | | | Package Weight | 3.965 lb | | Box Dimensions (LxWxH) | 12.3 x 9.05 x 2.7" |
