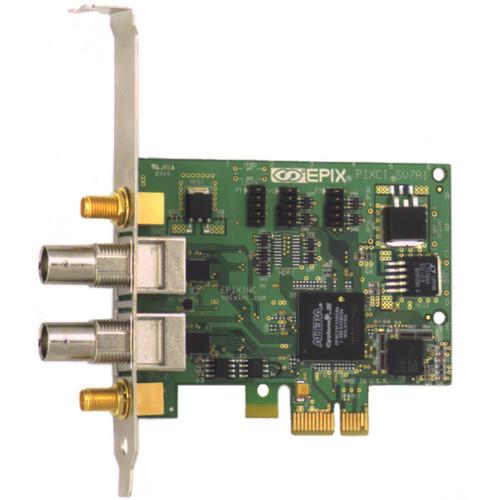

User Manual for EPIX PIXCI SV7 Dual Composite Video PCI Express Bus Frame Grabber Click to enlarge the picture
Contents of the user manual for the EPIX PIXCI SV7 Dual Composite Video
- Product category: Computer Hardware EPIX
- Brand: EPIX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EPIX Computer Hardware
|
User manual for the EPIX PIXCI SV7 Dual Composite Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EPIX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EPIX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EPIX product will considerably shorten its lifespan!
|
Product description The EPIX PIXCI SV7 Dual Composite Video Bus Frame Grabber offers dual independent BNC inputs for the PCI Express bus. A low-profile bracket is sold separately if required.
The PIXCI SV7 digitizes analog video from one or two standard composite video cameras (NTSC, RS-170, PAL, or CCIR). The two inputs are independent, allowing capture of different resolutions, frame rates, and video formats. Digitized video is transferred to the PCI Express bus at video rate. As a PCIe bus master, the PIXCI SV7 board transfers image data without using the host computer's processor. Images may be transferred, at full or reduced frame rates, to a computer memory for processing and/or analysis by the host computer's processor(s), or to other targets on the PCI Express bus.
The PIXCI SV7 has two BNC jacks for composite video input. Live video from both cameras may be displayed on the computer's monitor at the same time. Programmable gain, hue, brightness, saturation, and contrast adjustments can condition the video signal. SMA connectors provide TTL Trigger In and Strobe Out. In one computer, up to four PIXCI SV7 boards can capture video at the same time from up to 8 video sources.
The XCAP-Lite imaging program, provided with the PIXCI SV7, provides independent capture and adjusts dialogs for each of the two inputs. If the two video sources (cameras) use the same format and if their video outputs are to be captured with the same settings, then one capture and adjust dialog provides common control. Choose the XCAP-Ltd program (sold separately) for extra display features, extended sequence capture up to 8GB of memory, and convenient saving of captured sequences to the hard drive. Choose the XCAP-Std (sold separately) program for maximum capture, display, and save capabilities (including direct video-to-disk capture) combined with extensive processing, measurement, and analysis features.
Programmer's libraries (XCLIB) and image processing subroutines (PXIPL) are sold separately for solving the most difficult particle tracking, machine vision measurement, inspection, image sequence analysis, and flow analysis tasks. - Capture from one or two cameras
- Camera video formats: NTSC, RS-170, PAL or CCIR
- 250 Mb/s PCI Express Burst data transfers
- Plug into any PCI Express slot
- Sequence Capture at full camera frame rate
- Triggered image sequence capture
- 64-bit Memory addressing for extended data capture
- Images captured to computer memory, uncompressed, lossless
- Standard or low profile bracket (sold separately)
- Windows and Linux, 32 and 64-bit
In the Box EPIX PIXCI SV7 Dual Composite Video PCI Express Bus Frame Grabber Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EPIX PIXCI SV7 Dual Composite Video PCI Express Bus Frame Grabber in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEPIX PIXCI-SV7 Specs | Connections | 2 x BNC Jacks: Composite video inputs
2 x SMA Connectors: Trigger input and strobe output, common to both units
2 x 10-pin Headers: Trigger input, strobe output, (2 general purpose outputs & inputs, cables sold separately) | | Bus | 1 x PCI Express or wider slot
356 mA at 3.3 V, 91.3 mA at 12 V (2.27 W total) | | Operating temperature | 32 to 158° F (0 to 70°C) Note: Extended temperature range sold separately. | | Software Supported | XCAP-Lite (included); XCAP-Ltd, XCAP-Std, XCLIB, and XCLIBIPL (sold separately) | | Compatibility | 32-bit & 64-bit Windows 8, 7, Vista, XP, 2000, LINUX, and 32-bit DOS
Also TWAIN and Image-Pro compatible. | | Dimensions (L x H) | 3.45 x 2.71" (8.76 x 6.89 cm)(low profile) | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 9.1 x 8.6 x 1.4" |
