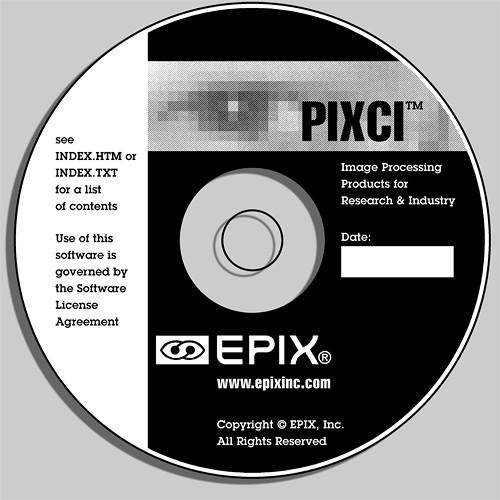

User Manual for EPIX XCLIB-Lite Programming Library for Windows 95, 98, ME 32-Bit Click to enlarge the picture
Contents of the user manual for the EPIX XCLIB-Lite Programming Library for Windows
- Product category: Video Editing EPIX
- Brand: EPIX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EPIX Video Editing
|
User manual for the EPIX XCLIB-Lite Programming Library for Windows contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EPIX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EPIX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EPIX product will considerably shorten its lifespan!
|
Product description The XCLIB-Lite Programming Library for Windows 95, 98, ME 32-Bit from EPIX is a limited version of the full XCLIB software for building applications. Like with the full version, XCLIB-Lite can be used with multiple PIXCI frame grabbers, but it allows selecting and operating only one board at a time, as opposed to your choice of multicamera operation or independent capture.
Like the full XCLIB software, XCLIB-Lite provides Simple C Functions (SCF) for snapping images, capturing sequences, and dual buffer (ping-pong) capture, as well as for reading and writing single or blocks of RGB or monochrome pixel values. However, it's limited to these features and does not offer the "structured" interface, bit depth conversions, optional color space conversions to HSB and YUV/YCrCb, nor reading/writing only a single color component of RGB. For Bayer pattern cameras, XCLIB-Lite does provide the same demosaicked, color-corrected, white-balanced, and gamma-corrected ready-to-use RGB pixel data as XCLIB, but does not provide access to raw Bayer data.
XCLIB-Lite allows up to 64 MB of frame buffer memory but does not provide "pointer" access to frame buffers. It can't be used with the PXIPL Image Processing and Analysis Library. Use of video setup configuration files is supported, but the file cannot be compiled into the application. If this limited version works for you, you may want to benefit from its economical advantage. If you will need the full-feature set at a later time, you can upgrade to the full version of XCLIB, and programs written in XCLIB-Lite will be upward-compatible. PIXCI Compatibility - Use with Multiple, Operate One
- XCLIB-Lite can be used with multiple PIXCI frame grabbers, but it allows selecting and operating only one frame grabber at a time.
- Operate Half or Quarter
- When used with the following PIXCI models, XCLIB-Lite allows operating only one functional half, or quarter, respectively, of a selected frame grabber:
PIXCI E1DB, E4DB, E4G2-2F, E4TX2-2F, E8DB, e104x4-2f, E8CAM, ECB2, EL1DB, ELS2, SI2, SV7, E4G2-F2B, E4TX2-F2B, e104x4-f2b, E4G2-4B, E4TX2-4B, e104x4-4b, and SI4. - Import Video Setup File
- For the following PIXCI frame grabbers, when used with a camera outside of free-run mode, XCLIB-Lite allows importing a video setup file specifying the exposure, frame/line period, and other camera control parameters, but it does not allow altering these parameters via function calls (however, for SILICON VIDEO cameras, XCLIB-Lite provides the same camera-specific functions and features as the full XCLIB software):
PIXCI A, D, D24, D2X, D3X, D3XE, CL1, CL2, CL3SD, E1, E1DB, E4, E4DB, E4G2-2F, E4G2-4B, E4G2-F2B, E4TX2-2F, E4TX2-4B, E4TX2-F2B, E8, E8DB, e104x4-2f, e104x4-4b, e104x4-f2b, EB1, EB1mini, EB1-PoCL, EC1, ECB1, ECB1-34, ECB2, EL1, and EL1DB. Table of Contents
|
