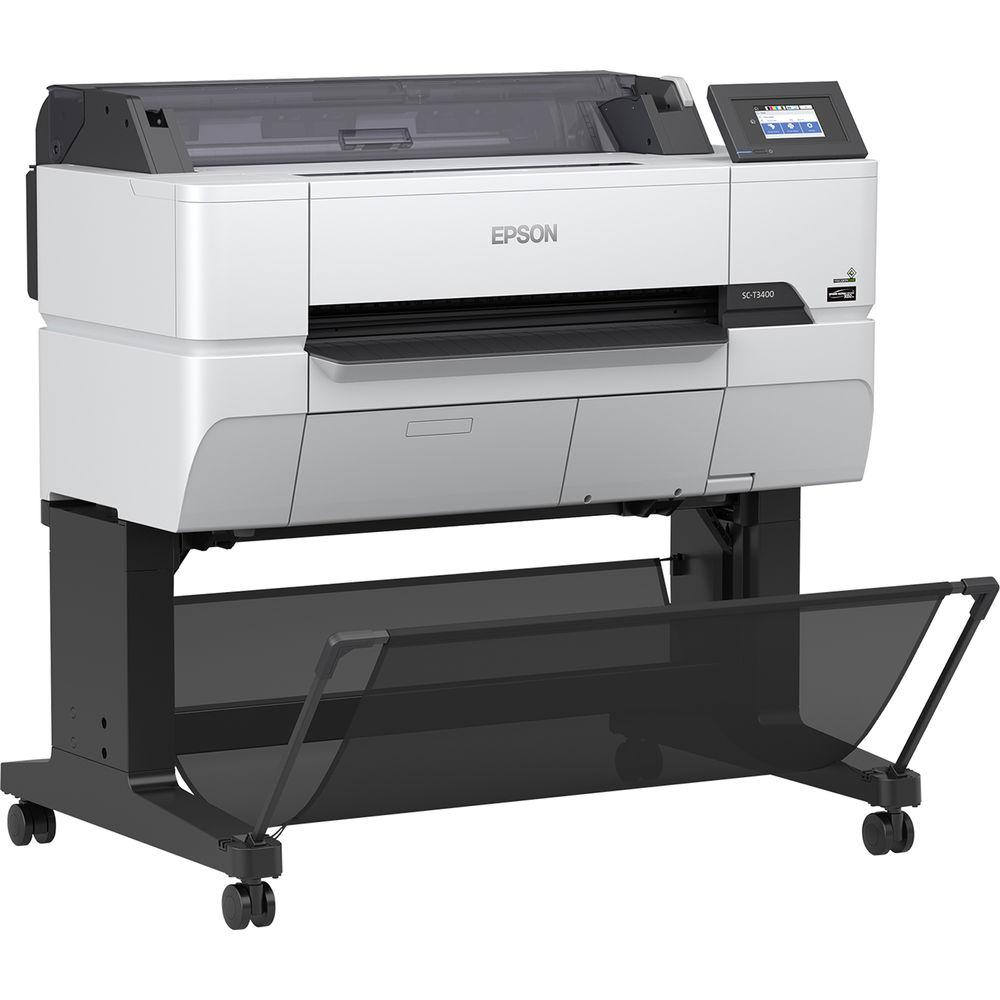

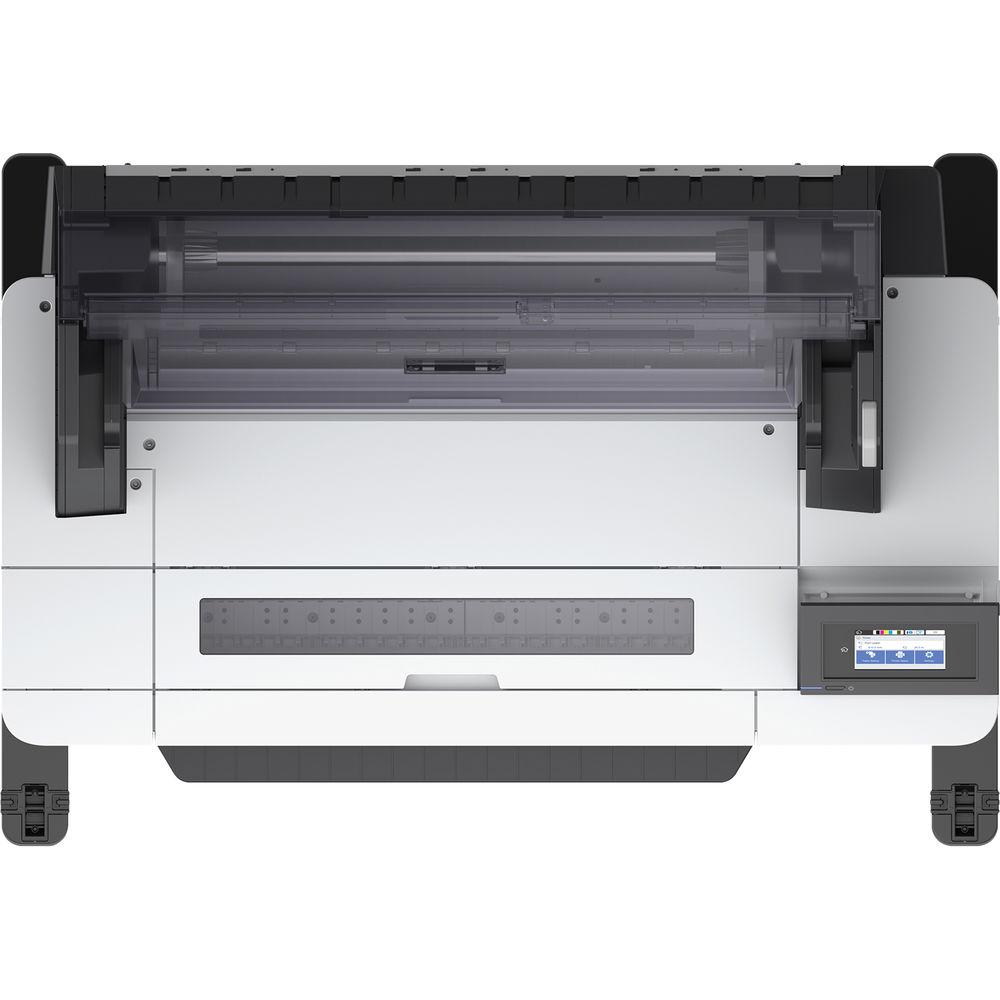

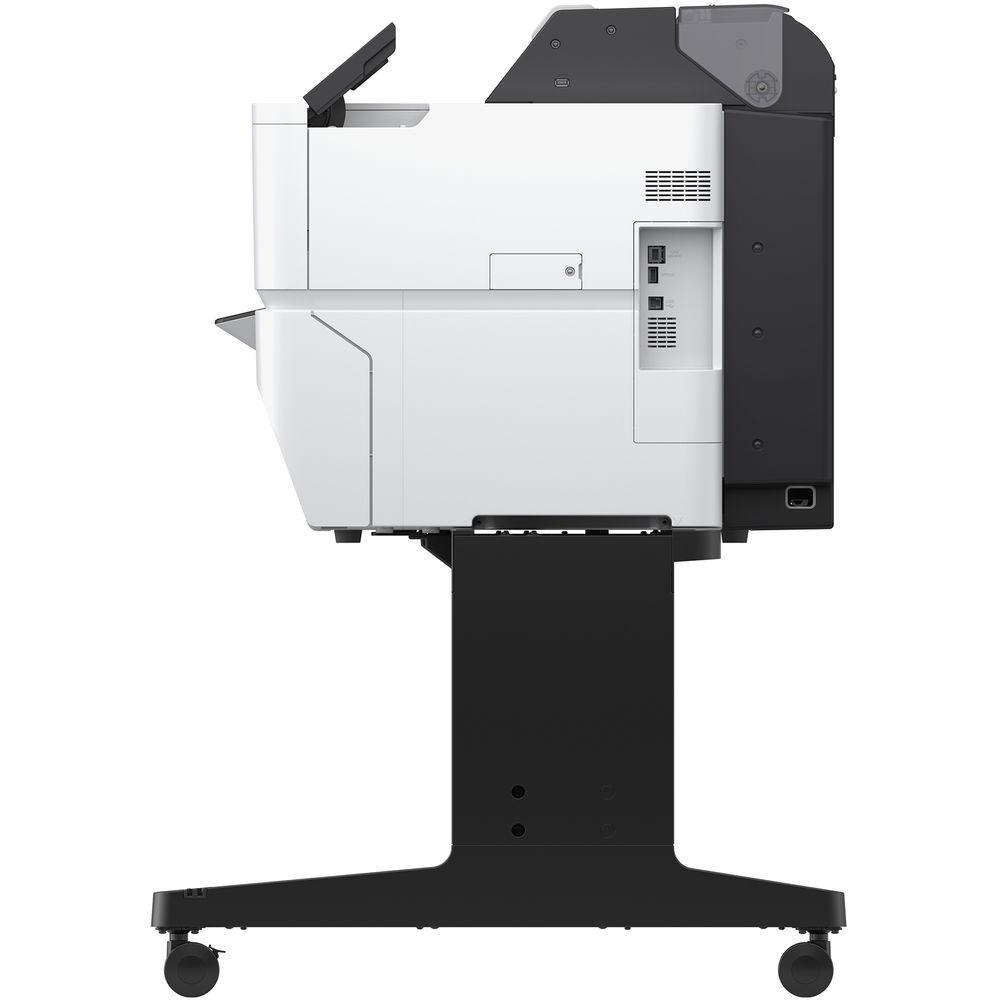

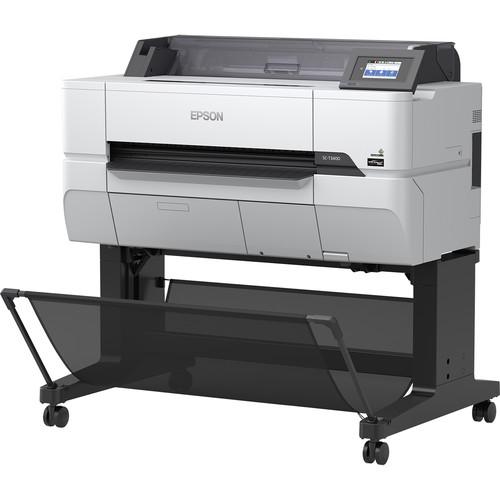

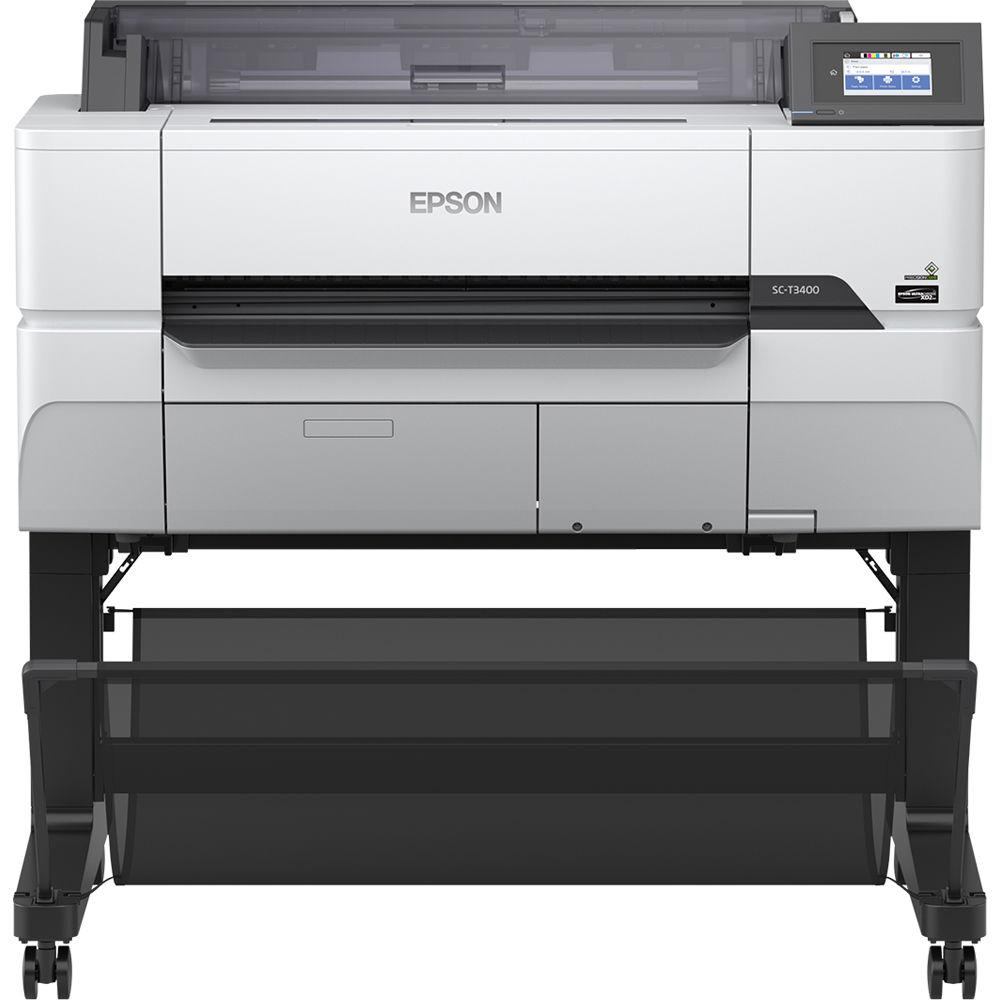

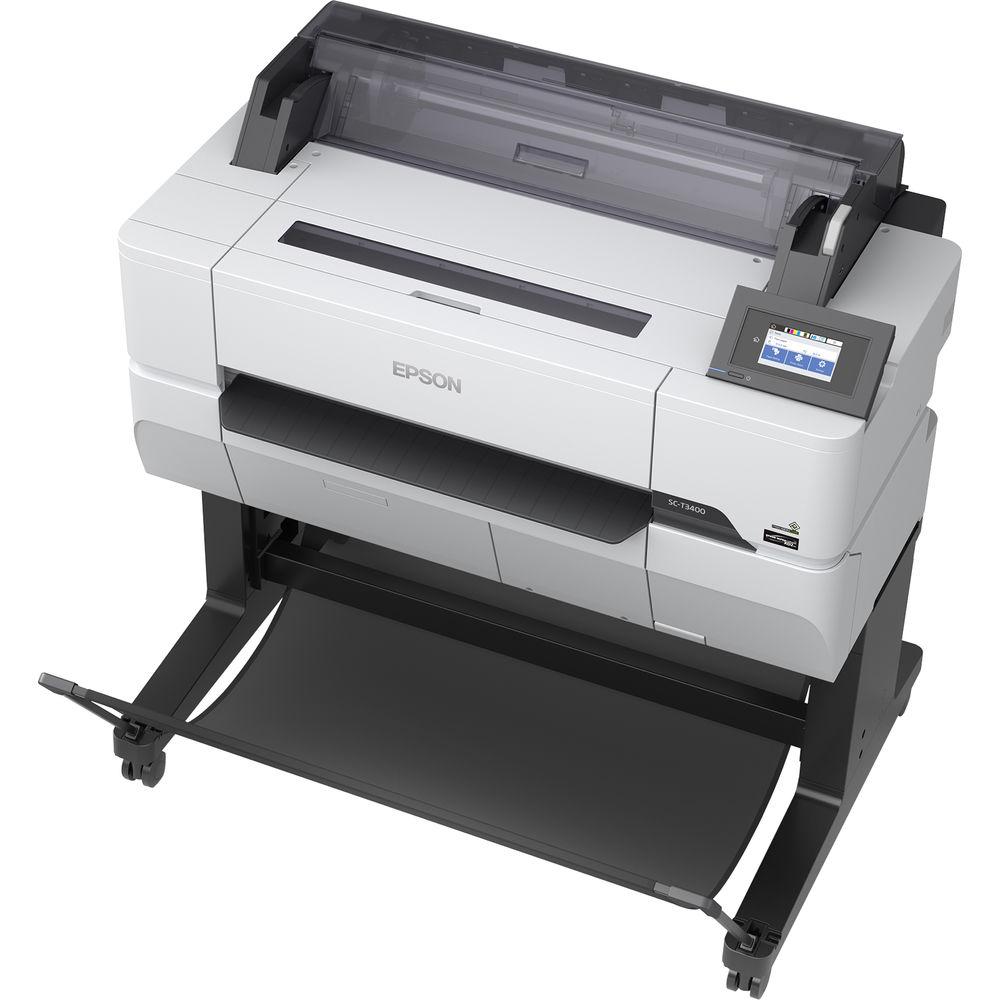

Product description Able to produce precise 24" wide prints at a max resolution of 2400 x 1200 dpi, the Epson 24" SureColor T3470 Large Format Printer is capable of producing blueprints, line drawings, and posters. The T3470 is also quite fast, able to print an A1/D-sized 22 x 34" plot in just 25 seconds. Versatility is also key with handling of media up to 11.8 mil thick as well as either cut-sheet or roll media with 2" or 3" cores. The SureColor T-series utilizes an UltraChrome XD2 pigmented ink set to deliver vivid color and sharp lines on numerous paper types. The system also enables the creation of archival prints that are smudge and water resistant. The cartridges are front-loading for convenience and come in sizes up to 350mL. The 4.3" touchscreen is located on the front of the printer. The T3470 also comes with a stand that has a horizontal catch basket for handling your finished print, and the printer can easily connect to your computer via USB 3.1 Gen 1, Wi-Fi, or Ethernet. Features - Produce accurate A1/D-sized (22 x 34") prints in 25 seconds
- Use the large, intuitive 4.3" LCD color touchscreen for print tasks
- Use high-capacity replacement ink cartridges up to 350mL for less downtime
- Protect important information with advanced network security and encryption features
- Easily print from tablets, smartphones, and more with integrated wireless, plus router-free Wi-Fi Direct printing
- The PrecisionCore MicroTFP printhead offers Precision Droplet Control for photographic images, precise lines, and sharp text
- Standard warranty includes one-year of on-site service, free phone support Monday through Friday, as well as parts and labor
UPC: 010343945432 In the Box Epson 24" SureColor T3470 Large Format Printer Full Set of Cyan, Magenta, Yellow, and Black Ink Cartridges (110mL) AC Power Cable Limited 1-Year Warranty More info from Epson Table of Contents
|
Upload User Manual
Have you got an user manual for the Epson 24" SureColor T3470 Large Format Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEpson T3470 Specs | | | Printing Technology | Inkjet | | Ink Type | Pigment Based | | Ink Color | 1 x Cyan
1 x Magenta
1 x Yellow
1 x Black | | Compatible Ink Cartridges | Epson T41 | | Number of Cartridges | 4 Individual Cartridges | | Number of Nozzles | 800 Nozzles (Per Channel) | | Print Resolution | 2400 x 1200 dpi | | Borderless Printing | Yes | | Minimum Ink Droplet Size | 4 pL | | Print Speed (By Size) | 22.01 x 34.02" / 55.9 x 86.4 cm: 25 Seconds | | Printer Language | ESC/P-R, HP-GL/2, HP-RTL | | | | Paper Handling | Manual Feed, Roll Feed | | Media Roll Diameter | 2.0" / 5.1 cm (Core)
3.0" / 7.6 cm (Core)
6.6" / 16.8 cm (Outer) | | Media Width | 10.0 to 24.0" / 25.4 to 61.0 cm (Roll)
8.3 to 24.0" / 21.1 to 61.0 cm (Sheet) | | Media Thickness | 11.8 mil / 0.3 mm | | Margins | 0.1" / 3.0 mm | | | | Interface | USB 3.0, Wi-Fi, Ethernet | | Operating System Support | Windows, macOS/OS X | | | | Control Panel | 4.3" / 10.9 cm LCD | | AC Input Power | 110 to 240 VAC, 50 / 60 Hz | | Power Consumption | Printer
34 W (Maximum)
13 W (Ready)
1.3 W (Sleep)
0.25 W (Standby) | | Max Acoustic Noise | 50 dBA | | Operating Humidity | 45 to 60% (Recommended)
20 to 80% | | Operating Temperature | 65 to 75°F / 18 to 23°C (Recommended)
50 to 95°F / 10 to 35°C | | Storage Humidity | 5 to 85% | | Storage Temperature | -4 to 104°F / -20 to 40°C | | Dimensions (W x H x D) | 43.0 x 30.0 x 42.0" / 109.2 x 76.2 x 106.7 cm (with Stand) | | Weight | 141.0 lb / 64.0 kg (with Stand) | | | | Package Weight | 212.5 lb | | Box Dimensions (LxWxH) | 46.5 x 37.0 x 32.0" |
