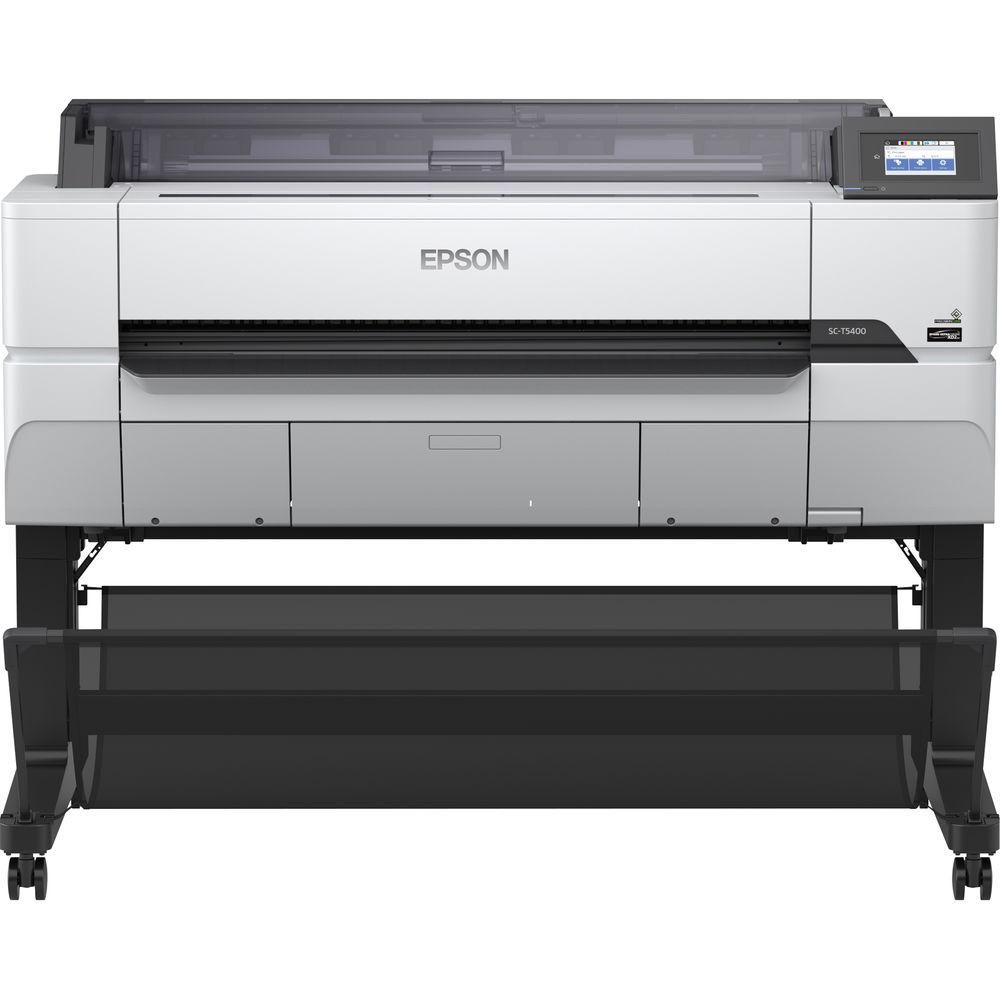

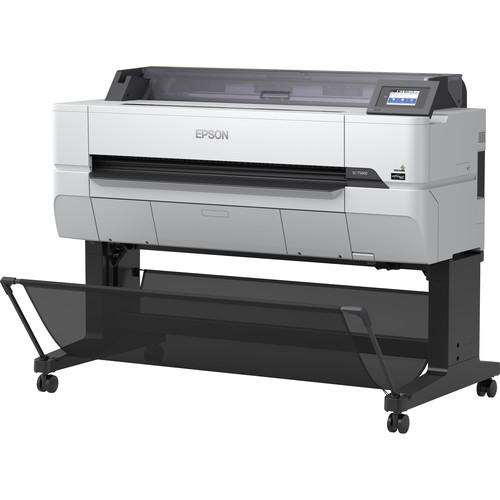

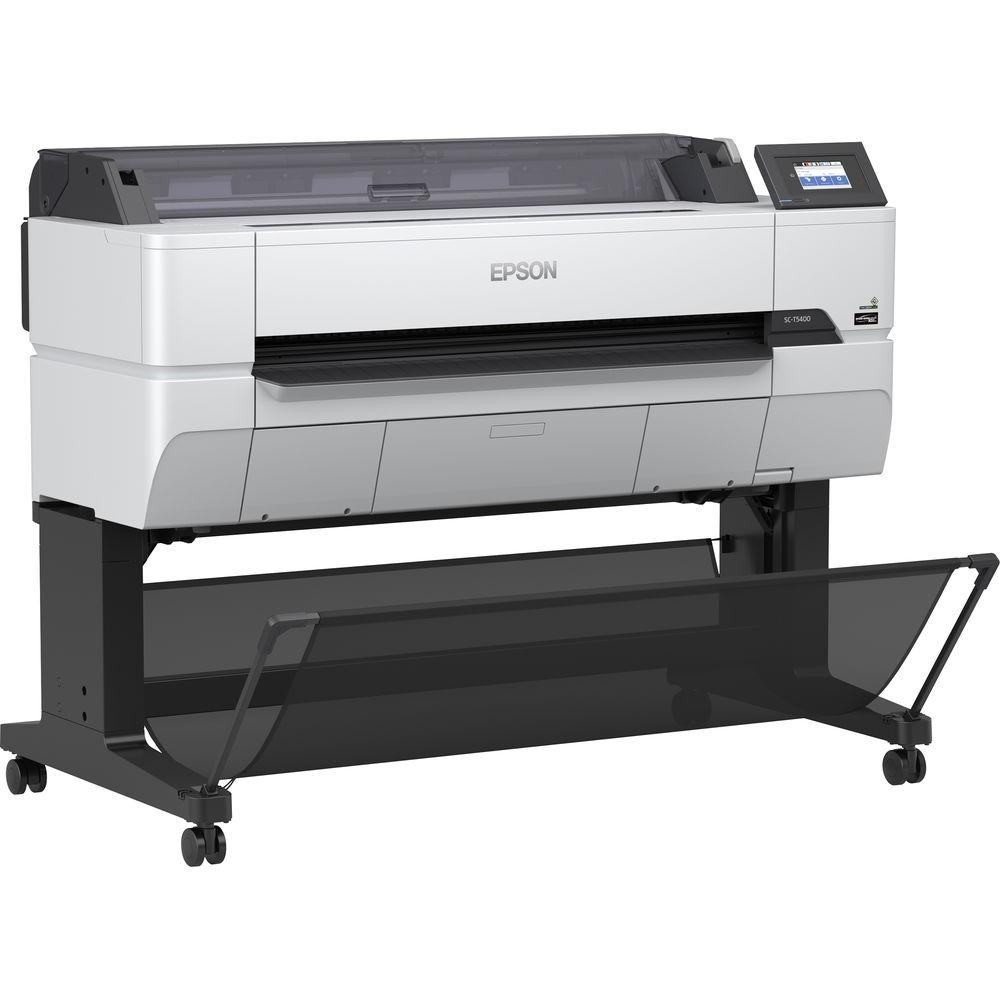

User Manual for Epson 36" SureColor T5470 Large Format Printer Click to enlarge the picture
Contents of the user manual for the Epson 36" SureColor T5470 Large Format
- Product category: Large Format Printers Epson
- Brand: Epson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Epson Large Format Printers
 |
User manual for the Epson 36" SureColor T5470 Large Format contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Epson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Epson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Epson product will considerably shorten its lifespan!
|
Product description Able to produce precise 36" wide prints at a max resolution of 2400 x 1200 dpi, the Epson 36" SureColor T5470 Large Format Printer is capable of producing blueprints, line drawings, and posters. The T5470 is also quite fast, able to print a D-sized 22 x 34 print in just 22 seconds. Versatility is also key with handling of media up to 11.8 mil thick as well as either cut-sheet or roll media with 2" or 3" cores and maximum outer diameter of 6.6". The SureColor T-series utilizes an UltraChrome XD2 pigmented ink set to deliver vivid color and sharp lines on numerous paper types. The system also enables the creation of archival prints that are smudge and water resistant. The cartridges are front-loading for convenience and come in sizes up to 350mL. A 4.3" touchscreen is located on the front of the printer, and the T5470 also comes with a stand that has a horizontal catch basket for handling your finished print. Additionally, the printer can easily connect to your computer via USB 3.1 Gen 1, Wi-Fi, or Ethernet. Features - Produce accurate A1/D-sized (22 x 34") prints in 22 seconds
- Use the large, intuitive 4.3" LCD color touchscreen for print tasks
- Use high-capacity replacement ink cartridges up to 350mL for less downtime
- Protect important information with advanced network security and encryption features
- Easily print from tablets, smartphones, and more with integrated wireless, plus router-free Wi-Fi Direct printing
- The PrecisionCore MicroTFP printhead offers Precision Droplet Control for photographic images, precise lines, and sharp text
- Standard warranty includes one-year of on-site service, free phone support Monday through Friday, as well as parts and labor
UPC: 010343945449 In the Box Epson 36" SureColor T5470 Large Format Printer Full Set of Cyan, Magenta, Yellow, and Black Ink Cartridges (110mL) AC Power Cable Limited 1-Year Warranty More info from Epson Table of Contents
|
Upload User Manual
Have you got an user manual for the Epson 36" SureColor T5470 Large Format Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEpson T5470 Specs | | | Printing Technology | Inkjet | | Ink Type | Pigment Based | | Ink Color | 1 x Cyan
1 x Magenta
1 x Yellow
1 x Black | | Compatible Ink Cartridges | Epson T41 | | Number of Cartridges | 4 Individual Cartridges | | Number of Nozzles | 800 Nozzles (Per Channel) | | Print Resolution | 2400 x 1200 dpi | | Borderless Printing | Yes | | Minimum Ink Droplet Size | 4 pL | | Print Speed (By Size) | 22.01 x 34.02" / 55.9 x 86.4 cm: 22 Seconds | | Printer Language | ESC/P-R, HP-GL/2, HP-RTL | | | | Paper Handling | Manual Feed, Roll Feed | | Media Roll Diameter | 2.0" / 5.1 cm (Core)
3.0" / 7.6 cm (Core)
6.6" / 16.8 cm (Outer) | | Media Width | 10.0 to 36.0" / 25.4 to 91.4 cm (Roll)
8.3 to 36.0" / 21.1 to 91.4 cm (Sheet) | | Media Thickness | 11.8 mil / 0.3 mm | | Margins | 0.1" / 3.0 mm | | | | Interface | USB 3.0, Wi-Fi, Ethernet | | Operating System Support | Windows, macOS/OS X | | | | Control Panel | 4.3" / 10.9 cm LCD | | AC Input Power | 110 to 240 VAC, 50 / 60 Hz at 2.8 A | | Power Consumption | Printer
38 W (Maximum)
13 W (Ready)
1.3 W (Sleep)
0.25 W (Standby) | | Max Acoustic Noise | 50 dBA | | Operating Humidity | 45 to 60% (Recommended)
20 to 80% | | Operating Temperature | 65 to 75°F / 18 to 23°C (Recommended)
50 to 95°F / 10 to 35°C | | Storage Humidity | 5 to 85% | | Storage Temperature | -4 to 104°F / -20 to 40°C | | Dimensions (W x H x D) | 55.0 x 28.0 x 42.0" / 139.7 x 71.1 x 106.7 cm (with Stand) | | Weight | 168.0 lb / 76.2 kg (with Stand) | | | | Package Weight | 286.0 lb | | Box Dimensions (LxWxH) | 58.5 x 37.0 x 32.0" |
